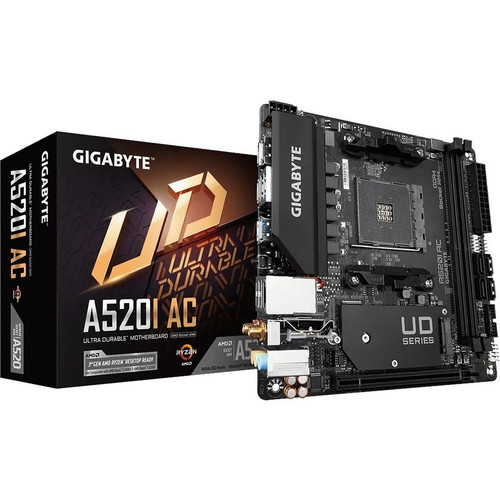

GIGABYTE Ultra Durable A520I AC Desktop Motherboard - AMD A520 Chipset - Socket AM4 - Mini ITX - Ryzen 3, Ryzen 5, Ryzen 7, Ryzen 9, 3 (A520I AC)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Chipset Manufacturer: AMD
Chipset Model: A520
Total Processor Supported: 1
Processor Socket: Socket AM4
Processor Supported: Ryzen 3,Ryzen 5,Ryzen 7,Ryzen 9,Ryzen 3 PRO,Ryzen 5 Pro,Ryzen 7 PRO,Ryzen 9 PRO
Number of Memory Slots: 2
Memory Form Factor: DIMM,UDIMM
Maximum Memory Supported: 64 GB
Memory Speed Supported: 2133 MHz,2400 MHz,2667 MHz,2933 MHz,3200 MHz,3333 MHz,3600 MHz,4000 MHz,4400 MHz,4600 MHz,4866 MHz,5000 MHz,5100 MHz,5200 MHz,5300 MHz
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0,1,10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Bluetooth: Yes
Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11a/b/g/n/ac
Total Number of Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 1 Ports: 4
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 4
Number of Onboard USB 2.0 Ports: 2
Number of Onboard USB 3.2 Ports: 2
Form Factor: Mini ITX
Width: 6.69" (170 mm)
Depth: 6.69" (170 mm)
Country of Origin: China
- Compatible Ryzen 3 processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- Supported 0 RAID levels provide data reliability and fault tolerance
- Enjoy the freedom of Wi-Fi and connect devices faster
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Mini ITX form factor builds a perfect symmetry of hardware components needed in media server or NAS box
- 2 USB 2.0 ports offer the impressive data transfer speed of up to 60 Mb/sec
[custom-specifications]
| Specifications | |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | A520I AC |
| Manufacturer Website Address | http://www.gigabyte.com |
| Brand Name | GIGABYTE |
| Product Line | Ultra Durable |
| Product Model | A520I AC |
| Product Name | Ultra Durable A520I AC (rev. 1.x) Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | A520 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM4 |
| Processor Supported | Ryzen 3,Ryzen 5,Ryzen 7,Ryzen 9,Ryzen 3 PRO,Ryzen 5 Pro,Ryzen 7 PRO,Ryzen 9 PRO |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 2133 MHz,2400 MHz,2667 MHz,2933 MHz,3200 MHz,3333 MHz,3600 MHz,4000 MHz,4400 MHz,4600 MHz,4866 MHz,5000 MHz,5100 MHz,5200 MHz,5300 MHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Total Number of PCI Express Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 1 |
| Total Number of Onboard USB Ports | 4 |
| Number of Onboard USB 2.0 Ports | 2 |
| Number of Onboard USB 3.2 Ports | 2 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.69" (170 mm) |
| Depth | 6.69" (170 mm) |
| Miscellaneous | |
| Country of Origin | China |
[/custom-specifications]
