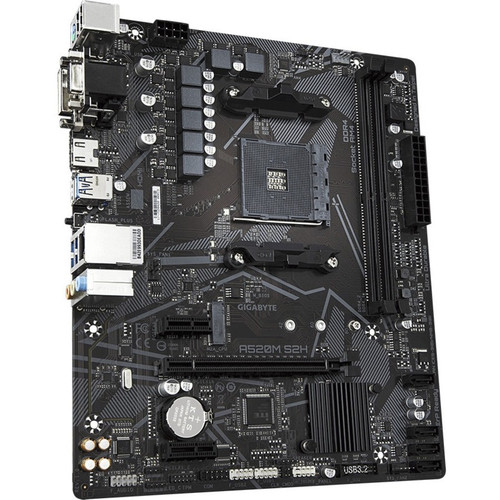

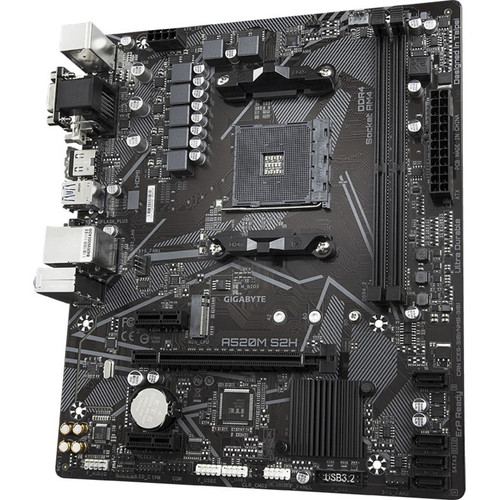

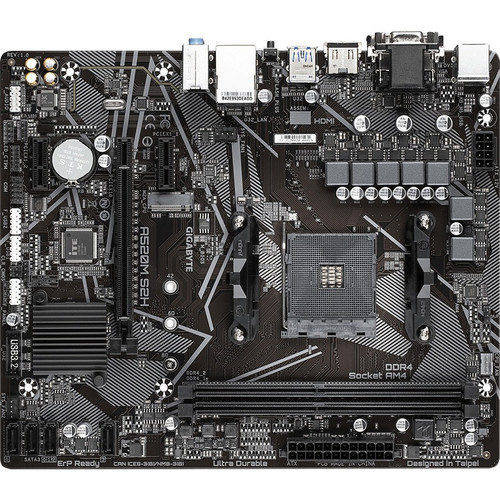

GIGABYTE Ultra Durable A520M S2H Desktop Motherboard - AMD A520 Chipset - Socket AM4 - Micro ATX - 64 GB DDR4 SDRAM Maximum RAM - - 2 (A520M S2H)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Chipset Manufacturer: AMD
Chipset Model: A520
Total Processor Supported: 1
Processor Socket: Socket AM4
Processor Supported: Ryzen 3,Ryzen 5,Ryzen 7,Ryzen 9,Ryzen 3 PRO,Ryzen 5 Pro,Ryzen 7 PRO,Ryzen 9 PRO
Number of Memory Slots: 2
Memory Form Factor: DIMM,UDIMM
Maximum Memory Supported: 64 GB
Memory Speed Supported: 2133 MHz,2400 MHz,2667 MHz,2933 MHz,3200 MHz,3333 MHz,3600 MHz,4000 MHz,4400 MHz,4600 MHz,4866 MHz,5000 MHz,5100 MHz
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0,1,10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
Total Number of Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 2
Number of USB 3.2 Ports: 4
VGA: Yes
HDMI: Yes
DVI: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 2
Form Factor: Micro ATX
Width: 9.61" (244 mm)
Depth: 8.07" (205 mm)
Country of Origin: China
- Compatible Ryzen 3 processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Supported 0 RAID levels provide data reliability and fault tolerance
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Micro ATX desktop motherboard
- With 2 USB 2.0 ports, transfer several documents without error
[custom-specifications]
| Specifications | |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | A520M S2H |
| Manufacturer Website Address | http://www.gigabyte.com |
| Brand Name | GIGABYTE |
| Product Line | Ultra Durable |
| Product Model | A520M S2H |
| Product Name | Ultra Durable A520M S2H (rev. 1.0) Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | A520 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM4 |
| Processor Supported | Ryzen 3,Ryzen 5,Ryzen 7,Ryzen 9,Ryzen 3 PRO,Ryzen 5 Pro,Ryzen 7 PRO,Ryzen 9 PRO |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 2133 MHz,2400 MHz,2667 MHz,2933 MHz,3200 MHz,3333 MHz,3600 MHz,4000 MHz,4400 MHz,4600 MHz,4866 MHz,5000 MHz,5100 MHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 1 |

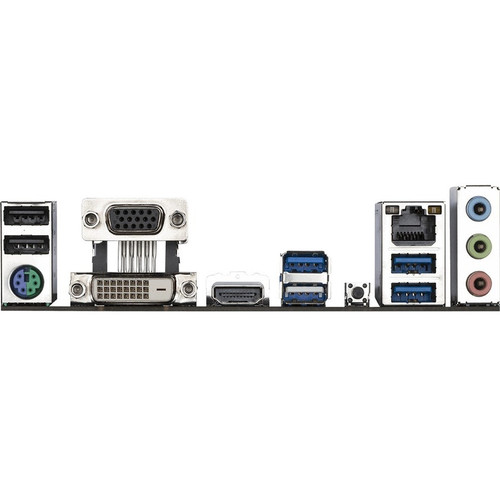

| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Ports | 4 |
| VGA | Yes |
| HDMI | Yes |
| DVI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 1 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of Onboard USB 3.2 Ports | 2 |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.61" (244 mm) |
| Depth | 8.07" (205 mm) |
| Miscellaneous | |
| Country of Origin | China |
[/custom-specifications]
