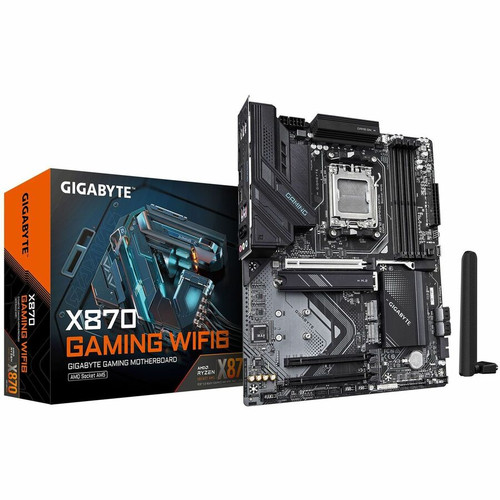

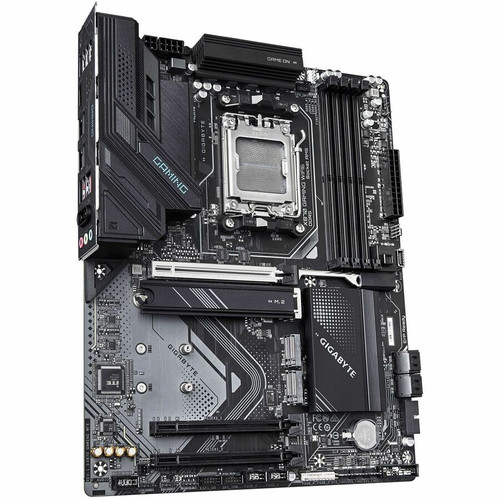

Gigabyte Ultra Durable GAMING WIFI6 ATX Motherboard AMD Socket Chipset Desktop X870 GAMING WIFI6 X870 GAMING WIFI6 X870 GAMING WIFI6
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Real time Analyze
- OC accuracy UP
- EZ to Pro
Marketing Information:
OVERVIEW
AORUS AI
AORUS AI Bullet Point
Unleash Ultimate Performance with One-Click Activation.
Auto DDR5 Memory Boost
With just a single click, unleash the full potential of DDR5 memory, instantly boosting your gaming and work efficiency.
One-Click Acceleration:
Enhance DDR5 speeds with a single click.
Durable Performance
GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.
Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
Zenith of the Memory
GIGABYTE Gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Comprehensive Thermal
GAMING motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
Dual 40Gbps USB4 with DP-Alt
The dual latest USB4 Type-C ports provide blistering fast and reliable transfer speed up to 40 Gbps of each. Featuring extensive comparability, efficient charging, and ultra-HD displayport connectivity, USB4 is beneficial to video editing, large file transfers, and data-intensive tasks.
802.11ax Wi-Fi 6
The Wireless solution 802.11ax Wi-Fi 6 enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps and 5Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
2.5GbE LAN
Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.
PCIe 5.0/4.0 Hardware Design
Featuring PCIe 5.0 x16 slot and PCIe 5.0/4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0/ 4.0 devices to provide the superior performance.
Hi-Fi Audio
High-End Audio CapacitorsAudio Noise Guard
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.
EZ Debug Zone
Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.
EZ-Latch Designs
User-friendly designs simplifying the assembly process.
AI-powered: Yes
Chipset Manufacturer: AMD
Chipset Model: X870
Total Processor Supported: 1
Processor Socket: Socket AM5
Processor Supported: Ryzen 7,Ryzen 8,Ryzen 9
Number of Memory Slots: 4
Memory Form Factor: DIMM,UDIMM
Maximum Memory Supported: 256 GB
Memory Speed Supported: 8000 MHz,7800 MHz,7600 MHz,7200 MHz,7000 MHz,6800 MHz,6666 MHz,6600 MHz,6400 MHz,6200 MHz,6000 MHz,5600 MHz,5200 MHz,4800 MHz,4400 MHz,8200 MHz,4100 MHz
Memory Technology: DDR5 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0,1,10,5
Onboard Video: CPU Dependent Video
Graphics Controller Manufacturer: AMD
Graphics Controller Model: Radeon Graphics
Audio Channels: 7.1
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.3
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
Total Number of Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x16 Slots: 3
PCI Express Standard: PCI Express 3.0,PCI Express 4.0,PCI Express 5.0
Total Number of USB Ports: 10
Number of USB 2.0 Ports: 4
Number of USB 3.2 Gen 1 Ports: 3
Number of USB 3.2 Gen 2 Type-A Ports: 1
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Thunderbolt: Yes
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 11
Number of Onboard USB 2.0 Ports: 4
Form Factor: ATX
Width: 12.01" (305 mm)
Depth: 9.61" (244 mm)
Environmental Compliance: China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS),Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
- Compatible Ryzen 7 processor lets you perform all your computational tasks at a swift pace
- DDR5 SDRAM slot for convenient installation of memory
- Supported 0 RAID levels provide data reliability and fault tolerance
- Supports AMD Radeon Graphics controller for stunning picture quality
- Wireless LAN support lets you connect to the internet and have instant access to social media, music, movies and online games
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- 4 USB 2.0 ports offer the impressive data transfer speed of up to 60 Mb/sec
[custom-specifications]
| Specifications | |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | X870 GAMING WIFI6 |
| Manufacturer Website Address | http://www.gigabyte.com |
| Brand Name | Gigabyte |
| Product Line | Ultra Durable |
| Product Model | X870 GAMING WIFI6 |
| Product Name | Ultra Durable X870 GAMING WIFI6 Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Technical Information | |
| AI-powered | Yes |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | X870 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen 7,Ryzen 8,Ryzen 9 |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 256 GB |
| Memory Speed Supported | 8000 MHz,7800 MHz,7600 MHz,7200 MHz,7000 MHz,6800 MHz,6666 MHz,6600 MHz,6400 MHz,6200 MHz,6000 MHz,5600 MHz,5200 MHz,4800 MHz,4400 MHz,8200 MHz,4100 MHz |
| Memory Technology | DDR5 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,10,5 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Manufacturer | AMD |
| Graphics Controller Model | Radeon Graphics |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x16 Slots | 3 |
| PCI Express Standard | PCI Express 3.0,PCI Express 4.0,PCI Express 5.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Thunderbolt | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 3 |
| Total Number of Onboard USB Ports | 11 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12.01" (305 mm) |
| Depth | 9.61" (244 mm) |
| Miscellaneous | |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS),Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
