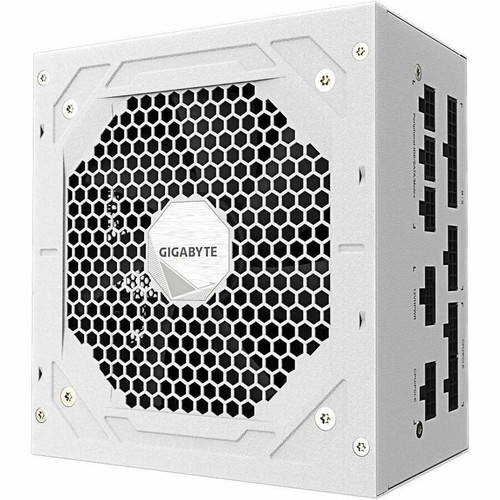

Gigabyte Ultra Durable White Internal Power Supply With Multi Voltage DC Outputs GP-UD850GM PG5W GP-UD850GM PG5W GP-UD850GM PG5W
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Specification Compliance: ATX12V v3.0,ATX 3.0
Efficiency: 90%
Power Factor Correction (PFC): Active
Number of Fans: 1
Fan Bearing Type: Hydro Bearing
Fan Diameter: 120 mm (4.72")
Protection Type: Over Voltage,Over Power,Short Circuit,Under Voltage,Over Current,Over Temperature
Modular: Yes
Features: Compact
MTBF: 100000 Hour
Input Voltage: 120 V AC,230 V AC
Number of +12V Rails: 2
Output Voltage: 3.3 V DC,5 V DC,12 V DC,-12 V DC,5 V SB
Output Voltage Detail: 3.3 V DC @ 20 A,5 V DC @ 20 A,12 V DC @ 70.8 A,-12 V DC @ 0.3 A,5 V SB @ 3 A,12 V DC @ 55 A
Output Current: 20 A,70.80 A,300 mA,3 A,55 A
Output Power: 850 W
Number of SATA Power Connectors: 8
PCI Express Connector: Yes
Number of (6+2 pin) PCI Express Power Connectors: 4
Number of (4+4 pin) CPU Power Connectors: 2
Color Family: White
Product Color: White
Form Factor: Internal
Height: 5.91" (150 mm)
Width: 5.51" (140 mm)
Depth: 3.39" (86 mm)
Weight (Approximate): 6.61 lb (3000 g)
Energy Efficiency Certification: 80 Plus Gold
Environmental Compliance: Taiwan Restriction of Hazardous Substances (Taiwan RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 5 Year
[custom-specifications]
| Specifications | |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | GP-UD850GM PG5W |
| Manufacturer Website Address | http://www.gigabyte.com |
| Brand Name | GIGABYTE |
| Product Line | Ultra Durable |
| Product Model | GP-UD850GM PG5W |
| Product Name | Ultra Durable GP-UD850GM PG5W 850W Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V v3.0,ATX 3.0 |
| Efficiency | 90% |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Fan Bearing Type | Hydro Bearing |
| Fan Diameter | 120 mm (4.72") |
| Protection Type | Over Voltage,Over Power,Short Circuit,Under Voltage,Over Current,Over Temperature |
| Modular | Yes |
| Features | Compact |
| Reliability | |
| MTBF | 100000 Hour |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of +12V Rails | 2 |
| Output Voltage | 3.3 V DC,5 V DC,12 V DC,-12 V DC,5 V SB |
| Output Voltage Detail | 3.3 V DC @ 20 A,5 V DC @ 20 A,12 V DC @ 70.8 A,-12 V DC @ 0.3 A,5 V SB @ 3 A,12 V DC @ 55 A |
| Output Current | 20 A,70.80 A,300 mA,3 A,55 A |
| Output Power | 850 W |
| Interfaces/Ports | |
| Number of SATA Power Connectors | 8 |
| PCI Express Connector | Yes |
| Number of (6+2 pin) PCI Express Power Connectors | 4 |
| Number of (4+4 pin) CPU Power Connectors | 2 |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Form Factor | Internal |
| Height | 5.91" (150 mm) |
| Width | 5.51" (140 mm) |
| Depth | 3.39" (86 mm) |
| Weight (Approximate) | 6.61 lb (3000 g) |
| Miscellaneous | |
| Energy Efficiency Certification | 80 Plus Gold |
| Environmental Compliance | Taiwan Restriction of Hazardous Substances (Taiwan RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
