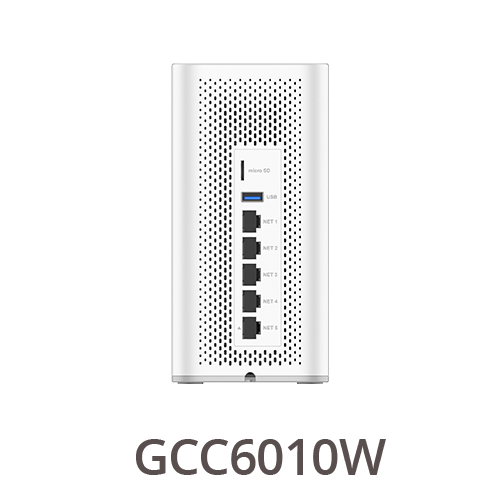

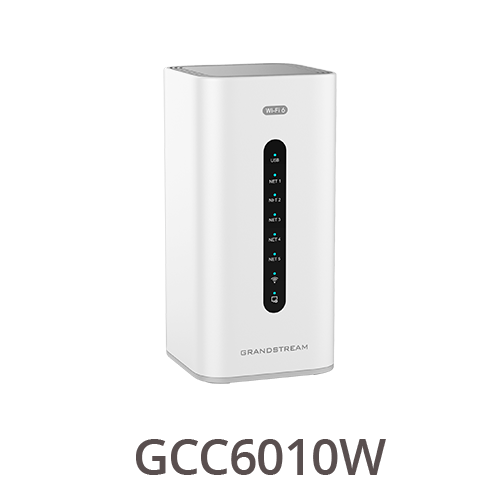

Grandstream GCC6010W All-in-One IP PBX - VPN Router - Firewall & Wi-Fi 6 Access Point - Built-in Switch - PoE - Dual-Band
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the GCC6010W is built on a hardware architecture that supports concurrent operation of its multiple subsystems without performance degradation. The built-in IP PBX subsystem facilitates enterprise-grade voice and video calling with support for advanced collaboration features, serving as the communications hub for Grandstream endpoints and compatible devices.
The networking and security stack is equally robust. The VPN router component supports aggregated throughput of 2.5Gbps or 3Gbps, enabling secure site-to-site and remote-user connections. The next-generation firewall employs anti-virus scanning, layer 3-7 intrusion detection and prevention (IDS/IPS), deep packet inspection (DPI), and SSL traffic detection to protect against modern threats.
Relevant factors for this section include SKU. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The GCC6010W consolidates critical network functions into one appliance, delivering operational simplicity and cost efficiency for SMBs. Its integrated design streamlines deployment, reduces physical clutter, and centralizes management through a single interface.
Unified Communications
Combines IP PBX, VPN router, firewall, and Wi-Fi 6 access point in a single device, eliminating the need for separate appliances and simplifying infrastructure management.
- Full-featured IP PBX for voice/video
- High-performance VPN router
- Next-generation firewall
- Dual-band Wi-Fi 6 access point
Advanced Security
Provides comprehensive protection with layer 3-7 intrusion detection/prevention, deep packet inspection, SSL traffic detection, and anti-virus scanning to safeguard against modern network threats.
- IDS/IPS protection
- DPI and SSL detection
- Encrypted traffic handling
Flexible Management
Offers multiple management options including cloud-based GDMS, mobile app, local WEB UI, SSH, and SNMP for convenient remote and on-premises administration.
- Cloud management via GDMS
- Mobile app control
- Local WEB UI access
Deployment / Use Cases
The GCC6010W is engineered for small to medium businesses seeking to consolidate their network infrastructure while maintaining robust security and communication capabilities. Its all-in-one design makes it particularly suitable for environments where space, budget, and management simplicity are priorities.
This platform excels in branch office deployments, retail locations, professional offices, and educational settings where integrated voice, data, and wireless services are required. The multiple WAN ports with load balancing and failover ensure reliable internet connectivity for business-critical applications.
SMB Office Networks
Ideal for small to medium businesses needing integrated voice, data, and wireless services in a single appliance that reduces hardware costs and simplifies management.
Branch Office Connectivity
Provides secure site-to-site VPN connections with high throughput while delivering local PBX functionality and Wi-Fi access for remote locations.
Highlights

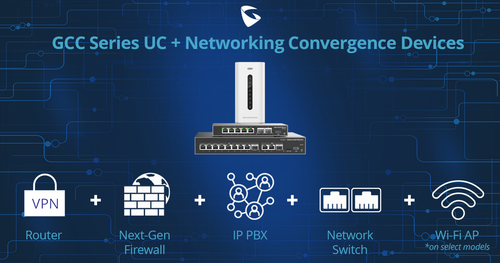

- All-in-one platform integrating IP PBX, VPN router, firewall, and Wi-Fi 6 access point.
- Built-in dual-band Wi-Fi 6 (802.11ax) access point with 2x2 MIMO technology.
- Next-generation firewall with anti-virus, IDS/IPS, DPI, and SSL detection.
- High-performance VPN router supporting up to 3Gbps throughput for remote access.
- Integrated network switch with 4x PoE-out ports and 2x 2.5G SFP ports.
- Centralized management of all Grandstream endpoints from a single interface.
- Advanced security with encrypted traffic, secure boot, and unique certificates.
- Managed via cloud (GDMS), mobile app, local WEB UI, SSH, and SNMP.
- Multiple WAN ports with load balancing and failover for maximum reliability.
- Backed by a 3-year manufacturer warranty.
Specifications
| General | |
|---|---|
| Brand | Grandstream |
| SKU | GCC6010W |
| Manufacturer Part Number | GCC6010W |
User Manual
- Datasheet_GCC6010_Series_English.pdf
- Datasheet_GCC6010_Series_French.pdf
- Datasheet_GCC6010_Series_German.pdf
- Datasheet_GCC6010_Series_Italian.pdf
- Datasheet_GCC6010_Series_Polish.pdf
- Datasheet_GCC6010_Series_Portuguese.pdf
- Datasheet_GCC6010_Series_Russian.pdf
- Datasheet_GCC6010_Series_Spanish.pdf
- EU%20Declaration%20of%20Conformity-No%20459-GCC6010.pdf
- EU%20Declaration%20of%20Conformity-No%20462-GCC6010W.pdf
- EU%20Declaration%20of%20Conformity-No%20463-GCC6011.pdf
FAQ
What network functions does the GCC6010W combine into one device?
The GCC6010W integrates four essential network functions: a full-featured IP PBX for voice and video communications, a high-performance VPN router for secure remote access, a next-generation firewall with advanced security features, and a dual-band Wi-Fi 6 access point for wireless connectivity. This all-in-one design eliminates the need for multiple standalone appliances.
What is the VPN throughput capability of this device?
The VPN router component supports aggregated throughput of 2.5Gbps or 3Gbps, enabling secure site-to-site and remote-user connections with high-speed performance. This capacity ensures efficient VPN tunneling for business applications while maintaining network security.
How many PoE ports are available on the GCC6010W?
The device includes 4x PoE-out ports that can power compatible network devices such as IP phones, cameras, or access points. These ports are part of the integrated network switch functionality, eliminating the need for separate PoE switches in many deployments.
What security features does the next-generation firewall provide?
The firewall employs comprehensive security measures including anti-virus scanning, layer 3-7 intrusion detection and prevention (IDS/IPS), deep packet inspection (DPI), and SSL traffic detection. These features work together to protect against modern network threats and ensure secure data transmission.
What management options are available for the GCC6010W?
The platform offers multiple management options including cloud-based management through Grandstream Device Management System (GDMS), mobile app control, local WEB UI access, SSH command-line interface, and SNMP support. This flexibility allows administrators to choose the most convenient method for their operational needs.
What wireless technology does the integrated access point use?
The device incorporates a contemporary Wi-Fi 6 (802.11ax) radio operating on dual bands with 2x2 MIMO technology. This provides efficient and reliable wireless coverage for client devices while supporting the latest Wi-Fi standards for improved performance in congested environments.
