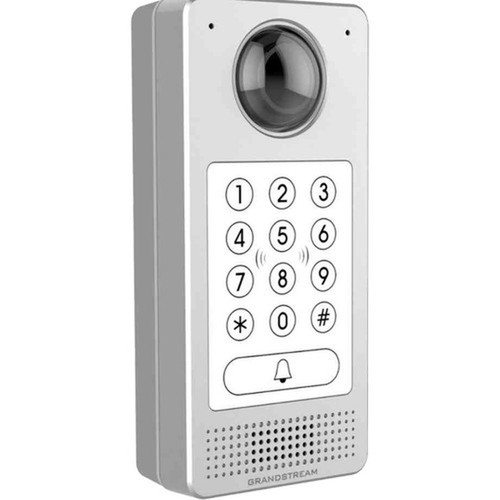

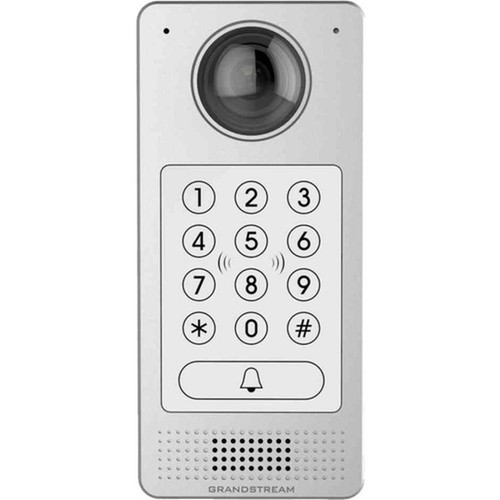

Grandstream GDS3710 HD IP Video Door System - 2MP 150° Horizontal 180° Vertical Camera - Full-Duplex - Vandal Resistant - IP66 - PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The GDS3710 delivers advanced technical capabilities for modern access control. The camera supports video resolutions up to 1080p with a minimum illumination of 0.5 lux, ensuring usable footage in low-light conditions. The hemispheric lens design provides 150° horizontal and 180° vertical viewing angles for comprehensive coverage without blind spots.
Communication is handled through full-duplex audio with a built-in microphone and speaker, enabling natural conversations between the door station and connected devices. The system supports SIP video streaming to compatible intercom stations, IP phones, or smartphones simultaneously, while motion detection adds an extra layer of security monitoring.
Relevant factors for this section include Communication Mode, Maximum Number of Buttons, Ingress Protection (IP) Rating, Minimum Illumination. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The GDS3710 stands out with several key advantages that make it ideal for demanding security applications. Its combination of high-resolution video, wide-angle coverage, and rugged construction addresses the core needs of modern access control systems.
Comprehensive Visual Coverage
The 150° horizontal and 180° vertical viewing angles eliminate blind spots around entry points, while the 2MP camera captures detailed footage for accurate visitor identification.
- 180° vertical wall-to-wall coverage
- 150° horizontal field of view
- 1080p video resolution
Robust Physical Security
Built with a metal casing and rated IP66 for dust and water resistance plus IK09 for impact protection, the GDS3710 withstands vandalism and extreme weather conditions.
- IP66 ingress protection
- IK09 impact rating
- Vandal-resistant construction
Integrated Access Control
Beyond video and audio, the system includes a built-in RFID chip reader for keyless entry and supports integration with existing security infrastructure through SIP compatibility.
- RFID reader for keyless entry
- SIP video streaming
- 12-button interface
Deployment / Use Cases
The GDS3710 is designed for deployment in various environments where secure door entry and visitor management are priorities. Its weatherproof and vandal-resistant construction makes it suitable for both indoor and outdoor installations.
Common use cases include commercial office buildings requiring controlled access to main entrances, residential apartment complexes needing intercom functionality with video verification, and industrial facilities where durable equipment is essential for perimeter security. The integrated PoE support simplifies deployment in new or existing network infrastructures.
Commercial Office Security
Deploy at main building entrances to provide video verification of visitors before granting access, with integration to existing phone systems for receptionist handling.
Multi-Unit Residential Access
Install at building entry points to allow residents to see and communicate with visitors before remotely unlocking doors, enhancing security in apartment complexes.
Physical Profile
The GDS3710 features a compact design measuring 6.81 inches in height, 3.15 inches in width, and 1.42 inches in depth (173 x 80 x 36 mm), with a weight of approximately 1.32 pounds (600 g). This streamlined footprint allows for discreet installation on door frames or walls without obstructing passageways. The metal casing provides both structural integrity and environmental protection, while the included mounting hardware facilitates secure attachment to various surfaces.
- Width
- 3.15" (80 mm)
- Depth
- 1.42" (36 mm)
- Height
- 6.81" (173 mm)
- Weight
- 1.32 lb (600 g)
Highlights
- 2-megapixel camera with video resolutions up to 1080p
- 150° horizontal and 180° vertical viewing angles for complete coverage
- Built-in RFID chip reader supports keyless entry access control
- SIP video streaming to intercom stations, IP phones, or smartphones
- Full-duplex audio with built-in microphone and speaker
- Integrated Power over Ethernet (PoE) for simplified installation
- IP66 rating for dust and water resistance, IK09 impact protection
- Vandal-resistant metal casing withstands harsh environments
- Motion detection capability enhances security monitoring
- 12-button interface for flexible access control configuration
Specifications
| Specifications | |
|---|---|
| Manufacturer | Grandstream Networks, Inc |
| Manufacturer Part Number | GDS3710 |
| Brand Name | Grandstream |
| Product Model | GDS3710 |
| Product Name | HD IP Video Door System |
| Product Type | Video Door Phone Sub Station |
| Technical Information | |
| Communication Mode | Full-duplex |
| Maximum Number of Buttons | 12 |
| Ingress Protection (IP) Rating | IP66 |
| Impact Protection (IK) Rating | IK09 |
| Camera | |
| Minimum Illumination | 0.5 lux |
| Horizontal Viewing Angle | 150° |
| Vertical Viewing Angle | 180° |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Durability | Vandal Resistant,Weather Proof |
| Height | 6.81" (173 mm) |
| Width | 3.15" (80 mm) |
| Depth | 1.42" (36 mm) |
| Weight (Approximate) | 1.32 lb (600 g) |
| Miscellaneous | |
| Application/Usage | Door Entry |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Country of Origin | China |
FAQ
How wide is the camera's field of view?
The camera provides 150° horizontal and 180° vertical viewing angles. This hemispheric coverage eliminates blind spots around entry points, allowing the system to capture comprehensive footage of visitors and their immediate surroundings for enhanced security monitoring.
What power options are available for this door system?
The GDS3710 supports both integrated Power over Ethernet (PoE) and 12V DC power input. PoE allows the device to receive both power and network connectivity through a single Ethernet cable, simplifying installation while maintaining reliability in various deployment scenarios.
How durable is the GDS3710 for outdoor installation?
With an IP66 ingress protection rating against dust and water, plus IK09 impact resistance, the GDS3710 is built for harsh environments. The vandal-resistant metal casing provides additional physical protection, making it suitable for both indoor and outdoor installations in demanding conditions.
What communication features does this system include?
The system features full-duplex audio communication with a built-in microphone and speaker, enabling natural two-way conversations. It also supports SIP video streaming to compatible devices like intercom stations, IP phones, or smartphones, allowing flexible integration with existing communication infrastructure.
Does the GDS3710 support access control beyond video?
Yes, the system includes a built-in RFID chip reader for keyless entry, supporting card or fob-based access control. The 12-button interface allows for additional configuration options, while motion detection capability provides an extra layer of security monitoring beyond basic door entry functions.
What connectivity or interface options are available?
Connectivity details help confirm how Grandstream HD IP Video Door System - 2 Megapixel150° Horizontal - 180° Vertical0.5 lux - Full-duplex - Door Entry (GDS3710) can integrate with your network, accessories, and surrounding peripherals before rollout or replacement planning.
