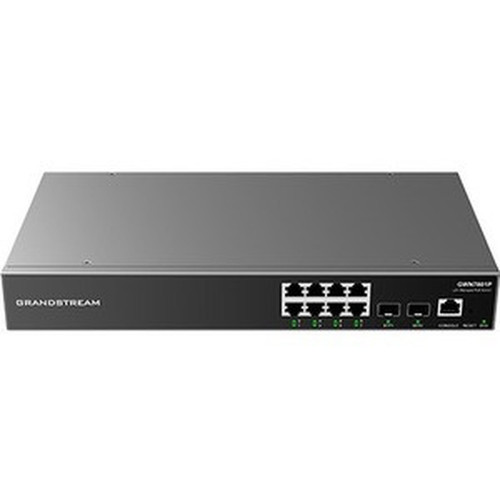

Grandstream GWN7801 Enterprise Layer 2+ Managed Network Switch - 8 Port Gigabit Ethernet - 2 SFP Slots - Desktop/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on Grandstream's GWN7800 series architecture, the GWN7801 implements a robust switching platform with full IEEE 802.3 compliance. The switch supports comprehensive networking standards including IEEE 802.1Q for VLAN tagging, IEEE 802.1p for traffic prioritization, and IEEE 802.1w for rapid spanning tree protocol implementation.
The dual SFP expansion slots provide uplink flexibility for connecting to fiber backbones or extending network distances beyond copper limitations. With support for both 1000Base-T and 1000Base-X standards, the switch maintains consistent gigabit performance across mixed media environments.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The GWN7801 combines enterprise-grade management features with a compact physical footprint, making it an ideal solution for space-constrained deployments. The switch's comprehensive protocol support ensures compatibility with existing network infrastructure while providing the management tools needed for optimized performance.
Advanced Management Capabilities
Web-based management interface provides complete control over switch configuration, monitoring, and troubleshooting. Support for SNMP, LLDP, and port mirroring enables integration with existing network management systems.
- Web GUI Management
- CLI Access
- SNMP v1/v2c/v3
- LLDP Discovery
Enhanced Network Security
Built-in security features protect against unauthorized access and network threats. Port security, MAC address filtering, and storm control mechanisms work together to maintain network integrity.
- Port Security
- MAC Address Filtering
- 802.1X Authentication
- DHCP Snooping
Flexible Deployment Options
The compact design supports multiple installation methods including desktop placement, wall mounting, and rack mounting with optional accessories. The switch's low power consumption and fanless operation make it suitable for office environments.
- Desktop Installation
- Wall Mountable
- Compact Footprint
- Fanless Operation
Deployment / Use Cases
The GWN7801 is engineered for business environments requiring reliable network connectivity with management capabilities. Its eight-port configuration makes it suitable for connecting workstations, printers, IP phones, and other network devices in office settings.
The dual SFP slots enable uplink connections to core switches or fiber backbones, making the switch ideal for edge deployments in distributed networks. Educational institutions, retail locations, and small office branches benefit from the switch's combination of port density, management features, and compact design.
Small Office Network Core
Serve as the central switching point for office networks, connecting computers, printers, and VoIP phones with VLAN segmentation for traffic isolation.
Edge Distribution Switch
Deploy at network edges with fiber uplinks to central switches, extending network reach while maintaining management visibility and control.
Physical Profile
The GWN7801 features a compact metal enclosure measuring 6.89" (175 mm) wide × 1.18" (30 mm) deep × 1.73" (44 mm) high. The switch's slim profile and included mounting hardware support flexible installation options including desktop placement with rubber feet or wall mounting with lug ears.
With a weight of 3.97 pounds (1800 grams), the switch maintains stability in various mounting configurations. The fanless design ensures silent operation suitable for office environments, while the 30-watt power consumption provides energy-efficient performance.
- Width
- 6.89" (175 mm)
- Height
- 1.73" (44 mm)
- Weight
- 3.97 lb (1800 g)
- Length
- 1.18" (30 mm)
What's in the Box
The GWN7801 ships complete with all necessary components for immediate deployment.
Highlights
- 8 Gigabit Ethernet ports for connecting computers, printers, and network devices
- 2 SFP expansion slots for fiber uplinks or network distance extension
- Layer 2+ managed switching with VLAN, QoS, and security features
- Compact desktop/wall-mountable form factor for space-efficient deployment
- Supports twisted pair and optical fiber media types
- Comprehensive IEEE networking standards compliance
- Web-based management interface for configuration and monitoring
- 30-watt power consumption for energy-efficient operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Grandstream Networks, Inc |
| Manufacturer Part Number | GWN7801 |
| Brand Name | Grandstream |
| Product Series | GWN7800 |
| Product Model | GWN7801 |
| Product Name | Enterprise Layer 2+ Managed Network Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network,2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3,IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1w,IEEE 802.1D,IEEE 802.1s |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 30 W |
| Physical Characteristics | |
| Form Factor | Desktop,Wall Mountable,Compact |
| Height | 1.73" (44 mm) |
| Width | 6.89" (175 mm) |
| Length | 1.18" (30 mm) |
| Weight (Approximate) | 3.97 lb (1800 g) |
| Miscellaneous | |
| Package Contents | Enterprise Layer 2+ Managed Network Switch 1 x 1.2m(10A) AC Cable 1 x Ground Cable 4 x Rubber Feet 2 x Lug Ear |
User Manual
FAQ
How many devices can I connect to the GWN7801 switch?
The GWN7801 provides eight Gigabit Ethernet ports for connecting network devices such as computers, printers, IP phones, and access points. Additionally, the two SFP expansion slots can be used for uplink connections to other switches or network infrastructure, effectively supporting up to ten physical connections with proper configuration.
What management features does this switch support?
As a Layer 2+ managed switch, the GWN7801 supports comprehensive management capabilities including VLAN configuration, Quality of Service (QoS) traffic prioritization, port security, and spanning tree protocols. The switch can be managed through a web-based graphical interface, command-line interface (CLI), or SNMP for integration with network management systems.
Can I use fiber optic connections with this switch?
Yes, the GWN7801 includes two SFP (mini-GBIC) expansion slots that support fiber optic transceivers. These slots enable connections using 1000Base-X standards for fiber optic media, allowing you to extend network distances beyond the 100-meter limitation of copper cables or connect to fiber backbones in larger network infrastructures.
What are the physical dimensions and mounting options?
The switch measures 6.89 inches wide × 1.18 inches deep × 1.73 inches high (175 × 30 × 44 mm) and weighs 3.97 pounds (1800 grams). It supports multiple installation methods including desktop placement using the included rubber feet, wall mounting with the provided lug ears, or rack mounting with optional accessories for standard rack installations.
What networking standards does the GWN7801 comply with?
The switch complies with comprehensive IEEE standards including 802.3 for Ethernet, 802.1Q for VLAN tagging, 802.1p for traffic prioritization, 802.1w for rapid spanning tree protocol, and 802.1D for bridging. This standards compliance ensures interoperability with other network equipment and support for advanced networking features.
What is included in the package with the switch?
The GWN7801 ships with the network switch unit, a 1.2-meter AC power cable rated for 10 amps, a ground cable for proper electrical grounding, four rubber feet for desktop placement, and two lug ears for wall mounting. All necessary hardware for basic installation is included for immediate deployment out of the box.
