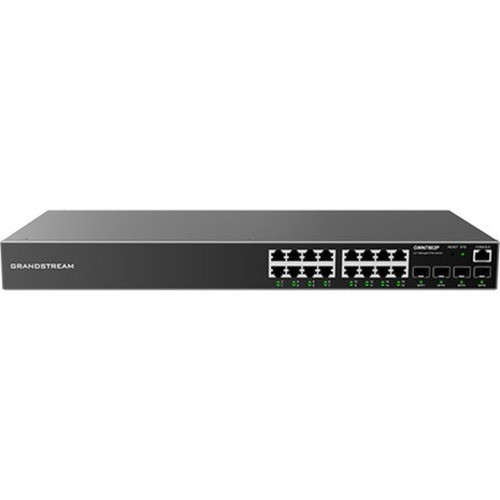

Grandstream GWN7802 Enterprise Layer 2+ Managed Network Switch - 16 Port Gigabit Ethernet - 4 SFP Slots - Desktop/Wall/Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This managed switch operates at Layer 2 with support for key networking protocols including IEEE 802.1Q VLAN, IEEE 802.1p priority queuing, IEEE 802.1w Rapid Spanning Tree, and IEEE 802.1s Multiple Spanning Tree. The 16 Gigabit Ethernet ports deliver 1000Base-T connectivity, while the 4 SFP slots support 1000Base-X fiber uplinks for high-performance network expansion.
The switch architecture includes advanced management capabilities with support for QoS, VLAN segmentation, and network security features. With modular expansion capabilities, the GWN7802 can adapt to growing network demands while maintaining consistent Gigabit Ethernet performance across all ports.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The GWN7802 combines port density with expansion flexibility, making it suitable for growing network environments. The managed Layer 2+ capabilities provide enhanced network control and security compared to unmanaged alternatives.
High Port Density
Sixteen Gigabit Ethernet ports offer substantial connectivity for workstations, VoIP phones, security cameras, and other network devices in office or small business environments.
- 16 RJ-45 ports
- Gigabit speed on all ports
- Supports twisted pair cabling
Expansion Ready
Four SFP slots enable fiber uplinks or additional copper connections, providing flexibility for network topology and future growth requirements.
- 4 SFP (mini-GBIC) slots
- 1000Base-X support
- Fiber or copper expansion
Deployment Flexibility
Multiple mounting options allow installation in various environments, from desktop use in small offices to rack-mounted deployment in server rooms or network closets.
- Desktop placement
- Wall mounting
- Rack installation
Deployment / Use Cases
The Grandstream GWN7802 is well-suited for small to medium business networks requiring managed switching capabilities. Its combination of copper ports and SFP expansion makes it adaptable to various networking scenarios.
In office environments, the switch can connect workstations, printers, and VoIP systems while providing VLAN segmentation for network security. For retail or hospitality deployments, the desktop form factor allows placement outside wiring closets while still offering managed features. The rack-mountable design also supports integration into existing network infrastructure in server rooms or data centers.
Small Business Core Switching
Serve as the central network switch for small offices, connecting computers, network printers, and IP phones with managed features for traffic prioritization and security.
Network Expansion Node
Extend existing networks with additional ports while providing fiber uplinks through SFP modules for connecting to core switches or other network segments.
Physical Profile
The GWN7802 measures 1.73" (44 mm) in height, 7.87" (200 mm) in width, and 17.32" (440 mm) in length, with a weight of 5.73 lb (2600 g). This compact form factor supports multiple installation methods while maintaining adequate ventilation for reliable operation. The included mounting hardware facilitates quick deployment in various environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (44 mm), 7.87" (200 mm), 5.73 lb (2600 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 7.87" (200 mm)
- Height
- 1.73" (44 mm)
- Weight
- 5.73 lb (2600 g)
- Length
- 17.32" (440 mm)
What's in the Box
The package includes all necessary components for immediate deployment and flexible installation options.
Highlights
- 16 Gigabit Ethernet ports for high-density connectivity
- 4 SFP expansion slots for fiber or additional copper uplinks
- Layer 2+ managed switching with comprehensive protocol support
- Desktop, wall-mount, and rack-mount installation options
- 30W power consumption with built-in power supply
- Supports twisted pair and optical fiber media types
- IEEE 802.1Q VLAN and 802.1p QoS capabilities
- Compact form factor: 1.73"H x 7.87"W x 17.32"L
Specifications
| Specifications | |
|---|---|
| Manufacturer | Grandstream Networks, Inc |
| Manufacturer Part Number | GWN7802 |
| Brand Name | Grandstream |
| Product Series | GWN7800 |
| Product Model | GWN7802 |
| Product Name | Enterprise Layer 2+ Managed Network Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 16 |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet Network,4 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3,IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1w,IEEE 802.1D,IEEE 802.1s |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 30 W |
| Physical Characteristics | |
| Form Factor | Desktop,Wall Mountable,Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 7.87" (200 mm) |
| Length | 17.32" (440 mm) |
| Weight (Approximate) | 5.73 lb (2600 g) |
| Miscellaneous | |
| Package Contents | Enterprise Layer 2+ Managed Network Switch 1 x 1.2m(10A) AC Cable Rack-mounting Standard Brackets 1 x Ground Cable 4 x Rubber Feet 2 x Lug Ear |
User Manual
FAQ
How many network ports does the Grandstream GWN7802 switch have?
The Grandstream GWN7802 provides 16 Gigabit Ethernet ports for connecting network devices. These RJ-45 ports support 1000Base-T connectivity over twisted pair cabling, delivering high-speed network access for workstations, servers, printers, and other Ethernet-enabled equipment in business environments.
What type of expansion slots are available on this switch?
The switch includes 4 SFP (mini-GBIC) expansion slots that support 1000Base-X network technology. These slots allow for fiber optic connections or additional copper uplinks, providing flexibility for network topology design and enabling connections to other switches or network segments over longer distances.
Is the GWN7802 a managed or unmanaged switch?
The GWN7802 is a fully managed Layer 2+ switch with comprehensive management capabilities. It supports advanced features including VLAN segmentation (IEEE 802.1Q), quality of service (IEEE 802.1p), Rapid Spanning Tree Protocol (IEEE 802.1w), and multiple management interfaces for network configuration and monitoring.
What mounting options are supported by this network switch?
The switch supports three installation methods: desktop placement, wall mounting, and rack mounting. The compact 1U form factor (1.73" height) makes it suitable for standard 19" rack enclosures, while the included rubber feet allow for stable desktop use. Wall-mount brackets are also provided for space-constrained installations.
What is the power consumption of the Grandstream GWN7802?
The switch consumes 30 watts of power during normal operation. It includes a built-in power supply that ensures consistent voltage delivery to all components, contributing to stable network performance. The relatively low power draw makes it suitable for environments where energy efficiency is a consideration.
What networking standards does this switch support?
The GWN7802 complies with multiple IEEE standards including 802.3 (Ethernet), 802.3i/u/ab/z (10BASE-T to 1000BASE-T), 802.3x (flow control), 802.1p (priority), 802.1Q (VLAN), 802.1w (RSTP), 802.1D (bridging), and 802.1s (MSTP). This comprehensive standards support ensures interoperability with other network equipment and reliable performance in mixed-vendor environments.
