Gyration CyberView 200D 2MP Indoor/Outdoor Dome Network Camera - 1080p HD - 98.43 ft IR Night Vision - IP67 - H. 265 - 3-Axis Adjustable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera utilizes a high-sensitivity CMOS image sensor that captures 2-megapixel video in full color during daylight conditions and automatically switches to infrared-enhanced monochrome imaging in low-light environments. The camera supports multiple video compression formats including H.264, H.265, Ultra 265, and MJPEG, allowing for efficient bandwidth utilization and extended storage retention when recording to the built-in SD card slot.
Advanced imaging features include wide dynamic range (WDR) for balanced exposure in high-contrast scenes, 2D and 3D digital noise reduction (DNR) for cleaner low-light footage, and digital defog technology that enhances visibility in hazy conditions. The camera's fixed 2.8 mm lens provides a wide 121.2° diagonal field of view, covering expansive areas with minimal distortion at the edges.
Key Product Advantages
The CyberView 200D incorporates intelligent video analytics including cross-line detection for virtual tripwire applications, region of interest (ROI) encoding to prioritize critical areas, and tampering alarm functionality that alerts administrators to camera obstruction or repositioning attempts. These features reduce false alarms while increasing the effectiveness of security monitoring systems.
Extended Night Vision Coverage
With 98.43 feet (30 meters) of infrared illumination, the CyberView 200D maintains surveillance capability in complete darkness, ensuring 24/7 monitoring without visible light sources.
- Infrared LEDs provide consistent illumination
- Auto-switches between day/night modes
- Preserves image detail in low-light conditions
Environmental Durability
The IP67-rated dome housing offers complete protection against dust ingress and temporary immersion in water up to 1 meter deep, making this camera suitable for outdoor installations in challenging weather conditions.
- Weather resistant and waterproof construction
- Operates in extreme temperatures
- Corrosion-resistant materials
Deployment / Use Cases
For industrial environments, the camera's extended temperature range and surge protection make it suitable for monitoring manufacturing floors, warehouses, and loading docks where equipment movement and personnel safety require constant visual oversight. The 3-axis adjustable mounting simplifies installation on walls, ceilings, or corners to achieve optimal viewing angles without requiring additional hardware.
In educational or institutional settings, the privacy masking feature allows administrators to obscure specific areas from recording while maintaining surveillance of public spaces, ensuring compliance with privacy regulations while securing common areas, hallways, and exterior grounds.
Commercial Perimeter Security
Install along building exteriors, fences, and parking areas to monitor unauthorized access, vehicle movement, and after-hours activity with reliable 24/7 coverage.
- IP67 rating withstands outdoor elements
- 98.43 ft night vision covers large areas
- Tampering alarm detects interference attempts
Retail & Business Surveillance
Position above entrances, cash registers, or inventory areas to deter theft, document transactions, and monitor customer traffic patterns with clear 1080p video evidence.
- Discreet dome design blends with ceilings
- Wide dynamic range handles lighting variations
- Built-in microphone captures audio evidence
Physical Profile

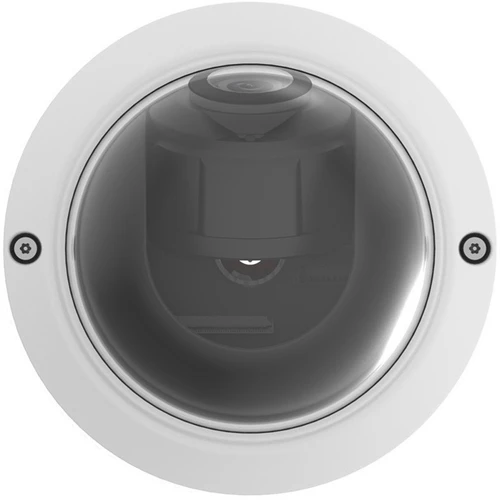

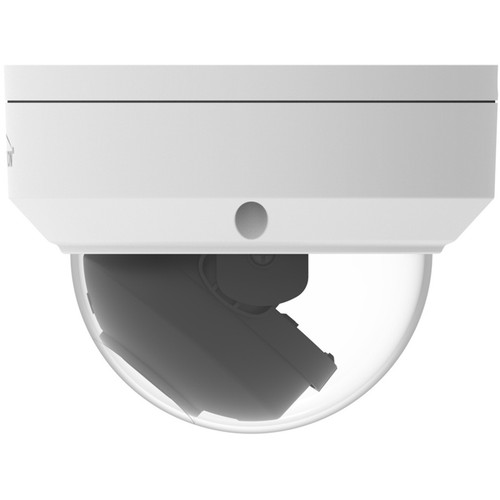

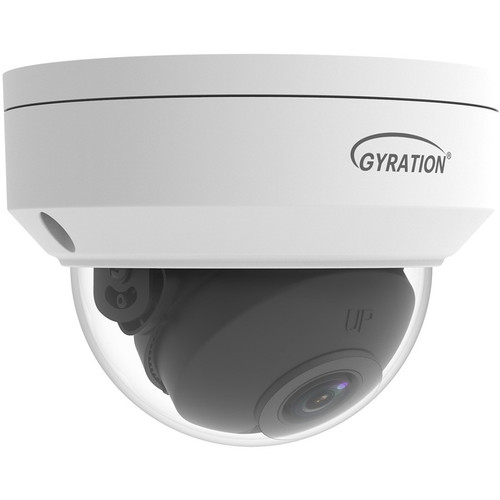

The CyberView 200D features a compact dome enclosure measuring 2.44" (62 mm) in height, 2.48" (63 mm) in width, and 6.50" (165 mm) in length, with a total weight of approximately 13.76 ounces (390 grams). This streamlined profile allows for discreet installation in both indoor and outdoor locations without drawing unnecessary attention. The 3-axis adjustable mounting bracket provides ±90° horizontal rotation, 0-75° vertical tilt, and 360° rotation around the lens axis, enabling precise camera alignment during installation. The dome's transparent cover resists scratching and UV degradation while maintaining optical clarity for the camera's fixed 2.8 mm lens.
- Width
- 2.48" (63 mm)
- Height
- 2.44" (62 mm)
- Weight
- 13.76 oz (390 g)
- Length
- 2.8 mm (0.11")
Highlights
- 2-megapixel resolution delivers crisp 1080p HD video at 30 fps
- 98.43 ft (30 m) infrared night vision ensures 24/7 surveillance capability
- IP67-rated weatherproof construction for reliable indoor/outdoor operation
- Supports H.265 compression for efficient bandwidth and storage utilization
- 3-axis adjustable mounting for flexible installation and precise camera alignment
- Built-in SD card slot enables local storage without network recorder dependency
- Wide dynamic range balances exposure in high-contrast lighting conditions
- Advanced video analytics including motion detection and privacy masking
- Operates in extreme temperatures from -22°F to 140°F (-30°C to 60°C)
- Includes tampering alarm and surge protection for enhanced security
Specifications
| Specifications | |
|---|---|
| Manufacturer | Adesso, Inc |
| Manufacturer Part Number | CYBERVIEW 200D |
| Brand Name | Gyration |
| Product Model | CYBERVIEW 200D |
| Product Name | 2 MP Outdoor IR Fixed Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | Angle of View (H) 112.9°, Angle of View (V) 59.1°, Angle of View (O) 121.2° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.264,H.265,Ultra 265,MJPEG |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Maximum Aperture | f/2 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Form Factor | Dome |
| Durability | Weather Resistant,Water Proof |
| Height | 2.44" (62 mm) |
| Width | 2.48" (63 mm) |
| Length | 6.50" (165 mm) |
| Weight (Approximate) | 13.76 oz (390 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Cross Line Detection,Wide Dynamic Range,Built-in Microphone,SD Card Local Storage,3-Axis Adjustable,Day/Night,2D Digital Noise Reduction (2DNR),3D Digital Noise Reduction,Digital Noise Reduction,Digital Defog,Built-in OSD Function,Privacy Masking,Region of Interest,Motion Detection,Highlight Compensation (HLC),Back Light Compensation (BLC),Tampering Alarm,Audio Detection,Surge Protection |
| Indoor/Outdoor | Indoor/Outdoor |
| Ingress Protection Rating | IP67 |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the maximum recording resolution of the Gyration CyberView 200D camera?
The CyberView 200D captures video at a maximum resolution of 1920 x 1080 pixels (1080p Full HD) at 30 frames per second. This 2-megapixel resolution provides detailed imagery suitable for identifying faces, license plates, and other critical details in surveillance footage. The camera supports multiple compression formats including H.264, H.265, Ultra 265, and MJPEG to optimize storage efficiency based on your recording requirements.
How far does the night vision reach on this network camera?
The infrared night vision system illuminates objects up to 98.43 feet (30 meters) in complete darkness. The camera automatically switches between color daytime mode and infrared-enhanced monochrome night mode based on ambient light conditions. This extended range ensures reliable surveillance coverage during overnight hours for perimeter security, parking areas, and other low-light environments without requiring additional lighting infrastructure.
Is the CyberView 200D suitable for outdoor installation?
Yes, this camera is specifically designed for both indoor and outdoor use with an IP67 ingress protection rating. The dome housing is completely sealed against dust ingress and can withstand temporary immersion in water up to 1 meter deep. Additionally, the camera operates reliably in extreme temperatures ranging from -22°F to 140°F (-30°C to 60°C) and up to 95% humidity, making it suitable for year-round outdoor surveillance in various climate conditions.
What type of network connection does this camera require?
The CyberView 200D utilizes a wired Ethernet connection via its built-in RJ-45 port for network connectivity and Power over Ethernet (PoE) compatibility. This single-cable solution provides both data transmission and power delivery when connected to a PoE switch or injector. The camera also features remote management capabilities, allowing administrators to configure settings, view live feeds, and review recordings from any network-connected device with proper authorization.

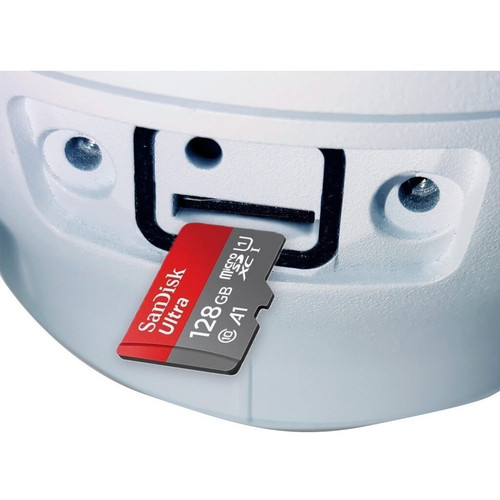

Does this camera support local storage without a network video recorder?
Yes, the camera includes a built-in microSD card slot that enables local video storage without requiring a separate network video recorder (NVR). This feature provides recording redundancy, allows for standalone deployment in smaller installations, and ensures continuous recording even if network connectivity is temporarily interrupted. The camera continues to record to the local storage while maintaining all its intelligent video analytics functionality.
What mounting flexibility does the 3-axis adjustable design provide?
The 3-axis adjustable mounting bracket allows for precise camera positioning with ±90° of horizontal rotation, 0-75° of vertical tilt adjustment, and 360° rotation around the lens axis. This flexibility enables installers to optimize the viewing angle during installation without requiring additional hardware or complex mounting solutions. The adjustable design is particularly valuable when installing cameras on corners, uneven surfaces, or in locations where the optimal viewing angle isn't aligned with standard mounting positions.
