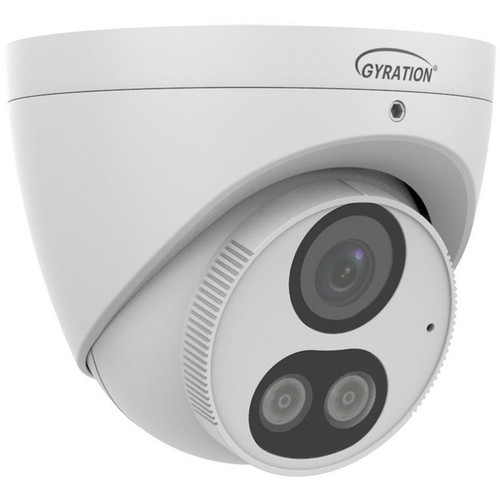

Gyration CYBERVIEW 510T 5MP Indoor/Outdoor Turret Network Camera - 2880 x 1620 HD - 98. 43 ft IR Night Vision - IP67 - H. 265 - 30 fps
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera captures video in multiple advanced formats including H.264, H.265, Ultra 265, and MJPEG, providing efficient compression and compatibility with modern network video recorders. The fixed 2.8 mm f/1 lens delivers a wide field of view, with horizontal angles ranging from 102.0° to 80.2°, vertical from 53.4° to 43.0°, and diagonal from 121.0° to 94.7°, ensuring comprehensive area coverage.
Advanced imaging technologies are integrated to enhance performance in challenging lighting. Wide Dynamic Range (WDR) balances bright and dark areas, while Digital Noise Reduction (2DNR and 3DNR) and Digital Defog minimize visual artifacts. The camera supports features like Back Light Compensation (BLC) and Highlight Compensation (HLC) to maintain clarity in high-contrast scenes.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The CYBERVIEW 510T combines high-resolution imaging with robust construction to deliver a reliable surveillance solution. Its infrared night vision extends to 98.43 feet, powered by two IR LEDs, ensuring clear monitoring in complete darkness. The camera's intelligent features, such as motion detection, tampering alarm, and audio detection, provide proactive security alerts.
Enhanced Video Intelligence
Includes face detection, cross-line detection, and privacy masking for targeted monitoring and compliance.
- Region of Interest (ROI) focusing
- Built-in OSD for on-screen configuration
- Surge protection for durability
Flexible Storage & Management
Supports local storage via SD card and enables remote management over the network for convenient oversight.
- Built-in microphone for audio capture
- Remote configuration and monitoring
- Compatible with standard NVR systems
Deployment / Use Cases
This camera is ideal for perimeter security, entryway monitoring, and indoor facility surveillance where high-definition detail and weather resistance are critical. Its turret form factor and adjustable mount allow discreet installation on walls or ceilings, blending into commercial, industrial, or residential settings.
Common applications include retail store oversight, warehouse monitoring, parking lot security, and building access control. The IP67 rating ensures reliable operation in rain, snow, or dust, while the wide operating temperature range from -22°F to 140°F supports deployment in extreme climates.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Outdoor Perimeter Security
Monitor fences, gates, and outdoor assets with night vision and weatherproof durability.
Indoor Facility Monitoring
Secure lobbies, corridors, and storage areas with high-resolution video and motion detection.

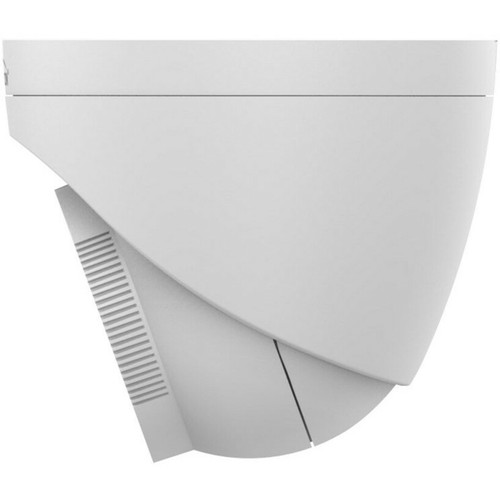

Physical Profile
The turret design measures 3.70 inches in height and 4.35 inches in diameter, offering a compact footprint for unobtrusive installation. Its 3-axis adjustment provides precise alignment after mounting, and the durable construction includes surge protection for enhanced longevity in electrically noisy environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.70" (94.10 mm), 15.52 oz (440 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 3.70" (94.10 mm)
- Weight
- 15.52 oz (440 g)
- Length
- 2.8 mm (0.11")
Highlights
- 5-megapixel CMOS sensor for detailed 2880x1620 HD video
- Infrared night vision with 98.43 ft (30 m) range
- IP67-rated weatherproof and water-resistant turret housing
- Supports H.265, H.264, Ultra 265, and MJPEG video formats
- Wide dynamic range and digital noise reduction for clear imaging
- 3-axis adjustable mount for flexible positioning
- Local storage via SD card and remote management capability
- Built-in microphone and advanced detection features
- Operates from -22°F to 140°F (-30°C to 60°C)
- 1-year limited warranty and RoHS compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Adesso, Inc |
| Manufacturer Part Number | CYBERVIEW 510T |
| Brand Name | Gyration |
| Product Model | CYBERVIEW 510T |
| Product Name | 5 MP Outdoor Intelligent Full Color Fixed Turret Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Number of IR LEDs | 2 |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | Angle of View (H) 102.0° - 80.2°, Angle of View (V) 53.4° - 43.0°, Angle of View (O) 121.0° - 94.7° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | H.264,H.265,Ultra 265,MJPEG |
| Maximum Video Resolution | 2880 x 1620 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Maximum Aperture | f/1 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Form Factor | Turret |
| Durability | Weather Resistant,Water Proof |
| Height | 3.70" (94.10 mm) |
| Diameter | 4.35" (110.50 mm) |
| Weight (Approximate) | 15.52 oz (440 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Cross Line Detection,Wide Dynamic Range,Built-in Microphone,SD Card Local Storage,3-Axis Adjustable,2D Digital Noise Reduction (2DNR),3D Digital Noise Reduction,Digital Noise Reduction,Digital Defog,Built-in OSD Function,Privacy Masking,Region of Interest,Motion Detection,Highlight Compensation (HLC),Back Light Compensation (BLC),Tampering Alarm,Audio Detection,Surge Protection,Face Detection |
| Indoor/Outdoor | Indoor/Outdoor |
| Ingress Protection Rating | IP67 |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the maximum video resolution of the CYBERVIEW 510T camera?
The camera captures video at up to 2880 x 1620 resolution, which is 5 megapixels. This high definition provides detailed imagery suitable for identifying faces, license plates, or other critical details in surveillance footage.
How far does the night vision reach on this camera?
The infrared night vision effectively illuminates objects up to 98.43 feet (30 meters) in total darkness. It uses two IR LEDs to provide clear monochrome video during nighttime or low-light conditions.
Is this camera suitable for outdoor use?
Yes, the CYBERVIEW 510T is designed for both indoor and outdoor deployment. It has an IP67 ingress protection rating, making it weather resistant and waterproof, so it can withstand rain, snow, dust, and harsh environmental conditions.
What video formats does the camera support?
It supports H.264, H.265, Ultra 265, and MJPEG video formats. H.265 offers efficient compression for reduced bandwidth and storage needs, while maintaining high video quality.
Does the camera include a built-in microphone?
Yes, it features a built-in microphone for audio capture alongside video. This allows for synchronized audio recording, which can be useful for monitoring conversations or detecting audible events in security applications.
What power supply does the camera require?
The camera operates on 12 V DC input. It uses wired connectivity via an RJ-45 Ethernet cable, which also supports Power over Ethernet (PoE) if used with a compatible injector or switch, though PoE capability should be verified with your specific setup.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
