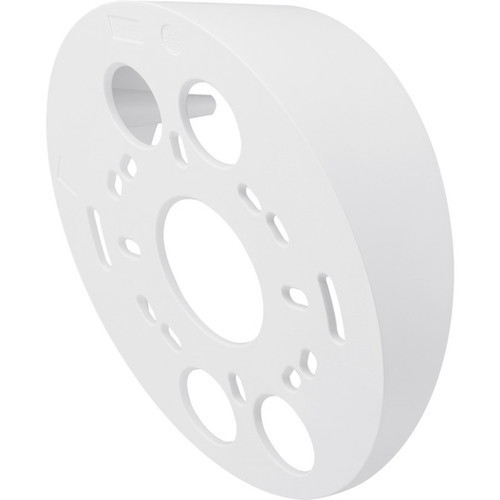

Hanwha Techwin SBP-160TMW1 Wall Mount for Security Camera - White Aluminum with 20° Tilt
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This wall mount incorporates a 20° tilt adjustment mechanism, allowing installers to fine-tune the camera's vertical angle after mounting. This feature is crucial for achieving the desired field of view and minimizing blind spots in a fixed installation.
The mount's compact design, with a 6.30-inch diameter and 2.27-inch height, ensures a low-profile installation. Its specific engineering guarantees compatibility with a range of Hanwha Techwin camera models, including the XNF, XND, and PND series, providing a reliable hardware interface for these devices.
This section brings together practical product details such as Device Supported, Features, Color Family, Product Color, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SBP-160TMW1 delivers precise mounting stability and installation flexibility for Hanwha Techwin surveillance systems.
Optimized Camera Positioning
The integrated 20° tilt allows for post-installation angle adjustment, enabling technicians to perfect the camera's aim without remounting the base, saving time and improving coverage accuracy.
- Post-installation fine-tuning
- Reduces need for rework
- Improves final field of view
Durable and Discreet Build
Made from aluminum, the mount resists corrosion and maintains structural integrity. The white color offers a neutral, low-visibility appearance suitable for professional and residential settings.
- Aluminum for longevity
- White finish for blending
- Lightweight at 11.46 oz
Guaranteed Compatibility
Designed specifically for Hanwha Techwin cameras, this mount ensures a secure fit and proper weight support for compatible models, eliminating guesswork and adapter needs.
- Tested with listed models
- Secure attachment interface
- Simplifies parts selection
Deployment / Use Cases
This wall mount is ideal for fixed surveillance camera installations where a stable, adjustable mounting point is required. It supports both new deployments and upgrades to existing Hanwha Techwin camera systems.
Common applications include mounting cameras at entry points, along perimeters, in retail environments, office corridors, and residential exteriors. The tilt adjustment is particularly valuable for installations on uneven surfaces or when the optimal viewing angle requires minor vertical correction after the mount is secured to the wall.
This section brings together practical product details such as Device Supported, Features, Color Family, Product Color, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The mount presents a low-profile circular design with a 6.30-inch diameter, minimizing its visual footprint on the mounting surface. The 2.27-inch height provides necessary clearance for the tilt mechanism while keeping the assembly compact. Weighing approximately 11.46 ounces, it adds minimal load to the wall structure. The all-aluminum construction and white powder-coat or painted finish are designed for durability in typical indoor and sheltered outdoor environments.
- Height
- 2.27" (57.60 mm)
- Weight
- 11.46 oz (325 g)
Highlights
- Designed specifically for Hanwha Techwin security cameras.
- Features a 20° tilt adjustment for precise camera aiming.
- Constructed from durable, lightweight aluminum.
- White finish for discreet, aesthetic installation.
- Compact design with 6.30" diameter and 2.27" height.
- Low weight of approximately 11.46 oz (325 g).
- Compatible with multiple XNF, XND, and PND series cameras.
- Ideal for wall mounting in fixed surveillance setups.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | SBP-160TMW1 |
| Brand Name | Hanwha Techwin |
| Product Model | SBP-160TMW1 |
| Product Name | SBP-160TMW1 Tilt Mount |
| Product Type | Wall Mount |
| Product Information | |
| Device Supported | Security Camera |
| Features | 20° Tilt |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Aluminum |
| Height | 2.27" (57.60 mm) |
| Diameter | 6.30" (160 mm) |
| Weight (Approximate) | 11.46 oz (325 g) |
| Miscellaneous | |
| Application/Usage | Wall |
| Compatibility | Hanwha Techwin Security Camera XNF-9010RV XNF-9010RVM XND-9082RV XND-8082RV XND-6081RV XND-6081REV XND-8081RV XND-8081ERV PND-A9081RV |
User Manual
FAQ
What Hanwha Techwin camera models is this wall mount compatible with?
The SBP-160TMW1 is compatible with several Hanwha Techwin security camera models, including the XNF-9010RV, XNF-9010RVM, XND-9082RV, XND-8082RV, XND-6081RV, XND-6081REV, XND-8081RV, XND-8081ERV, and PND-A9081RV. It is designed to provide a secure mechanical interface specifically for these cameras.
Does this mount allow for any camera angle adjustment?
Yes, this wall mount features a 20° tilt adjustment. This allows the installer to adjust the vertical angle of the camera after the mount base is fixed to the wall, which is essential for fine-tuning the field of view and achieving optimal coverage during installation.
What material is the SBP-160TMW1 wall mount made from?
The mount is constructed from aluminum. This material provides a strong, durable mounting solution that is also relatively lightweight, helping to minimize stress on the wall structure while offering good resistance to environmental factors like corrosion.
What are the physical dimensions and weight of this wall mount?
The mount has a diameter of 6.30 inches (160 mm) and a height of 2.27 inches (57.60 mm). It weighs approximately 11.46 ounces (325 grams). This compact and lightweight design supports a low-profile installation.
Is this mount suitable for outdoor use?
The mount is constructed from aluminum, which offers good durability. Its white finish also provides some protection. However, the product information specifies application/usage as 'Wall' without explicit outdoor ratings. For definitive outdoor suitability, especially in exposed conditions, consult the manufacturer's specifications or brochure for environmental ratings related to the specific camera model being mounted.
Where can I find installation instructions for this wall mount?
Detailed installation instructions, including any specific torque requirements or mounting considerations, are available in the manufacturer's brochure. A link to this document is typically provided with the product information for reference during planning and installation.
What connectivity or interface options are available?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
