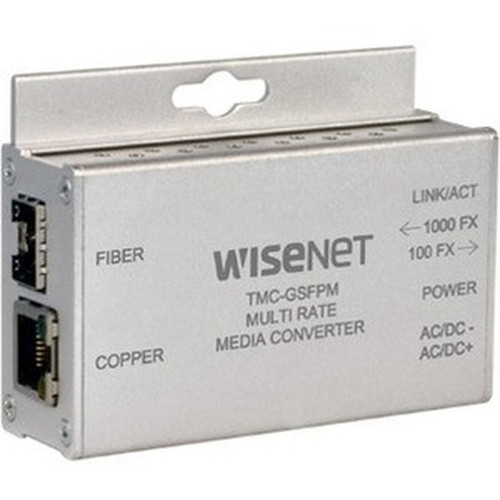

Hanwha Techwin TMC-GSFPPOEM TMC-GSFP Gigabit Transceiver/Media Converter - 1 x RJ-45 to SFP - Single/Multi-mode Fiber - 120 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered for Gigabit Ethernet performance, the TMC-GSFP supports 10/100/1000Base-TX over copper and 1000Base-FX over fiber, ensuring full gigabit throughput. The device features one RJ-45 port for copper connectivity and one SFP (mini-GBIC) slot for fiber optic modules, allowing customization based on fiber type and distance requirements.
Power is supplied via DC input, and the compact dimensions of 1.10" H x 3.30" W x 2.50" D make it easy to install in space-constrained locations. The converter is environmentally compliant with RoHS and WEEE standards, reflecting a commitment to reduced hazardous substances and proper electronic waste management.
Key Product Advantages
This media converter excels in extending network reach and simplifying mixed-media deployments. By converting copper to fiber, it eliminates distance limitations of traditional Ethernet cabling while maintaining high-speed data transfer.
Flexible Fiber Support
Accepts both single-mode and multi-mode SFP modules, allowing adaptation to various fiber optic cabling types and distances up to 120 km.
- Single-mode for long-distance runs
- Multi-mode for shorter campus links
Dual Mounting Options
Can be placed on a flat surface as a standalone unit or mounted on a DIN rail for organized installation in control panels or network cabinets.
- Standalone for desktop use
- DIN rail for industrial integration
Simplified Connectivity
With one RJ-45 port and one SFP slot, it provides a straightforward point-to-point connection between copper and fiber segments without complex configuration.
- Plug-and-play operation
- No software management required
Deployment / Use Cases
The TMC-GSFP is ideal for scenarios where network segments need to transition from copper to fiber optic cabling. Its high distance support and flexible mounting make it versatile for both enterprise and industrial applications.
Common use cases include connecting buildings across a campus using fiber for noise immunity and distance, extending network links in manufacturing plants where DIN rail mounting is preferred, and integrating fiber backbones into existing copper-based office networks. The device is also suitable for surveillance systems requiring long-distance video data transmission over fiber.
Campus Network Extension
Connect separate buildings over single-mode fiber to overcome copper distance limits, ensuring reliable gigabit speeds across large sites.
Industrial Networking
Mount on DIN rails in control panels to interface factory floor copper devices with fiber optic backbone networks, resisting electromagnetic interference.
Physical Profile
The converter has a compact, rugged design measuring 1.10 inches in height, 3.30 inches in width, and 2.50 inches in depth. Its small footprint allows installation in tight spaces, while the option for DIN rail mounting provides secure attachment in industrial environments. The standalone form also permits placement on desks or shelves for temporary or office deployments.
- Width
- 3.30" (83.82 mm)
- Depth
- 2.50" (63.50 mm)
- Height
- 1.10" (27.94 mm)
Highlights
- Converts RJ-45 copper to SFP fiber optic for Gigabit Ethernet
- Supports both single-mode and multi-mode fiber up to 120 km distance
- Features one RJ-45 port and one SFP slot for flexible connectivity
- Standalone and DIN rail mountable for versatile installation
- DC powered with compact dimensions for space-efficient deployment
- Compliant with RoHS and WEEE environmental standards
- Enables 10/100/1000Base-TX to 1000Base-FX media conversion
- Plug-and-play operation with no configuration required
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | TMC-GSFPPOEM |
| Brand Name | Hanwha Techwin |
| Product Series | TMC-GSFP |
| Product Name | TMC-GSFP Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Single-mode,Multi-mode |
| Maximum Distance Supported | 120 km (74.56 Mile) |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-TX,1000Base-FX |
| Power Description | |
| Power Source | DC |
| Physical Characteristics | |
| Form Factor | Standalone,DIN Rail Mountable |
| Height | 1.10" (27.94 mm) |
| Width | 3.30" (83.82 mm) |
| Depth | 2.50" (63.50 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
FAQ
What does this media converter do?
The Hanwha Techwin TMC-GSFP converts Gigabit Ethernet signals between a standard RJ-45 copper port and an SFP fiber optic slot. It allows you to connect copper-based network equipment to fiber optic cabling, extending network distance and improving signal integrity over long runs.
What types of fiber does it support?
This converter supports both single-mode and multi-mode fiber optic cables. Single-mode is typically used for longer distances up to 120 km, while multi-mode is suited for shorter campus or building links. You need to install a compatible SFP module matching your fiber type.
How far can it transmit data over fiber?
The maximum supported distance is 120 km (approximately 74.56 miles) when using appropriate single-mode fiber and SFP modules. This makes it ideal for connecting remote buildings or extending network segments beyond the limits of copper Ethernet cabling.
What are the mounting options?
The TMC-GSFP offers two mounting options: standalone placement on a flat surface like a desk or shelf, and DIN rail mounting for secure installation in industrial control panels or network racks. This flexibility suits both office and harsh environment deployments.
What power source does it require?
The converter is powered by DC input. You will need to provide a compatible DC power adapter (not included) to operate the device. Ensure the power supply matches the required voltage and current specifications for reliable performance.
Is this converter plug-and-play?
Yes, the TMC-GSFP operates as a plug-and-play device with no software configuration needed. Simply connect the RJ-45 port to your copper network, insert an SFP module into the slot, attach fiber cabling, and apply power. It automatically handles the media conversion at gigabit speeds.
