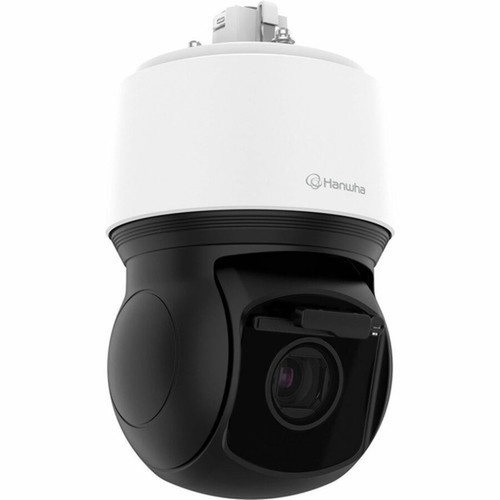

Hanwha XNP-C9303RW 8MP 4K Network Camera - 30x Optical Zoom - 656 ft IR Night Vision - IP66/IK10 - HPoE - White/Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera captures 4K Ultra HD video at 30 frames per second, ensuring smooth, detailed footage suitable for identification and forensic analysis. The 1/2.8" CMOS sensor provides excellent low-light performance, while the varifocal lens offers focal lengths from 5mm wide-angle to 150mm telephoto, giving installers precise control over the field of view.
Advanced imaging features include extreme Wide Dynamic Range (WDR) for handling challenging lighting conditions, Digital Image Stabilization (DIS) with a built-in gyro sensor to reduce vibration effects, and comprehensive digital noise reduction. The camera supports shutter speeds from 1/12000 second to 2 seconds, allowing for crisp capture of fast-moving objects or enhanced low-light sensitivity.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The XNP-C9303RW distinguishes itself through integrated intelligent analytics that automate surveillance tasks and enhance security effectiveness. The camera's AI capabilities include object auto-tracking for both persons and vehicles, target lock tracking for consistent monitoring of specific subjects, and built-in motion detection with privacy masking options.
Advanced Detection Capabilities
The camera automatically identifies and tracks people and vehicles, reducing false alarms and focusing operator attention on relevant events. This intelligent filtering streamlines monitoring operations in high-traffic environments.
- Person Detection
- Vehicle Detection
- Target Lock Tracking
Environmental Resilience
With IP66 waterproof/dustproof rating and IK10 impact resistance, the camera withstands harsh outdoor conditions including heavy rain, dust ingress, and physical impacts. It operates reliably in temperatures from -40°F to 131°F.
- IP66 Weatherproof
- IK10 Vandal Resistance
- -40°F to 131°F Operating Range
Operational Efficiency Features
The built-in wiper maintains clear imagery during precipitation, while Day/Night functionality with ICR (Infrared Cut Filter Removable) ensures optimal image quality in all lighting conditions. Back Light Compensation and Highlight Compensation manage challenging contrast scenarios.
- Built-in Wiper
- Day/Night (ICR) Operation
- BLC and HLC Compensation
Deployment / Use Cases
This camera is ideally suited for perimeter security applications where long-range identification and detailed monitoring are critical. The 656-foot infrared night vision capability combined with 30x optical zoom makes it effective for monitoring large outdoor areas such as parking lots, industrial facilities, and transportation hubs during both day and night operations.
The AI-powered person and vehicle detection enables automated alerting for unauthorized access points, while the rugged IP66/IK10 construction ensures reliable performance in exposed outdoor installations. The camera's compact PTZ PLUS design facilitates installation on poles, walls, or ceilings with simplified cabling through HPoE support.
Critical Infrastructure Protection
Monitor power substations, water treatment facilities, and communication towers with the camera's long-range zoom and environmental hardening. The extended temperature range ensures operation in extreme climates.
Transportation Hub Surveillance
Deploy at airports, seaports, and rail yards to track vehicle and personnel movement across expansive areas. The intelligent analytics filter relevant activity from routine traffic.
Physical Profile
The camera features a 7.28-inch diameter housing with a dual-color white and black finish that blends with various architectural environments. Weighing 12.35 pounds, the unit maintains a substantial presence while the PTZ PLUS design reduces overall bulk compared to traditional PTZ cameras. The compact form factor simplifies mounting on standard brackets and reduces wind loading in exposed installations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 12.35 lb (5600 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 12.35 lb (5600 g)
- Length
- 5 mm (0.20")
Highlights
- 8-megapixel 4K resolution for detailed identification
- 30x optical zoom with 5-150mm focal range
- 656-foot infrared night vision capability
- AI analytics with person and vehicle detection
- IP66 weatherproof and IK10 vandal-resistant
- HPoE power for simplified single-cable installation
- Built-in wiper for clear imagery in precipitation
- Wide operating temperature range (-40°F to 131°F)
- H.265 and H.264 compression with WiseStream II
- Digital Image Stabilization with gyro sensor
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XNP-C9303RW |
| Brand Name | Hanwha |
| Product Series | X |
| Product Model | XNP-C9303RW |
| Product Name | 8MP 30x AI PTZ Camera with built-in wiper |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Night Vision | Yes |
| Night Vision Distance | 656.17 ft (200 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | Angular Field of View H: 57.42°(Wide)~2.19°(Tele) / V: 33.54°(Wide)~1.25°(Tele) |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | H.265,H.264,H.265M,H.265B,H.265H,H.264M,H.264B,H.264H |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 5 mm (0.20") |
| Maximum Focal Length | 150 mm (5.91") |
| Lens Included | Yes |
| Minimum Aperture | f/1.6 |
| Maximum Aperture | f/4.56 |
| Optical Zoom | 30x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | IPv4,IPv6,TCP/IP,UDP/IP,RTP/TCP,RTP/UDP,RTCP,RTSP,NTP,HTTP,HTTPS,SSL/TLS,DHCP,FTP,SMTP,ICMP,IGMP,SNMPv1/v2c/v3 (MIB2),ARP,DNS,DDNS,QoS,PIM-SM,UPnP,Bonjour,LLDP,SRTP,NTCIP,MQTT |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Power Source Type | HPoE |
| Physical Characteristics | |
| Color Family | Dual Color |
| Product Color | White,Black |
| Diameter | 7.28" (184.90 mm) |
| Weight (Approximate) | 12.35 lb (5600 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Back Light Compensation (BLC),Highlight Compensation (HLC),Wide Dynamic Range,Privacy Masking,Motion Detection,Defog,Digital Image Stabilization,Digital Noise Reduction,Day/Night,Vehicle Detection,Human Detection |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
User Manual
FAQ
What is the maximum resolution of this Hanwha camera?
The Hanwha XNP-C9303RW captures video at 8-megapixel resolution, which translates to 3840 x 2160 pixels (4K Ultra HD). This high resolution provides exceptional detail for identification purposes and forensic review, recording at up to 30 frames per second for smooth motion capture.
How far does the night vision reach on this camera?
The camera features infrared night vision that extends to 656.17 feet (200 meters). This long-range illumination capability, combined with the 30x optical zoom, allows for detailed monitoring of distant subjects in complete darkness, making it suitable for perimeter security applications.
What type of power does this network camera require?
This camera is powered by HPoE (High Power over Ethernet), which delivers both data and power through a single network cable. This simplifies installation by eliminating the need for separate power wiring and allows for deployment in locations where power outlets may not be readily available.
Is this camera suitable for outdoor installation?
Yes, the camera is specifically designed for outdoor use with an IP66 rating for waterproof and dustproof protection, along with an IK10 impact resistance rating. It operates reliably in temperatures ranging from -40°F to 131°F and includes a built-in wiper to maintain clear imagery during rain or snow.
What intelligent analytics features does this camera include?
The camera incorporates AI-driven analytics including automatic person detection, vehicle detection, and target lock tracking. These features enable the camera to identify and follow specific subjects while filtering out irrelevant motion, reducing false alarms and focusing operator attention on security-relevant events.
What is the optical zoom capability of this camera?
The camera features a 30x optical zoom with a varifocal lens that ranges from 5mm wide-angle to 150mm telephoto. This substantial zoom range allows operators to capture expansive overviews or zoom in for detailed identification of distant subjects without sacrificing image quality.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
