HDMI Splitter Extender With Loop Out And Receivers For 4K YUV 4:4:4 Distribution Up To FN-VE-HDPO-204
SKU:
FN-VE-HDPO-204
(No reviews)
Write a Review
Write a Review
Fleet Network
HDMI Splitter Extender With Loop Out And Receivers For 4K YUV 4:4:4 Distribution Up To FN-VE-HDPO-204
MSRP:
$555.95
$555.95
$500.95
Save:
$55.00 (9.89%)
Warranty Information:
Covered by Manufacturer
Condition:
New
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Product Features
Description
Overview

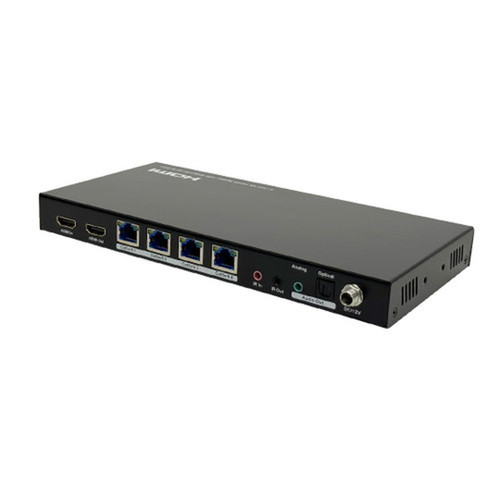

This 1x4 uncompressed HDMI PoC extender/splitter allows you to extend four displays up to 60m away from your source device over CAT6/6a/7 cables at a resolution of 4K@60Hz or 60m/200ft at a resolution of 1080P@60Hz.
Features
- HDMI2.0 splitter extender, bandwidth up to 18Gbps, deep color up to 4K@60Hz 8bit
- Distributes 1 HDMI source (with 1 HDMI loop out) to 4x remote outputs over CATx cable
- Transmission distance up to 60m (197ft) at 4K@60Hz over Cat5e/6 cable
- HDCP2.2/1.4 Compliant
- Support analogue and Toslink SPDIF audio out on both TX and RX side
- Support HDR10, HLG
- Support LPCM2.0/5.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby True HD
- Support Bi-Directional wide band IR
- Support auto downscale 4K@60hz to 1080P at RX end
- Support EDID management
- Support PoC(RX powered by TX)
- Support firmware updating through Micro USB port
- With one built-in reset button for factory reset
Application
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | -5℃ ~ 40℃ |
| Operating Humidity | 5 to 90%RH (No Condensation) |
| Dimensions (L x W x H) | TX: 229.5 x 113.4 x 24 mm RX: 110.2 x 68.3 x 18 mm |
| Power | |
| Power Supply | 12V/2A DC Power Adapter |
| Power Consumption | 12.5W Max. |
| Connector(s) | |
| Transmitter | HDMI Input Female, HDMI Output Female, 4 x RJ45 Female |
| Receiver | HDMI Output Female, RJ45 Female |
| Performance | |
| Input Video Format | 720P/ 1080P/ 4K@60Hz |
| Output Video Format | DTV/HDTV: 480P/ 576P/ 720P/ 1080P/ 4K VESA Resolution |
| Data transfer Speed | 18 Gbps Max. |
| Transmission Distance | 60m (197ft) at 4K@60Hz |
| HDMI Signal | HDMI 2.0, HDCP 2.2/1.4 Compliant |
| Approvals | |
| Power Adapter | c(UL)us |
| Environmental | |
| RoHS | Yes |
| Certification(s) | |
| CE | Yes |
| FCC | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Package Weight | 4.65 lbs |
| Contents | |
| Included in Package | 1 - Transmitter Unit |
| 4 - Receiver Unit | |
| 5 - IR Tx Cables | |
| 5 - IR Rx Cables | |
| 1 - USB Cable | |
| 1 - DC12V/2A DC Power Adapter | |
| 1 - Manual | |
| 10 - Mounting Ears (2pcs for TX; 8pcs for RX) | |
