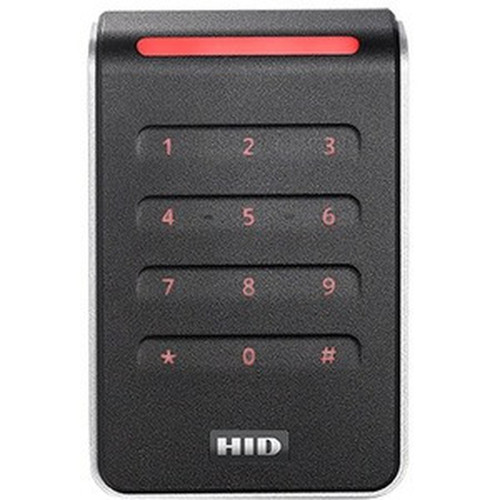

HID 40KNKS-00-0012KL Signo 40K Card Reader/Keypad Access Device - Proximity & Key Code - IP65 - Indoor/Outdoor - 12V DC - Black/Silver
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Signo 40K operates on a 12 V DC power supply and features a 3.94-inch (100 mm) read range for proximity cards. It includes Serial and Wiegand interfaces for direct connection to access control panels, along with Bluetooth for mobile credential management. The device is rated IP65 for dust and water resistance, ensuring reliable performance in varied environmental conditions.
Its compact dimensions—4.78" height, 3.15" width, and 0.85" depth—allow for easy gang box mounting, while the dual-color black and silver finish provides a professional appearance. The device is environmentally compliant with RoHS standards and backed by a lifetime limited warranty.
This section brings together practical product details such as Identification Method, Operating Range, Application/Usage, Bluetooth, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The HID Signo 40K delivers enhanced security through multi-factor authentication, combining proximity card reading with keypad entry to prevent unauthorized access. Its broad compatibility with legacy and modern credential technologies ensures easy integration into diverse access control systems.
Dual Authentication
Supports both proximity card and key code entry for added security layers.
- Reduces fraud risk
- Flexible user access
Environmental Durability
IP65 rating protects against dust and water ingress, suitable for harsh indoor and outdoor environments.
- Reliable in varied conditions
- Long-term performance
Extensive Compatibility
Works with HID Proximity, iCLASS, MIFARE, Seos mobile credentials, and other proximity technologies.
- Easy system integration
- Future-proof investment
Deployment / Use Cases
The Signo 40K is ideal for securing entry points in office buildings, educational institutions, healthcare facilities, and industrial sites where controlled access is critical. Its indoor/outdoor capability makes it suitable for exterior doors, parking gates, and perimeter entrances.
In high-security areas, the dual authentication feature can be configured to require both a proximity card and a PIN, adding an extra layer of protection. The device's gang box mounting simplifies installation in standard electrical boxes, reducing deployment time and costs.
This section brings together practical product details such as Identification Method, Operating Range, Application/Usage, Bluetooth, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Commercial Building Access
Control entry to main lobbies, secure floors, and restricted areas with reliable card and keypad authentication.
Outdoor Perimeter Security
Deploy at gates, garage entrances, and exterior doors with IP65-rated durability against weather elements.
Physical Profile
The Signo 40K features a sleek, low-profile design with a black and silver dual-color finish that blends into modern architectural settings. Its compact footprint—measuring 4.78" x 3.15" x 0.85"—and gang box mounting allow for discreet installation on door frames or walls. The lightweight construction at 5.64 oz ensures easy handling during setup.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4.78" (121.50 mm), 3.15" (80 mm), 0.85" (21.50 mm), 5.64 oz (159.89 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.15" (80 mm)
- Depth
- 0.85" (21.50 mm)
- Height
- 4.78" (121.50 mm)
- Weight
- 5.64 oz (159.89 g)
Highlights
- Dual authentication with proximity card and key code entry
- IP65 rating for dust and water resistance in indoor/outdoor use
- Compatible with HID Proximity, iCLASS, MIFARE, and Seos mobile credentials
- Serial, Wiegand, and Bluetooth interfaces for flexible connectivity
- 12 V DC power input for reliable operation
- Gang box mounting for easy installation
- Black and silver dual-color professional finish
- Lifetime limited warranty for long-term assurance
- RoHS compliant and environmentally friendly
- Compact dimensions: 4.78" H x 3.15" W x 0.85" D
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASSA ABLOY |
| Manufacturer Part Number | 40KNKS-00-0012KL |
| Brand Name | HID |
| Product Line | Signo |
| Product Model | 40K |
| Product Name | Signo 40K Card Reader/Keypad Access Device |
| Product Type | Card Reader/Keypad Access Device |
| Technical Information | |
| Identification Method | Proximity,Key Code |
| Operating Range | 3.94" (100 mm) |
| Application/Usage | Door,Indoor,Outdoor |
| Ingress Protection (IP) Rating | IP65 |
| Network & Communication | |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Serial | Yes |
| Wiegand | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Mount Type | Gang Box Mount |
| Color Family | Dual Color |
| Product Color | Black,Silver |
| Height | 4.78" (121.50 mm) |
| Width | 3.15" (80 mm) |
| Depth | 0.85" (21.50 mm) |
| Weight (Approximate) | 5.64 oz (159.89 g) |
| Miscellaneous | |
| Compatibility | Mobile Credentials powered by Seos® (HID Mobile Access) Seos iCLASS SE iCLASS SR iCLASS MIFARE Classic MIFARE DESFire EV1/EV2 FeliCa Contactless e-Purse Application Specification (CEPAS) Mobile Credentials powered by Seos (HID Mobile Access) HID Proximity Indala Proximity AWID Proximity EM Proximity |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What identification methods does the HID Signo 40K support?
The Signo 40K supports both proximity card reading and key code entry via its integrated keypad. This dual authentication allows users to present a proximity card and enter a PIN for enhanced security, making it suitable for high-access control areas.
Is this device suitable for outdoor installation?
Yes, the Signo 40K is rated IP65 for ingress protection, meaning it is dust-tight and protected against water jets from any direction. This makes it reliable for outdoor use on doors, gates, or other exterior entry points exposed to weather conditions.
What types of credentials are compatible with this reader?
It is compatible with a wide range of credential technologies, including HID Proximity, iCLASS SE/SR, MIFARE Classic, MIFARE DESFire EV1/EV2, FeliCa, CEPAS, and mobile credentials powered by Seos. This broad compatibility ensures integration with existing and modern access control systems.
How is the Signo 40K powered and what are its connectivity options?
The device operates on 12 V DC power and includes Serial and Wiegand interfaces for connecting to access control panels. It also features Bluetooth for managing mobile credentials, providing flexible deployment in wired or wireless configurations.
What mounting options are available for this access device?
The Signo 40K is designed for gang box mounting, allowing it to be installed in standard electrical boxes commonly used in building infrastructure. This simplifies installation and ensures a secure, flush fit on walls or door frames.
What warranty coverage does HID provide for this product?
HID backs the Signo 40K with a lifetime limited warranty, offering long-term assurance against defects in materials and workmanship. This warranty reflects the device's durability and reliability for continuous access control applications.
What connectivity or interface options are available?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
