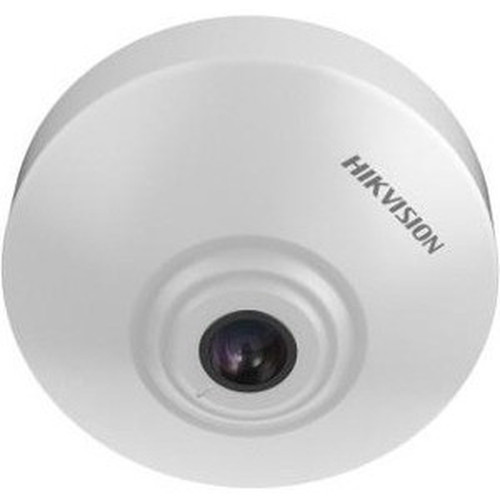

Hikvision IDS-2CD6412FWD/C 2. 1MM 1. 3MP Indoor Network Camera - 1280 x 960 Resolution - People Counting - CMOS Sensor - Wired Connectivity
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The camera uses a CMOS image sensor that balances cost efficiency with reliable HD video performance. It supports multiple video compression formats including H.264, MPEG-4, and MJPEG, providing flexibility for different recording and streaming setups.
Network connectivity is handled through a standard RJ-45 port for wired Ethernet integration, ensuring stable video transmission to NVRs or network storage. The camera includes local storage support via memory card, offering a backup recording option directly at the edge.
This section brings together practical product details such as HD Recording, Image Sensor Type, Color Supported, Effective Camera Resolution, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Exposure Control
Shutter speeds range from 1/100,000 second to 1 second, allowing the camera to adapt quickly to changing light conditions while minimizing motion blur in fast-moving scenes.
Key Product Advantages
Advanced imaging features like defog mode and region of interest (ROI) allow the camera to enhance visibility in challenging environments and prioritize bandwidth for critical areas of the frame. Audio detection and microphone input support add an additional layer of monitoring context.
For buyers comparing similar models, the strongest advantage is usually the balance between dependable day-to-day operation and a simpler rollout experience. That means less time spent troubleshooting fit, compatibility, or user adoption after installation, which is especially important for shared business environments and repeat purchasing decisions.
Deployment / Use Cases
This camera is designed for indoor environments where understanding people movement adds business value. Its compact form factor and multiple mounting options make it suitable for discreet installation on walls, ceilings, or within enclosure boxes.
Retail stores can deploy it at entrances and aisles to count customer traffic, measure peak hours, and analyze dwell times. Office buildings use it to monitor lobby activity, conference room occupancy, and secure area access while gathering utilization metrics.
Security Monitoring
Motion detection, tampering alarm, and face detection capabilities provide robust security monitoring for lobbies, hallways, and storage areas. Password protection and encrypted video streams help maintain data integrity.
Operational Intelligence
Beyond security, the people counting data helps businesses optimize staffing schedules, measure marketing campaign effectiveness, and improve space planning based on actual usage patterns.
Physical Profile
The camera weighs approximately 770 grams and supports both box mounting and wall mounting for flexible installation. Its indoor-rated construction operates reliably in temperatures from -22°F to 140°F (-30°C to 60°C) and up to 95% humidity, handling typical commercial environment conditions.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 770 g. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 770 g
- Length
- 2.1 mm
What's in the Box
The package includes everything needed for immediate deployment and mounting.
Package contents include 1.3 MP Intelligent Indoor People Counting Network Camera 12 VDC Power Supply 3M Double-Sided Tape Strip, 4 x Black Machine Screws Camera Front Cover Camera with 24 Foot Cord Control Box Control Box Mount Focal Length Reference Sheet, 2 x Quick Start Guide Screws Wall Mount Rail for Controller, 1.3 MP Intelligent Indoor People Counting Network Camera. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 1.3-megapixel CMOS sensor delivers 1280 x 960 resolution video
- Built-in people counting algorithms track traffic statistics and direction
- Supports H.264, MPEG-4, and MJPEG video compression formats
- Wired Ethernet connectivity with RJ-45 port for stable network integration
- Local storage via memory card slot for edge recording
- Wide dynamic range and 3D digital noise reduction for clear imaging
- Day/night functionality with back light and highlight compensation
- Motion detection, face detection, and tampering alarm security features
- Box mount and wall mount options for flexible installation
- Indoor rated with operating range of -22°F to 140°F (-30°C to 60°C)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | IDS-2CD6412FWD/C (2.1MM) |
| Brand Name | Hikvision |
| Product Model | IDS-2CD6412FWD/C |
| Product Name | 1.3 MP Intelligent Indoor People Counting Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Effective Camera Resolution | 1.3 Megapixel |
| Video | |
| Video Formats | MPEG-4,MJPEG,H.264,H.264 BP,H.264 (MP),H.264 HP |
| Maximum Video Resolution | 1280 x 960 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.1 mm |
| Lens Included | Yes |
| Maximum Aperture | f/2.2 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1/1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Mount Type | Box Mount,Wall Mount |
| Weight (Approximate) | 770 g |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Wide Dynamic Range,SD Card Local Storage,Day/Night,3D Digital Noise Reduction,Audio Compression,Back Light Compensation (BLC),Defog,Highlight Compensation (HLC),Electronic Image Stabilization,Region of Interest,Microphone In,Cross Line Detection,Audio Detection,Motion Detection,Face Detection,Tampering Alarm,Password Protection |
| Indoor/Outdoor | Indoor |
| Package Contents | 1.3 MP Intelligent Indoor People Counting Network Camera 12 VDC Power Supply 3M Double-Sided Tape Strip 4 x Black Machine Screws Camera Front Cover Camera with 24 Foot Cord Control Box Control Box Mount Focal Length Reference Sheet 2 x Quick Start Guide Screws Wall Mount Rail for Controller |
User Manual
FAQ
What is the video resolution of this Hikvision camera?
The camera captures video at 1280 x 960 resolution, which is 1.3 megapixels. This provides clear, detailed imagery suitable for identifying individuals and monitoring activity in indoor business environments like retail stores, offices, and entryways.
Does this camera have built-in people counting capability?
Yes, it integrates Hikvision's traffic counter algorithms directly into the camera hardware. This allows it to automatically count people and chart their movement direction without requiring external analytics software, making it ideal for retail traffic analysis and space utilization monitoring.
What type of image sensor does this camera use?
It uses a CMOS image sensor, which offers a balance of cost efficiency and performance. CMOS sensors typically consume less power than CCD alternatives while still delivering quality HD video suitable for surveillance applications.
How is this network camera powered?
The camera requires 12 V DC power, supplied through an included power adapter. This standard voltage makes it compatible with common surveillance power supplies and PoE injectors if used with appropriate adapters, though native PoE is not specified.
What mounting options are available for installation?
It supports both box mounting and wall mounting, providing flexibility for different installation scenarios. The package includes screws, a wall mount rail, and double-sided tape for secure attachment in various indoor locations.
What video compression formats does the camera support?
It supports multiple formats including H.264 (with BP, MP, and HP profiles), MPEG-4, and MJPEG. This flexibility allows integration with different recording systems and bandwidth optimization based on storage and network requirements.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
