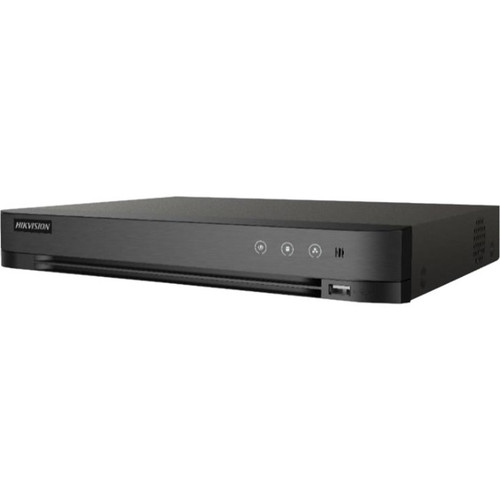

Hikvision DS-7204HQHI-K1-1TB 4-Channel 1080p H. 265 DVR with 1 TB HDD - 4MP Recording - HDMI - Remote Management
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This DVR records video in multiple advanced formats, including H.265 Pro, H.265 Pro+, H.265, H.264+, H.264, and H.265+, providing flexibility for different surveillance needs and compatibility with various camera systems. It handles NTSC and PAL video signal formats, making it suitable for international deployments. The 4-channel capacity supports up to four cameras simultaneously, with each channel capable of 4MP resolution recording.
Network connectivity is handled through a built-in Ethernet port, enabling remote access and management via internet connection. The DVR also features a USB port for easy data transfer, firmware updates, or peripheral connectivity. Video outputs include one HDMI and one VGA port, supporting dual monitor setups or alternative display configurations.
This section brings together practical product details such as Total Number of Channels, Connectivity Technology, HD Recording, Hard Drive Capacity, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The DS-7204HQHI-K1-1TB combines efficient storage management with robust surveillance features in a compact 1U form factor. Its H.265 compression technology significantly reduces storage requirements while maintaining high video quality, extending recording duration on the included 1 TB drive.
Remote Monitoring Capability
Once connected to the internet, this DVR enables full remote management. Users can view live feeds, playback recorded footage, and adjust settings from any location with network access, enhancing surveillance flexibility.
- Internet-based access
- Live view and playback
- Configuration adjustments
Quick Search Functionality
The system architecture supports rapid search through recorded footage, allowing security personnel to quickly locate specific events or timeframes without extensive manual scanning.
- Time-based search
- Event-based filtering
- Efficient review process
Deployment / Use Cases
This 4-channel DVR is ideal for small business security systems, retail store surveillance, office building monitoring, and residential security applications. Its compact 1U design makes it suitable for rack mounting in server rooms or network closets, while the low 6W power consumption ensures energy-efficient operation.
The system effectively addresses entry-level to mid-range surveillance requirements where four cameras provide adequate coverage. Common deployments include front and back door monitoring, cash register surveillance, warehouse entry points, and perimeter security for small properties. The remote management capability makes it particularly valuable for multi-location businesses or properties where on-site security personnel may not be continuously present.
Physical Profile
Measuring 12.40" wide, 9.53" deep, and 1.77" high (315 mm x 242 mm x 45 mm), this DVR features a standard 1U rack-mountable form factor that integrates seamlessly into existing server infrastructure. The compact dimensions conserve valuable rack space while providing full DVR functionality. The unit weighs approximately 1.16 kg, making it lightweight for installation and maintenance. The low-profile design includes ventilation for optimal thermal management during continuous operation.
- Width
- 12.40" (315 mm)
- Depth
- 9.53" (242 mm)
- Height
- 1.77" (45 mm)
- Weight
- 1.16 kg
Highlights
- 4-channel capacity for small-to-mid range surveillance requirements
- Pre-installed 1 TB hard drive for immediate recording capability
- H.265 and H.264 video compression for efficient storage usage
- Supports up to 4MP resolution at 30 fps for clear footage
- HDMI and VGA outputs for flexible display connectivity
- Remote management via internet connection for off-site monitoring
- USB port for easy data transfer and peripheral connectivity
- Compact 1U rack-mountable form factor (12.40" W x 9.53" D x 1.77" H)
- Low 6W power consumption for energy-efficient operation
- Audio input and output ports for integrated audio surveillance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-7204HQHI-K1-1TB |
| Brand Name | Hikvision |
| Product Line | Turbo HD |
| Product Series | DS-7200HQHI-K1 |
| Product Model | DS-7204HQHI-K1 |
| Product Name | 4-channel 1080p 1U H.265 DVR |
| Product Type | Video Surveillance Station |
| Technical Information | |
| Total Number of Channels | 4 |
| Connectivity Technology | Wired |
| HD Recording | Yes |
| System Components | Digital Video Recorder |
| Storage | |
| Hard Drive Capacity | 1 TB |
| Video | |
| Video Formats | H.265 Pro,H.265 Pro+,H.265,H.264+,H.264,H.265+ |
| Video Signal Format | NTSC,PAL |
| Maximum Resolution | 4MP |
| Maximum Frame Rate | 30 fps |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Composite Video In | Yes |
| Composite Video Out | Yes |
| Total Number of Audio In Ports | 1 |
| Total Number of Audio Out Ports | 1 |
| Number of VGA Out | 1 |
| HDMI | Yes |
| Power Description | |
| Power Consumption | 6 W |
| Physical Characteristics | |
| Height | 1.77" (45 mm) |
| Width | 12.40" (315 mm) |
| Depth | 9.53" (242 mm) |
| Weight (Approximate) | 1.16 kg |
User Manual
FAQ
How many cameras can I connect to this DVR?
The Hikvision DS-7204HQHI-K1-1TB supports up to 4 cameras simultaneously. This 4-channel capacity makes it suitable for small-to-mid range surveillance applications such as retail stores, small offices, or residential properties where comprehensive coverage with a limited number of cameras is required.
What is the maximum recording resolution supported?
This DVR supports recording at up to 4MP resolution. This provides detailed video footage that captures clear images for security monitoring and review purposes. The 4MP capability combined with 30 frames per second recording ensures smooth, high-quality surveillance video.
Does this DVR come with storage included?
Yes, the DS-7204HQHI-K1-1TB includes a pre-installed 1 TB hard drive. This provides immediate storage capacity for continuous recording without requiring additional hardware purchases. The 1 TB capacity offers substantial recording time, especially when using the efficient H.265 compression format.
Can I access this DVR remotely?
Yes, this DVR features remote management capabilities. Once connected to your network via the Ethernet port, you can access the system from any internet-connected device. This allows for live viewing, playback of recorded footage, and system configuration adjustments from off-site locations.
What video compression formats does this DVR support?
The DVR supports multiple advanced video compression formats including H.265 Pro, H.265 Pro+, H.265, H.264+, H.264, and H.265+. These formats provide efficient storage utilization while maintaining video quality. H.265 compression is particularly effective at reducing file sizes compared to older compression methods, extending recording duration on the available storage.
What are the physical dimensions of this DVR?
The DVR measures 12.40" wide, 9.53" deep, and 1.77" high (315 mm x 242 mm x 45 mm). This compact 1U form factor is designed for standard rack mounting, making it suitable for installation in server rooms or network closets. The unit weighs approximately 1.16 kg, facilitating easy handling during installation.
What storage is included?
The system includes 1 TB of storage for applications, files, and everyday business data.
