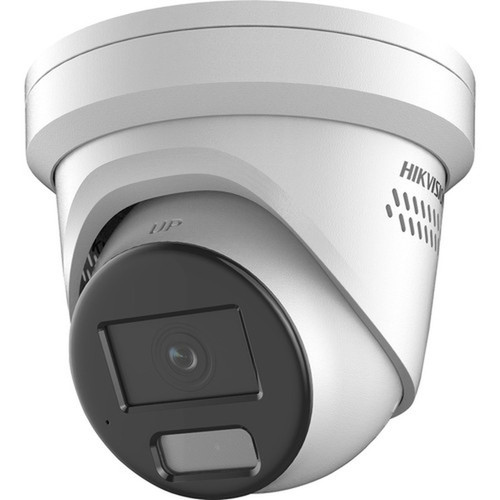

Hikvision DS-2CD2347G2-LSU/SL 2. 8MM 4MP Outdoor ColorVu Turret Camera - 2. 8mm Fixed Lens - Color Night Vision to 30m - IP67 - 2688 x 1520
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The camera captures 4MP video at 2688x1520 resolution with a maximum frame rate of 30 fps, ensuring smooth, detailed footage for identification and evidence. The CMOS sensor delivers high-quality imaging with lower power consumption compared to CCD alternatives. Video is encoded in multiple formats including H.265, H.264, and Motion JPEG, offering flexibility for different recording and streaming requirements.
Exposure control ranges from 1/100000 second to 1/3 second, accommodating varying lighting conditions from bright sunlight to dim environments. The f/1.0 maximum aperture maximizes light intake for superior low-light performance. The camera's extended color night vision utilizes advanced imaging processing to maintain color accuracy at distances up to 30 meters, providing clearer identification compared to infrared-only systems.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This camera combines high-resolution imaging with intelligent features to deliver a comprehensive security solution. The ColorVu technology ensures 24/7 color video, enhancing detail recognition in low-light scenarios where traditional cameras switch to monochrome. The wide dynamic range and backlight compensation maintain image clarity in challenging lighting conditions, such as entrances with strong backlighting.
Advanced Detection Capabilities
Built-in human and vehicle detection algorithms distinguish between relevant motion and environmental changes, reducing false alerts and focusing security attention on meaningful events.
- Human Detection
- Vehicle Detection
- Cross Line Detection
- Motion Detection
Robust Environmental Design
With an IP67 rating, the camera is fully protected against dust ingress and water immersion up to 1 meter for 30 minutes, ensuring durability in outdoor installations.
- IP67 Rated
- Water Resistant
- Dust Resistant
- Wide Temperature Range
Deployment / Use Cases
The DS-2CD2347G2-LSU/SL 2.8MM is versatile for various commercial and institutional surveillance needs. Its outdoor rating and multiple mounting options make it ideal for perimeter security, where its wide field of view and color night vision provide continuous monitoring of fences, gates, and access points. For parking facilities, the vehicle detection feature helps monitor traffic flow and identify incidents without requiring constant manual review.
In retail environments, the camera supports loss prevention with clear identification of individuals and activities, even in low-light conditions after hours. The built-in audio enables communication for remote assistance or deterrent announcements. For educational or corporate campuses, the tampering alarm and HTTPS encryption ensure physical and data security, while the easy integration with Hikvision and third-party NVRs simplifies system expansion.
Perimeter & Access Control
Monitor building entrances, gates, and fences with color video day and night, using human detection to alert security personnel to unauthorized access attempts.
Parking & Traffic Monitoring
Deploy in parking lots or driveways to capture license plates and vehicle movements, with vehicle detection filtering out irrelevant motion like foliage or animals.
Physical Profile
The turret design offers a discreet profile with a diameter of 5.44 inches (138.3 mm) and weight of 1.68 pounds (760 g), facilitating easy installation on various surfaces. It supports wall, corner, pole, pendant, and junction box mounting, providing flexibility for different architectural requirements. The durable construction withstands temperatures from -30°C to 60°C and humidity up to 95%, ensuring reliable performance in diverse climates.
- Weight
- 1.68 lb (760 g)
- Length
- 2.8 mm (0.11")
Highlights
- 4MP resolution (2688x1520) for detailed video identification
- ColorVu technology provides full-color night vision up to 30 meters
- Fixed 2.8mm lens with 111.9° horizontal field of view
- IP67 rated for outdoor use in harsh weather conditions
- Supports H.265+ and H.264+ compression for efficient storage
- Built-in human and vehicle detection reduces false alarms
- Two-way audio with microphone and speaker for communication
- Multiple mounting options: wall, corner, pole, pendant, junction box
- Wide operating temperature range: -30°C to 60°C
- 36-month limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CD2347G2-LSU/SL 2.8MM |
| Brand Name | Hikvision |
| Product Line | Performance |
| Product Model | DS-2CD2347G2-LSU/SL |
| Product Name | 4 MP ColorVu Audio Alarm & Strobe Light Fixed Turret Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Color |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | Horizontal FOV 111.9°, Vertical FOV 60.5°, Diagonal FOV 133.6 |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.265,H.264,H.265+,H.264+,Motion JPEG,H.264 BP,H.264 (MP),H.264 HP,H.265 (MP) |
| Maximum Video Resolution | 2688 x 1520 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Lens Mount Type | M16 |
| Maximum Aperture | f/1 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1/3 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Mount Type | Wall Mount,Corner Mount,Pole Mount,Pendant Mount,Junction Box Mount |
| Form Factor | Turret |
| Durability | Water Resistant,Dust Resistant |
| Diameter | 5.44" (138.30 mm) |
| Weight (Approximate) | 1.68 lb (760 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Wide Dynamic Range,Region of Interest,White Balance,Day/Night,Back Light Compensation (BLC),Highlight Compensation (HLC),3D Digital Noise Reduction,Built-in Microphone,Built-in Speaker,Motion Detection,Tampering Alarm,Cross Line Detection,Human Detection,Vehicle Detection,Password Protection,HTTPS Encryption |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP67 |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 36 Month |
User Manual
FAQ
What is the maximum resolution and frame rate of this camera?
The camera captures 4MP video at a maximum resolution of 2688 x 1520 pixels with a frame rate of 30 frames per second. This ensures smooth, high-definition footage suitable for identifying details like faces or license plates in both live viewing and recorded playback.
How does the color night vision work and what is its range?
The ColorVu technology uses a high-sensitivity sensor and advanced image processing to maintain color video in low-light conditions without switching to infrared monochrome. It provides color night vision up to 30 meters (98.43 feet), offering clearer identification compared to traditional black-and-white night vision systems.
What are the mounting options for this turret camera?
This camera supports versatile mounting including wall, corner, pole, pendant, and junction box installations. This flexibility allows it to be deployed in various outdoor locations such as building exteriors, fences, parking structures, or under eaves to achieve optimal viewing angles.
Is this camera suitable for outdoor use in extreme weather?
Yes, with an IP67 ingress protection rating, the camera is dust-tight and can withstand immersion in water up to 1 meter for 30 minutes. It operates reliably in temperatures from -30°C to 60°C (-22°F to 140°F) and humidity up to 95%, making it durable for harsh outdoor environments.
What video compression formats are supported?
The camera supports H.265, H.264, H.265+, H.264+, Motion JPEG, H.264 BP, H.264 (MP), H.264 HP, and H.265 (MP) formats. The H.265+ and H.264+ variants offer enhanced compression efficiency, reducing bandwidth and storage requirements while maintaining video quality.
Does this camera include audio capabilities?
Yes, it features a built-in microphone and speaker for two-way audio communication. This allows for remote listening and speaking, useful for applications like intercom functionality, deterrent announcements, or verifying situations audibly in addition to visual monitoring.
What processor does this product use?
Hikvision 4 Megapixel Outdoor Color Turret Network Camera With Extended Night Vision For Low Light Monitoring 2.8MM DS-2CD2347G2-LSU/SL 2.8MM is positioned around the listed processor configuration, giving buyers a clearer view of expected performance for business workloads and everyday deployment needs.
