Hikvision DS-2CD2387G2P-LSU/SL 4MM 8MP Turret Network Camera - Color Night Vision - 180° FOV - PoE - IP67 - White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a CMOS sensor that balances power efficiency with high-definition video output, operating at a maximum frame rate of 20 fps for smooth motion capture. The imaging system includes two sensors working in tandem to enhance low-light performance and dynamic range, supported by features like 3D digital noise reduction, wide dynamic range, and backlight compensation. These technologies work together to maintain image integrity in challenging lighting scenarios, such as direct sunlight or shadowed entryways.
Video encoding supports multiple formats including H.265+, H.265, H.264+, H.264, and MJPEG, offering flexibility for integration with various network video recorders and management systems. The camera's exposure control ranges from 1/100,000 second to 1/3 second, allowing it to adapt quickly to changing light conditions while minimizing motion blur. Remote management capabilities enable administrators to configure settings, view live feeds, and review footage from any networked location.
Key Product Advantages
This Hikvision turret camera stands out with its combination of high-resolution imaging, robust construction, and intelligent features designed for reliable surveillance. The color night vision capability ensures that security personnel can identify details like clothing colors or vehicle makes during nighttime monitoring, enhancing investigative accuracy. The IP67 rating guarantees protection against dust ingress and temporary immersion in water, making the camera suitable for outdoor installations in harsh weather conditions.
Enhanced Low-Light Performance
ColorVu technology and a large f/1.0 aperture enable full-color video in near-darkness, providing more usable footage than infrared-only systems.
- Dual sensors for improved light capture
- Eliminates monochrome night vision limitations
Efficient Bandwidth Management
H.265+ compression reduces file sizes by up to 50% compared to H.264, decreasing storage costs and network load while maintaining video quality.
- Supports multiple video formats
- Ideal for long-term recording setups
Durable Outdoor Design
Built to withstand temperatures from -22°F to 140°F and rated IP67 for dust and water resistance, ensuring year-round operation in diverse environments.
- Turret form factor deters tampering
- White finish blends with architectural surfaces
Deployment / Use Cases
The DS-2CD2387G2P-LSU/SL 4MM is versatile enough for a range of surveillance scenarios where detailed imagery and reliable performance are paramount. Its 180° panoramic view makes it excellent for monitoring wide-open spaces such as school courtyards, factory floors, or retail store interiors, reducing the number of cameras needed for complete coverage. The color night vision is particularly valuable for perimeter security at facilities like logistics centers or corporate campuses, where identifying suspicious activity after dark requires more than silhouette detection.
For urban or suburban settings, this camera's PoE support simplifies installation by delivering both power and data over a single Ethernet cable, minimizing wiring complexity. It integrates seamlessly with Hikvision's NVR systems and third-party VMS platforms, supporting motion detection, password protection, and SD card local storage for standalone or backup recording. Common applications include entrance monitoring, parking lot surveillance, asset protection in warehouses, and traffic observation at intersections.
Commercial Perimeter Security
Deploy along building exteriors or fence lines to capture license plates, facial features, and activity in color, day or night.
Retail Loss Prevention
Install above sales floors or stockrooms to monitor customer and employee behavior with high-resolution clarity, aiding in theft deterrence and incident review.
Physical Profile

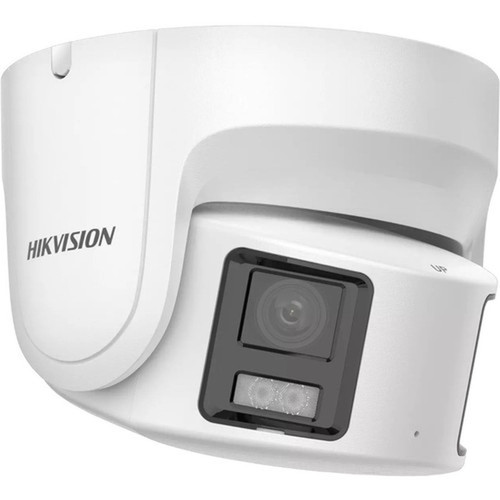

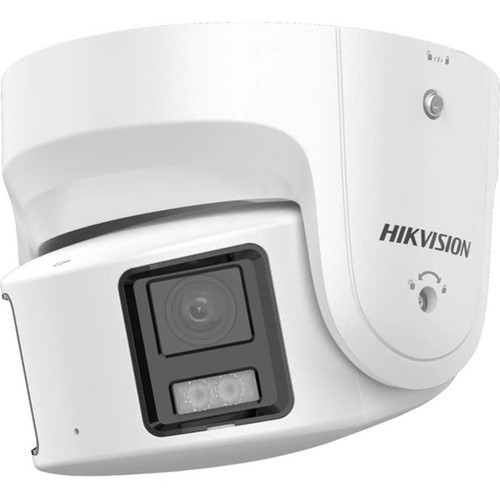

This turret camera features a compact, dome-like design with a 6.10-inch diameter and weight of 2.45 pounds, offering a low-profile appearance that blends into most environments. The white finish provides a neutral aesthetic suitable for both indoor and outdoor mounting on walls or ceilings. The M16 lens mount ensures secure attachment of the included fixed lens, while the turret form factor helps deter vandalism and weather exposure. Installation is straightforward with standard mounting hardware, and the PoE capability reduces the need for separate power outlets near the camera location.
- Weight
- 2.45 lb (1110 g)
- Length
- 4 mm (0.16")
Highlights
- 8-megapixel resolution delivers 5120 x 1440 video for crisp, detailed surveillance footage
- Color night vision provides full-color imaging up to 98.43 feet (30 meters) in low light
- 180° horizontal field of view covers wide areas with a single camera, reducing installation costs
- PoE support allows power and data over one Ethernet cable for simplified setup
- IP67 rating ensures resistance to dust and water for reliable outdoor operation
- H.265+ compression reduces bandwidth and storage needs without sacrificing video quality
- CMOS sensor offers power-efficient performance with enhanced HD video capabilities
- Operating temperature range of -22°F to 140°F suits diverse climate conditions
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CD2387G2P-LSU/SL 4MM |
| Brand Name | Hikvision |
| Product Line | Pro |
| Product Model | DS-2CD2387G2P-LSU/SL |
| Product Name | 8 MP Panoramic ColorVu Fixed Turret Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Color |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | horizontal FOV: 180°, vertical FOV: 44° |
| Effective Camera Resolution | 8 Megapixel |
| Number of Sensors | 2 |
| Video | |
| Video Formats | H.265+,H.265,H.264+,H.264,MJPEG,H.264 BP,H.264 (MP),H.264 HP,H.265 (MP) |
| Maximum Video Resolution | 5120 x 1440 |
| Maximum Frame Rate | 20 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 4 mm (0.16") |
| Lens Included | Yes |
| Lens Mount Type | M16 |
| Maximum Aperture | f/1 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1/3 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Form Factor | Turret |
| Durability | Water Resistant,Dust Resistant |
| Diameter | 6.10" (155 mm) |
| Weight (Approximate) | 2.45 lb (1110 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | SD Card Local Storage,Day/Night,White Balance,Gain Control,Highlight Compensation (HLC),Back Light Compensation (BLC),3D Digital Noise Reduction,Motion Detection,Password Protection,Wide Dynamic Range |
| Ingress Protection Rating | IP67 |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What is the maximum resolution of this Hikvision camera?
This camera captures video at up to 5120 x 1440 resolution, which is 8 megapixels. This high resolution provides detailed imagery that can be zoomed in digitally without significant loss of clarity, making it effective for identifying faces, license plates, or other fine details in surveillance footage.
How does the color night vision work?
The camera uses Hikvision's ColorVu technology with dual sensors and a large f/1.0 aperture to capture more ambient light, enabling full-color video in low-light conditions. Unlike traditional infrared night vision that produces black-and-white images, this system maintains color accuracy up to a distance of 98.43 feet (30 meters), enhancing identification capabilities at night.
What power options does this camera support?
It supports both 12V DC power and Power over Ethernet (PoE). PoE allows the camera to receive power and data through a single Ethernet cable, simplifying installation by eliminating the need for a separate power outlet near the mounting location. This flexibility makes it suitable for new or retrofit surveillance setups.
Is this camera suitable for outdoor use?
Yes, with an IP67 ingress protection rating, the camera is dust-tight and can withstand temporary immersion in water. It operates in temperatures from -22°F to 140°F (-30°C to 60°C) and up to 95% humidity, making it durable enough for outdoor installations in various weather conditions, from cold winters to hot summers.
What is the field of view of this camera?
The camera offers a panoramic 180° horizontal field of view and a 44° vertical field of view. This wide coverage reduces the number of cameras needed to monitor large areas like parking lots or warehouses, providing cost-effective surveillance with fewer blind spots.
Does this camera support local storage?
Yes, it includes SD card local storage support, allowing footage to be recorded directly to a memory card. This feature provides backup recording in case of network issues or integration with network video recorders for centralized storage, adding redundancy to your surveillance system.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
