Product Features
Technical Overview
This camera supports multiple video formats including H.265, H.264, H.265+, H.264+, and MJPEG, offering flexibility for different recording and streaming needs. The lens features an M12 mount with f/1.6 maximum aperture for good low-light performance, complemented by exposure controls with shutter speeds from 1/100000 to 1/3 second. Video processing includes 3D digital noise reduction, back light compensation, and highlight compensation to maintain image quality in challenging lighting.
Network connectivity is provided through a wired RJ-45 interface, supporting remote management for configuration and monitoring. Storage options include memory card support for local recording. The camera operates in temperatures from -10°C to 50°C and up to 95% humidity, ensuring reliability in various indoor environments.
This section brings together practical product details such as HD Recording, Image Sensor Type, Color Supported, Field of View, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The camera's 4MP resolution captures detailed 2688x1520 video at 30 fps, providing clear evidence-grade footage. The fixed 2.8mm lens offers a wide 122° diagonal field of view for comprehensive area coverage without requiring adjustment. Built-in security features including password protection and HTTPS encryption help protect video streams and camera access from unauthorized interception.
AcuSense Deep Learning
Utilizes deep learning algorithms to classify human and vehicle targets, significantly reducing false alarms and focusing security resources on relevant events.
- Human/vehicle classification
- Improved alarm accuracy
- Reduced false alerts
High-Efficiency Video Compression
Supports H.265 and H.264 compression with plus variants that reduce bandwidth and storage requirements while maintaining video quality.
- H.265/H.264 support
- Bandwidth optimization
- Storage efficiency
Deployment / Use Cases
This camera is particularly effective for indoor applications requiring reliable surveillance with intelligent analytics. The AcuSense technology makes it suitable for environments where distinguishing between people, vehicles, and other motion is critical for security response. The wired connectivity ensures stable network performance for continuous monitoring without wireless interference concerns.
Installation is straightforward with in-ceiling mounting that keeps the camera unobtrusive while providing optimal viewing angles. The mini dome design offers some vandal resistance and blends with modern ceilings. Remote management capabilities allow security personnel to configure and monitor the camera from centralized software, supporting scalable deployment across multiple locations.
Retail Surveillance
Monitor store aisles, entrances, and cash registers with color video and human/vehicle classification to track customer flow and prevent theft.
- Color video evidence
- People counting potential
- Theft deterrence
Office Security
Secure lobbies, hallways, and sensitive areas with discreet in-ceiling mounting and remote management for centralized monitoring.
- Discreet installation
- Central management
- Access control integration

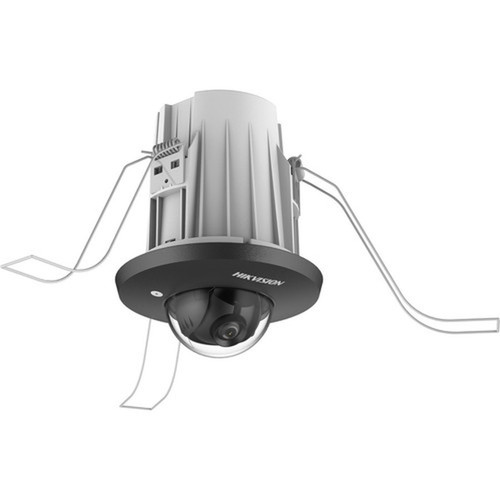

Physical Profile
The camera features a compact mini dome form factor with 3.70" (93.90 mm) diameter and lightweight 155 g construction for easy installation. The in-ceiling mount type allows for flush mounting that maintains ceiling aesthetics while providing the camera's 122° field of view. The design includes environmental sealing that supports operation in temperatures from -10°C to 50°C and up to 95% humidity, suitable for various indoor conditions including warehouses, retail spaces, and office buildings.
- Weight
- 155 g
- Length
- 2.8 mm
Highlights
- 4MP resolution with 2688x1520 maximum video quality
- AcuSense deep learning for human/vehicle classification
- Fixed 2.8mm lens with 122° diagonal field of view
- H.265 and H.264 video compression support
- Wired RJ-45 connectivity with remote management
- In-ceiling mounting mini dome form factor
- CMOS sensor for color video in various lighting
- Built-in microphone for audio capture
- Operates in -10°C to 50°C temperature range
- Password protection and HTTPS encryption security
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS2CD2E43G2U28MM |
| Brand Name | Hikvision |
| Product Line | AcuSense |
| Product Series | Pro |
| Product Model | DS-2CD2E43G2-U |
| Product Name | 4 MP AcuSense In-Ceiling Fixed Mini Dome Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.265,H.264,H.265+,H.264+,H.264 BP,H.264 (MP),H.264 HP,H.265 (MP),MJPEG |
| Maximum Video Resolution | 2688 x 1520 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1/3 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mount Type | In-ceiling |
| Form Factor | Mini Dome |
| Diameter | 3.70" (93.90 mm) |
| Weight (Approximate) | 155 g |
| Environmental Conditions | |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Built-in Microphone,Region of Interest,Audio Compression,Password Protection,HTTPS Encryption,Wide Dynamic Range,Day/Night,Back Light Compensation (BLC),Highlight Compensation (HLC),3D Digital Noise Reduction |
User Manual
FAQ
What is the resolution of this Hikvision camera?
This Hikvision camera provides 4MP resolution with maximum video resolution of 2688 x 1520 pixels. This delivers detailed, evidence-grade video suitable for identifying people, vehicles, and objects in surveillance footage. The 4MP sensor captures more detail than traditional 1080p cameras while maintaining efficient bandwidth usage through H.265/H.264 compression.
How does the AcuSense technology work?
AcuSense technology uses deep learning algorithms to analyze video and distinguish between human targets, vehicle targets, and other motion. This classification capability significantly reduces false alarms by filtering out irrelevant motion like moving shadows or animals, allowing security systems to focus on genuine security events. The technology operates directly on the camera, providing intelligent analytics at the edge without requiring additional server processing.
What type of lens does this camera have?
This camera features a fixed 2.8mm lens with M12 mount and f/1.6 maximum aperture. The fixed focal length provides consistent coverage without adjustment needs, while the wide aperture supports better performance in low-light conditions. The lens offers a 122° diagonal field of view (103° horizontal, 55° vertical) for comprehensive area monitoring from a single installation point.
How is this network camera connected and powered?
This camera uses wired connectivity through an RJ-45 network interface. It requires standard Ethernet cabling for both data transmission and power when used with Power over Ethernet (PoE) equipment, though specific PoE support details should be verified with the manufacturer documentation. The wired connection ensures reliable, uninterrupted video streaming compared to wireless alternatives that might experience interference.
What video compression formats are supported?
The camera supports H.265, H.264, H.265+, H.264+, H.264 BP, H.264 (MP), H.264 HP, H.265 (MP), and MJPEG formats. H.265 and H.264 provide efficient compression that reduces bandwidth and storage requirements, while the plus variants offer even greater efficiency. MJPEG support allows for individual frame capture when needed. This format flexibility ensures compatibility with various recording systems and network conditions.
What are the mounting options for this camera?
This camera is designed for in-ceiling mounting with a mini dome form factor. The compact 3.70" diameter and 155 g weight make installation straightforward, creating a discreet surveillance presence that blends with ceiling aesthetics. The mounting hardware is typically included, and the design allows for adjustment during installation to achieve the desired viewing angle within the camera's 122° field of view.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
