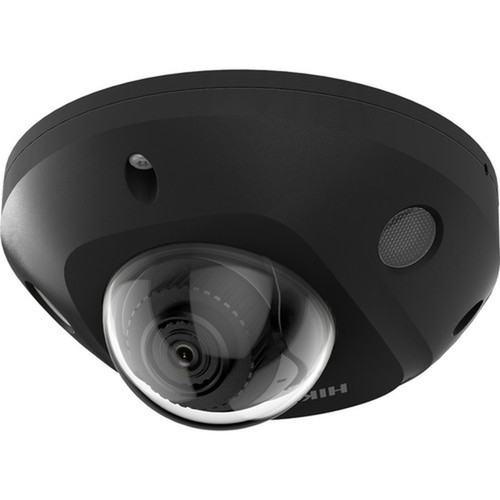

Hikvision DS-2CD2543G2-IS(4MM) DS-2CD2543G2-IS - 4MM AcuSense Pro 4MP Mini Dome Network Camera - 4mm Lens - 2688 x 1520 - Color IR Night Vision - IP67
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The camera captures high-definition video using a 4-megapixel CMOS sensor, supporting H.265+, H.265, H.264+, H.264, and MJPEG compression formats for efficient bandwidth and storage management. Its fixed 4mm lens with an f/1.6 aperture provides a wide field of view of 83.7° horizontal, 43.0° vertical, and 100.3° diagonal, ensuring comprehensive coverage in confined spaces.
Advanced imaging features include 3D digital noise reduction, wide dynamic range, back light compensation, and highlight compensation, which enhance video clarity in challenging lighting conditions. The camera supports day/night functionality with infrared night vision extending up to 30 meters, enabling 24/7 monitoring.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The DS-2CD2543G2-IS(4MM) excels in delivering precise surveillance with minimal false alarms, thanks to its AcuSense human and vehicle classification. This intelligent filtering allows security personnel to focus on relevant events, enhancing response times and overall system effectiveness.
AcuSense Technology
Utilizes deep learning to distinguish between human and vehicle targets, reducing nuisance alarms and improving monitoring accuracy.
- Human target classification
- Vehicle target classification
- Reduced false alarms
Robust Build Quality
Designed to endure tough conditions with IP67 waterproof and dustproof ratings and IK08 vandal resistance.
- IP67 rated
- IK08 impact protection
- Suitable for outdoor use
Flexible Installation
Supports multiple mounting options including corner, pendant, pole, junction box, and wall mounts for versatile deployment.
- Five mount types
- Mini dome form factor
- Easy integration
Deployment / Use Cases
This camera is ideal for small to medium-sized business environments requiring reliable surveillance with intelligent analytics. Its compact size and versatile mounting make it perfect for retail stores, offices, warehouses, and entry points where space is limited but coverage is critical.
Common applications include monitoring entrances and exits, parking lots, corridors, and perimeter areas. The AcuSense technology is particularly valuable in high-traffic locations where distinguishing between people and vehicles helps prioritize security alerts. The camera's rugged design also suits industrial settings or outdoor installations exposed to weather and potential tampering.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The mini dome form factor measures 4.33 inches (110 mm) in diameter and weighs approximately 380 grams, offering a discreet and low-profile installation. Its durable construction includes water-resistant, dust-resistant, and vandal-resistant features, ensuring long-term performance in varied conditions. The compact design facilitates easy mounting in corners, on walls, or from ceilings without obstructing sightlines.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 380 g. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 380 g
- Length
- 4 mm
Highlights
- 4-megapixel resolution (2688 x 1520) for clear HD video
- AcuSense technology classifies human and vehicle targets to reduce false alarms
- Infrared night vision up to 30 meters for 24/7 monitoring
- IP67 and IK08 ratings for weather and vandal resistance
- Fixed 4mm lens with wide 100.3° diagonal field of view
- Supports H.265+ compression for efficient bandwidth usage
- Multiple mounting options: corner, pendant, pole, junction box, wall
- Built-in microphone for audio recording
- SD card local storage support
- Operating temperature range from -30°C to 60°C
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CD2543G2-IS 4MM |
| Brand Name | Hikvision |
| Product Line | AcuSense |
| Product Series | Pro |
| Product Model | DS-2CD2543G2-IS |
| Product Name | 4 MP AcuSense Built-in Mic Fixed Mini Dome Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | horizontal FOV 83.7°, vertical FOV 43.0°, diagonal FOV 100.3° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.265+,H.265,H.264+,H.264,MJPEG |
| Maximum Video Resolution | 2688 x 1520 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 4 mm |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1/30 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mount Type | Corner Mount,Pendant Mount,Pole Mount,Junction Box Mount,Wall Mount |
| Form Factor | Mini Dome |
| Durability | Water Resistant,Dust Resistant,Vandal Resistant |
| Diameter | 4.33" (110 mm) |
| Weight (Approximate) | 380 g |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Built-in Microphone,Audio Compression,Password Protection,HTTPS Encryption,Day/Night,Back Light Compensation (BLC),Highlight Compensation (HLC),3D Digital Noise Reduction,Wide Dynamic Range,Motion Detection,Tampering Alarm,Cross Line Detection,Face Detection,White Balance,Privacy Masking,SD Card Local Storage |
| Impact Protection Rating | IK08,IK8 |
| Ingress Protection Rating | IP67 |
User Manual
FAQ
What is the resolution of this Hikvision camera?
The camera delivers 4-megapixel video at a maximum resolution of 2688 x 1520 pixels, providing sharp and detailed imagery suitable for identifying faces and license plates in surveillance footage.
How does the AcuSense technology work?
AcuSense uses deep learning algorithms to analyze video and classify moving objects as either human or vehicle targets. This reduces false alarms from non-relevant movements like animals or foliage, allowing security teams to focus on genuine threats.
What is the night vision capability of this camera?
It features infrared night vision with a range of up to 30 meters (98.43 feet), enabling clear monochrome video in complete darkness. The camera automatically switches between color day mode and infrared night mode based on lighting conditions.
Is this camera suitable for outdoor use?
Yes, with an IP67 rating for waterproof and dustproof protection and an IK08 rating for impact resistance, it is built to withstand harsh outdoor environments, including rain, dust, and potential vandalism.
What mounting options are available?
The camera supports five mounting types: corner mount, pendant mount, pole mount, junction box mount, and wall mount. This flexibility allows installation in various locations such as ceilings, walls, or corners to optimize viewing angles.
Does this camera support local storage?
Yes, it includes SD card local storage support, allowing video to be recorded directly to a memory card. This provides a backup or primary recording option without relying solely on network video recorders.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
