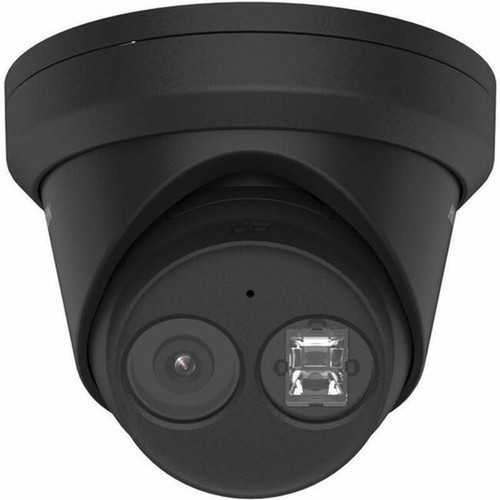

Hikvision DS-2CD2343G2-IU 2. 8MM -B AcuSense 4MP Outdoor Turret Network Camera - 2. 8mm Lens - Color - Night Vision - IP67 - PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera records in H.264, H.265, and MJPEG video formats, offering flexibility for storage and bandwidth management. The CMOS sensor balances power efficiency with high-definition output, and features like 3D noise reduction, backlight compensation, and highlight compensation optimize image quality under varying lighting conditions.
Network connectivity is handled through Fast Ethernet with comprehensive protocol support including TCP/IP, HTTP, HTTPS, RTSP, and ONVIF. Remote management capabilities allow administrators to configure and monitor the camera from a central location. Local storage is supported via microSD card, providing an additional recording option alongside network video recorder (NVR) integration.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The AcuSense technology enhances surveillance by reducing false alarms through accurate detection filtering. This camera combines high-resolution imaging with robust construction for dependable outdoor performance.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Enhanced Image Quality, Durable Outdoor Design.
Enhanced Image Quality
Features like backlight compensation, 3D noise reduction, and wide dynamic range ensure clear footage in challenging lighting, from bright daylight to low-light scenarios.
- Backlight Compensation (BLC)
- Highlight Compensation (HLC)
- 3D Noise Reduction
Durable Outdoor Design
The IP67 rating guarantees protection against dust and water ingress, while the operating temperature range from -22°F to 140°F ensures reliability in extreme weather.
- IP67 Water and Dust Resistant
- Wide Temperature Tolerance
- Turret Form Factor
Deployment / Use Cases
This turret camera is ideal for perimeter security, entryway monitoring, and outdoor commercial surveillance. Its wide field of view and night vision capabilities make it effective for covering large areas such as parking lots, building exteriors, and retail storefronts.
The PoE support allows for streamlined installation in networked security systems, reducing the need for separate power cables. Integration with Hikvision and third-party NVRs through standard protocols ensures compatibility with existing video management infrastructure.
Perimeter Security
Monitor fences, gates, and property boundaries with the wide-angle lens and long-range night vision, providing continuous coverage day and night.
Commercial Entry Points
Install above doors, loading docks, or retail entrances to capture clear footage of individuals and activities, enhanced by features like face detection and privacy masking.
Physical Profile
The camera features a compact turret design with a 5.01-inch diameter and weighs approximately 1.32 pounds. Its black finish blends discreetly into most environments. Mounting options include wall and pendant mounts, offering flexibility for installation on various surfaces. The durable construction ensures long-term performance in outdoor settings.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.32 lb (600 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.32 lb (600 g)
- Length
- 2.8 mm (0.11")
Highlights
- 4-megapixel resolution for detailed 2688 x 1520 video
- Infrared night vision effective up to 98.43 feet (30 meters)
- IP67-rated housing for dust and water resistance
- Fixed 2.8 mm lens with 103° horizontal field of view
- Power over Ethernet (PoE) and 12 V DC power options
- H.264 and H.265 video compression for efficient storage
- Wide operating temperature range from -22°F to 140°F
- Supports microSD card for local storage backup
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CD2343G2-IU 2.8MM -B |
| Brand Name | Hikvision |
| Product Line | AcuSense |
| Product Model | DS-2CD2343G2-IU |
| Product Name | 4 MP AcuSense Fixed Turret Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | No |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/3" |
| Color Supported | Color |
| Field of View | horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.264,H.264+,H.264B,H.264M,H.264H,H.265,H.265+,H.265M,MJPEG |
| Maximum Video Resolution | 2688 x 1520 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1/3 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,NTP,UPnP,SMTP,IGMP,802.1X,QoS,IPv6,UDP,Bonjour,SSL/TLS,PPPoE |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 7 W |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mount Type | Pendant Mount,Wall Mount |
| Form Factor | Turret |
| Durability | Water Resistant,Dust Resistant |
| Diameter | 5.01" (127.30 mm) |
| Weight (Approximate) | 1.32 lb (600 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Day/Night,Highlight Compensation (HLC),Back Light Compensation (BLC),3D Noise Reduction,Video Management System,Mirror,Privacy Masking,White Balance,Face Detection,SD Card Local Storage |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP67 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
User Manual
FAQ
What is the resolution of this Hikvision camera?
The camera delivers 4-megapixel resolution at 2688 x 1520 pixels, providing high-definition video suitable for identifying details like faces or license plates in surveillance footage.
Does this camera support night vision?
Yes, it features infrared night vision with an effective range of up to 98.43 feet (30 meters), ensuring clear monochrome imaging in low-light or complete darkness for 24/7 monitoring.
Is this camera suitable for outdoor use?
Absolutely. With an IP67 ingress protection rating, it is dust-tight and can withstand temporary immersion in water, making it ideal for outdoor installations in various weather conditions.
What power options are available for this camera?
It supports both 12 V DC power and Power over Ethernet (PoE), allowing flexible installation. PoE simplifies setup by delivering power and data through a single Ethernet cable.
What is the field of view of the 2.8 mm lens?
The fixed 2.8 mm lens offers a 103° horizontal, 55° vertical, and 122° diagonal field of view, providing wide coverage ideal for monitoring large areas like driveways or courtyards.
Can this camera store video locally?
Yes, it supports local storage via a microSD card, offering an additional recording option alongside network video recorder (NVR) integration for redundancy and flexibility in video management.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
