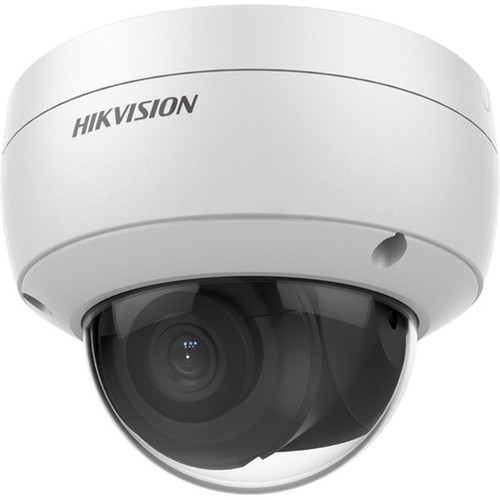

Hikvision PCI-D15F2S AcuSense 5MP Outdoor Dome Network Camera - Color Infrared Night Vision 131ft - H. 265+ - IP67 IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera features a 5-megapixel CMOS sensor that produces 2592x1944 resolution video at 30 fps. The fixed 2.8mm lens with f/1.4 aperture provides a wide field of view covering 97° horizontally, 71° vertically, and 129° diagonally. Video compression includes H.265+, H.265, H.264+, H.264, and MJPEG formats, with H.265+ offering superior bandwidth efficiency for network transmission.
The camera supports remote management through wired Ethernet connectivity and stores footage locally via memory card. Power is supplied through 12V DC input, and the unit operates within a broad temperature range from -22°F to 140°F (-30°C to 60°C) with up to 95% humidity tolerance.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The PCI-D15F2S combines high-resolution imaging with robust environmental protection for reliable outdoor surveillance. Its AcuSense technology enhances security monitoring with intelligent features that reduce false alarms while maintaining detection accuracy.
Advanced Imaging Performance
The 5-megapixel sensor captures detailed video with true color reproduction during daytime and switches to infrared mode for clear night vision up to 131 feet.
- 5MP resolution for detailed identification
- Infrared illumination for 24/7 coverage
- Wide 129° diagonal field of view
Environmental Durability
Rated IP67 for dust and water resistance and IK10 for impact protection, this camera withstands harsh outdoor conditions including extreme temperatures, moisture, and physical tampering.
- IP67 waterproof and dustproof rating
- IK10 vandal resistance
- -22°F to 140°F operating range
Deployment / Use Cases
This outdoor dome camera is designed for perimeter security, parking lots, building entrances, and other exterior surveillance applications where weather resistance and reliable night vision are essential. The dome form factor provides discreet monitoring while the multiple mounting options offer installation flexibility.
The camera integrates seamlessly into existing network video systems and supports various video management platforms. Its memory card storage option provides local recording capability for standalone deployments or backup recording in networked environments. The wired Ethernet connection ensures stable network transmission for remote viewing and management.
Perimeter Security
Monitor building exteriors, fences, and property boundaries with the camera's wide field of view and 131-foot night vision capability.
Parking and Lot Surveillance
Provide 24/7 coverage of parking areas, loading docks, and outdoor storage spaces with the weatherproof dome housing.
Physical Profile
The camera features a compact dome design measuring 4.76 inches (121 mm) in diameter and weighing approximately 1.30 pounds (590 g). Its white housing blends with building exteriors while providing discreet surveillance. Multiple mounting options include junction box, wall, pendant, corner, and pole mounts for flexible installation in various locations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.30 lb (590 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.30 lb (590 g)
- Length
- 2.8 mm (0.11")
Highlights
- 5-megapixel resolution delivers sharp 2592x1944 video
- Infrared night vision covers distances up to 131 feet
- IP67 weatherproof and IK10 vandal-resistant rating
- H.265+ compression reduces bandwidth and storage requirements
- Wide 129° diagonal field of view for comprehensive coverage
- Operates in extreme temperatures from -22°F to 140°F
- Multiple mounting options for flexible installation
- 3-year limited warranty for long-term reliability
- CMOS sensor provides power-efficient HD video
- Supports memory card storage for local recording
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | PCI-D15F2S |
| Brand Name | Hikvision |
| Product Line | AcuSense |
| Product Model | PCI-D15F2S |
| Product Name | AcuSense 5 MP IR Fixed Dome Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 131 ft (39.93 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | horizontal FOV 97°, vertical FOV 71°, diagonal FOV 129° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | H.265+,H.265,H.264+,H.264,MJPEG,H.264 BP,H.265 (MP),H.264 (MP),H.264 HP |
| Maximum Video Resolution | 2592 x 1944 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/1.4 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1/3 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC |
| Physical Characteristics | |
| Mount Type | Junction Box Mount,Wall Mount,Pendant Mount,Corner Mount,Pole Mount |
| Form Factor | Dome |
| Durability | Water Resistant,Dust Resistant,Vandal Resistant |
| Diameter | 4.76" (121 mm) |
| Weight (Approximate) | 1.30 lb (590 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Day/Night,Password Protection,HTTPS Encryption,Back Light Compensation (BLC),Built-in HLC,3D Digital Noise Reduction,Defog,Electronic Image Stabilization,Audio Compression,Motion Detection,Tampering Alarm,Ingress Protection,Privacy Masking,Cross Line Detection |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 36 Month |
User Manual
FAQ
What is the maximum resolution of this Hikvision camera?
The PCI-D15F2S captures video at 5-megapixel resolution, specifically 2592 x 1944 pixels. This high resolution provides clear, detailed imagery suitable for identifying faces, license plates, and other important details in surveillance footage. The camera maintains this resolution at 30 frames per second for smooth video playback.
How far does the night vision reach on this outdoor camera?
The infrared night vision effectively covers distances up to 131 feet (39.93 meters) in complete darkness. This extended range ensures reliable monitoring of large outdoor areas during nighttime hours. The camera automatically switches between color daytime imaging and infrared night vision based on lighting conditions.
What weatherproof ratings does this dome camera have?
This camera carries an IP67 ingress protection rating, meaning it's completely dust-tight and can withstand immersion in water up to 1 meter for 30 minutes. It also has an IK10 impact protection rating, providing resistance against vandalism and physical impacts up to 20 joules of energy. These ratings make it suitable for harsh outdoor environments.
What video compression formats does the camera support?
The camera supports H.265+, H.265, H.264+, H.264, and MJPEG compression formats. H.265+ offers the most efficient bandwidth utilization, reducing network load and storage requirements by up to 50% compared to standard H.264 while maintaining video quality. This flexibility allows integration with various recording systems and network configurations.
What mounting options are available for this dome camera?
The camera supports junction box mounting, wall mounting, pendant mounting, corner mounting, and pole mounting. This versatility allows installation in diverse locations including building exteriors, ceilings, corners, and freestanding poles. The included mounting hardware accommodates these various installation scenarios for flexible deployment.
What is the warranty period for this Hikvision network camera?
Hikvision provides a 36-month (3-year) limited warranty for the PCI-D15F2S camera. This warranty covers manufacturing defects and ensures long-term reliability for surveillance installations. The camera also complies with RoHS, WEEE, and REACH environmental standards for responsible manufacturing and disposal.
