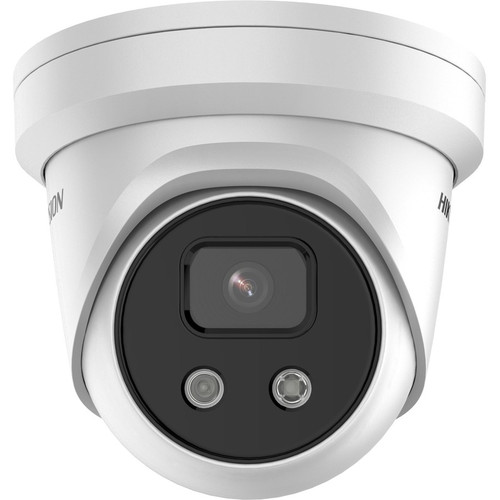

Hikvision PCI-T15F4S AcuSense 5MP Outdoor Turret Network Camera - Infrared Night Vision 131ft - H. 265+ - 2592 x 1944 - IP67 - White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera features a 5-megapixel CMOS sensor that captures detailed 2592x1944 video at 30 frames per second. The fixed 4mm f/1.4 lens provides a wide 102° diagonal field of view, while the infrared illuminators extend night vision to 131 feet (40 meters).
Video encoding includes H.265+, H.265, H.264+, H.264, and MJPEG formats, with features like 3D digital noise reduction, defog, electronic image stabilization, and backlight compensation enhancing image clarity. The camera operates on 12V DC power and connects via wired Ethernet with remote management capabilities.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The PCI-T15F4S combines high-resolution imaging with robust outdoor durability and intelligent video analytics. AcuSense technology enhances detection accuracy by filtering false alarms from non-human targets, reducing unnecessary notifications and storage waste.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Enhanced Night Performance, Advanced Video Intelligence.
Enhanced Night Performance
Infrared illumination reaches 131 feet, while the CMOS sensor maintains color fidelity in low-light conditions with features like day/night operation and built-in HLC (Highlight Compensation).
- 131ft infrared night vision
- CMOS sensor efficiency
- Day/Night auto-switching
Advanced Video Intelligence
Beyond basic motion detection, the camera supports cross-line detection, tampering alarm, privacy masking, and audio compression for integrated surveillance systems.
- Cross-line detection
- Tampering alarm
- Privacy masking zones
Deployment / Use Cases
This turret camera is ideal for perimeter security, parking lots, building entrances, and retail environments where discreet yet durable monitoring is required. The IP67 rating ensures reliable operation in rain, dust, and temperature extremes from -22°F to 140°F.
Installation flexibility supports multiple mounting scenarios: pole mounting for parking areas, wall mounting for building facades, ceiling mounting for covered walkways, or corner mounting for optimized field of view. The camera integrates with Hikvision and third-party NVRs via standard network protocols.
Commercial Perimeter Security
Deploy along fences, gates, or loading docks with pole or wall mounts. The wide field of view and 5MP resolution capture license plates and facial details at distance.
Retail & Hospitality Surveillance
Install under eaves or ceilings for entryway and parking lot coverage. The turret design deters tampering while providing clear color video for incident review.
Physical Profile
The turret housing measures 4.97 inches in height and 5.44 inches in diameter, with a weight of 1.70 pounds. The compact design minimizes visual impact while accommodating the 4mm lens and infrared LEDs. The white color suits most architectural finishes, and the M12 lens mount allows for potential future lens upgrades. Multiple mounting points support secure installation on various surfaces without additional brackets.
- Height
- 4.97" (126.30 mm)
- Weight
- 1.70 lb (770 g)
- Length
- 4 mm (0.16")
Highlights
- 5-megapixel resolution for detailed 2592x1944 surveillance video
- Infrared night vision extends to 131 feet (40 meters) in total darkness
- IP67-rated turret housing resists water, dust, and harsh weather conditions
- Supports H.265+ compression for reduced bandwidth and storage requirements
- Wide 102° diagonal field of view with fixed 4mm f/1.4 lens
- Multiple mounting options: pole, wall, ceiling, corner, junction box, pendant
- Operates in extreme temperatures from -22°F to 140°F (-30°C to 60°C)
- Includes AcuSense technology for accurate human/vehicle detection
- 12V DC power with wired Ethernet connectivity for reliable operation
- 3-year limited warranty with RoHS, WEEE, and REACH environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | PCI-T15F4S |
| Brand Name | Hikvision |
| Product Line | AcuSense |
| Product Model | PCI-T15F4S |
| Product Name | AcuSense 5 MP IR Fixed Turret Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision | Yes |
| Night Vision Distance | 131.23 ft (40 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | horizontal FOV 78°, vertical FOV 58°, diagonal FOV 102° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | H.265+,H.265,H.264+,H.264,MJPEG,H.264 BP,H.264 (MP),H.264 HP,H.265 (MP) |
| Maximum Video Resolution | 2592 x 1944 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 4 mm (0.16") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/1.4 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1/3 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Pole Mount,Corner Mount,Junction Box Mount,Pendant Mount,Wall Mount,Ceiling Mount |
| Form Factor | Turret |
| Durability | Water Resistant,Dust Resistant |
| Height | 4.97" (126.30 mm) |
| Diameter | 5.44" (138.30 mm) |
| Weight (Approximate) | 1.70 lb (770 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Day/Night,Password Protection,HTTPS Encryption,Back Light Compensation (BLC),Built-in HLC,3D Digital Noise Reduction,Defog,Electronic Image Stabilization,Audio Compression,Motion Detection,Tampering Alarm,Ingress Protection,Privacy Masking,Cross Line Detection |
| Ingress Protection Rating | IP67 |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum resolution of this Hikvision camera?
The PCI-T15F4S captures video at up to 2592 x 1944 resolution, which is 5 megapixels. This high resolution provides clear details for identifying faces, license plates, and other critical elements in surveillance footage, especially when zooming or cropping during review.
How far does the night vision reach on this outdoor camera?
The infrared night vision effectively illuminates up to 131.23 feet (40 meters) in complete darkness. This range allows for reliable monitoring of large outdoor areas like parking lots, perimeters, and building exteriors during nighttime hours without additional lighting.
What weather resistance rating does this turret camera have?
This camera carries an IP67 ingress protection rating, meaning it is dust-tight and can withstand immersion in water up to 1 meter for 30 minutes. This makes it suitable for outdoor installation in rain, snow, and dusty environments without requiring a separate housing.
What video compression formats does the camera support?
It supports H.265+, H.265, H.264+, H.264, and MJPEG formats. H.265+ and H.265 provide advanced compression that reduces bandwidth and storage usage by up to 50% compared to H.264, while maintaining high video quality for efficient network and recording system integration.
What mounting options are available for this turret camera?
The camera supports pole mount, corner mount, junction box mount, pendant mount, wall mount, and ceiling mount configurations. This flexibility allows installation on various surfaces and structures to achieve optimal viewing angles for different surveillance scenarios.
What is AcuSense technology and how does it benefit surveillance?
AcuSense is Hikvision's intelligent analytics that distinguishes human and vehicle targets from other moving objects like animals or foliage. This reduces false alarms by up to 90%, minimizing unnecessary notifications and storage waste while ensuring security personnel focus on genuine threats.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
