Hikvision PCI-T15F4SL AcuSense 5MP Outdoor Turret Network Camera - White - Infrared Night Vision 131 ft - 2592 x 1944 - H. 265+ - IP67
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a 5-megapixel CMOS sensor that provides balanced performance with lower power consumption compared to CCD alternatives. The fixed 4 mm lens with an M12 mount offers a wide diagonal field of view of 102°, covering expansive areas with minimal distortion.
Video encoding includes H.265+, H.265, H.264+, H.264, and MJPEG formats, giving flexibility for different network and storage constraints. Exposure control ranges from 1/100,000 second to 1/3 second, adapting to varying lighting conditions. Remote management capabilities allow administrators to configure and monitor the camera over the network.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This turret camera incorporates multiple imaging enhancements for consistent video quality. Back light compensation (BLC) balances scenes with strong backlighting, while built-in HLC (Highlight Compensation) manages bright light sources. 3D digital noise reduction cleans up video in low-light conditions, and electronic image stabilization minimizes blur from vibrations.
Security features include password protection, HTTPS encryption for secure communication, and tampering alarm detection. Privacy masking allows operators to block sensitive areas from recording, and cross line detection triggers alerts when objects cross predefined virtual lines.
AcuSense Technology
The AcuSense platform enhances surveillance accuracy by distinguishing between humans, vehicles, and other objects, reducing false alarms and improving event detection reliability.
Robust Environmental Protection
With an IP67 rating, the camera is fully protected against dust ingress and can withstand temporary immersion in water, making it suitable for outdoor installations in harsh weather.
Deployment / Use Cases
The PCI-T15F4SL is built for outdoor surveillance scenarios requiring reliable day-and-night operation. Its turret form factor offers a discreet profile while supporting pole, corner, junction box, pendant, wall, and ceiling mounts, adapting to various installation points.
For system integration, the camera works with standard network video recorders (NVRs) and video management software (VMS) that support ONVIF profiles. The 12 V DC power input and wired Ethernet connectivity ensure stable operation in permanent installations, and memory card storage provides local recording backup.
Perimeter Security
Install on building exteriors, fences, or gates to monitor entry points with clear 5MP detail and long-range infrared coverage after dark.
Commercial Property Monitoring
Deploy in parking lots, loading docks, or retail exteriors where the wide 102° field of view and multiple mounting options provide flexible coverage.
Physical Profile

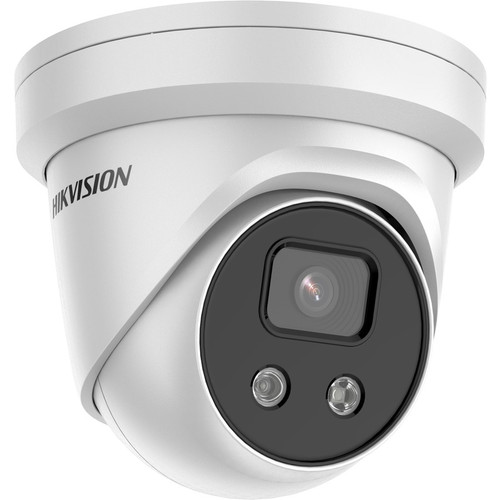

The white turret housing measures 4.97 inches (126.30 mm) in height and 5.44 inches (138.30 mm) in diameter, with a weight of approximately 1.70 pounds (770 grams). This compact design minimizes visual intrusion while accommodating the internal imaging components and infrared LEDs.
Mounting flexibility includes standard screw patterns for pole, corner, junction box, pendant, wall, and ceiling installations. The durable construction withstands temperatures from -22°F to 140°F (-30°C to 60°C) and up to 95% humidity, ensuring performance across seasonal changes.
- Height
- 4.97" (126.30 mm)
- Weight
- 1.70 lb (770 g)
- Length
- 4 mm (0.16")
Highlights
- 5-megapixel resolution delivers 2592 x 1944 video for clear surveillance detail
- Infrared night vision covers distances up to 131 feet (40 meters) in total darkness
- H.265+ compression reduces bandwidth and storage requirements efficiently
- IP67-rated housing resists dust and water for reliable outdoor operation
- Wide 102° diagonal field of view monitors expansive areas with a single camera
- Multiple mounting options include pole, wall, ceiling, and corner installations
- AcuSense technology improves accuracy by distinguishing humans and vehicles
- Remote management enables configuration and monitoring over the network
- Operates in extreme temperatures from -22°F to 140°F (-30°C to 60°C)
- 3-year limited warranty provides long-term support assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | PCI-T15F4SL |
| Brand Name | Hikvision |
| Product Line | AcuSense |
| Product Model | PCI-T15F4S |
| Product Name | AcuSense 5 MP IR Fixed Turret Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision | Yes |
| Night Vision Distance | 131.23 ft (40 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | horizontal FOV 78°, vertical FOV 58°, diagonal FOV 102° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | H.265+,H.265,H.264+,H.264,MJPEG,H.264 BP,H.264 (MP),H.264 HP,H.265 (MP) |
| Maximum Video Resolution | 2592 x 1944 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 4 mm (0.16") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/1.4 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1/3 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Pole Mount,Corner Mount,Junction Box Mount,Pendant Mount,Wall Mount,Ceiling Mount |
| Form Factor | Turret |
| Durability | Water Resistant,Dust Resistant |
| Height | 4.97" (126.30 mm) |
| Diameter | 5.44" (138.30 mm) |
| Weight (Approximate) | 1.70 lb (770 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Day/Night,Password Protection,HTTPS Encryption,Back Light Compensation (BLC),Built-in HLC,3D Digital Noise Reduction,Defog,Electronic Image Stabilization,Audio Compression,Motion Detection,Tampering Alarm,Ingress Protection,Privacy Masking,Cross Line Detection |
| Ingress Protection Rating | IP67 |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum video resolution of this Hikvision camera?
The camera captures video at up to 2592 x 1944 resolution, which is 5 megapixels. This high definition provides clear detail for identifying faces, license plates, and other critical surveillance elements, with a maximum frame rate of 30 frames per second for smooth motion.
How far does the night vision reach in complete darkness?
The built-in infrared LEDs provide night vision coverage up to 131.23 feet (40 meters). This allows the camera to maintain visibility in low-light or no-light conditions, ensuring continuous monitoring around the clock without requiring external illumination.
What video compression formats does the camera support?
It supports H.265+, H.265, H.264+, H.264, MJPEG, H.264 BP, H.264 (MP), H.264 HP, and H.265 (MP) formats. H.265+ offers advanced compression that reduces bandwidth and storage usage by up to 50% compared to standard H.264, making it ideal for network-constrained installations.
Is this camera suitable for outdoor installation?
Yes, the camera is designed for outdoor use with an IP67 ingress protection rating. This means it is dust-tight and can withstand temporary immersion in water, along with operating in temperatures from -22°F to 140°F (-30°C to 60°C). The white housing also resists UV degradation.
What mounting options are available for this turret camera?
It supports pole mount, corner mount, junction box mount, pendant mount, wall mount, and ceiling mount configurations. This flexibility allows installers to adapt the camera to various locations such as building eaves, fence posts, or overhead structures without requiring additional brackets.
What power supply does the camera require?
The camera operates on 12 V DC power, which is standard for network cameras. This can be supplied via a separate power adapter or through Power over Ethernet (PoE) if used with a compatible PoE injector or switch, though PoE capability is not built into this model.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
