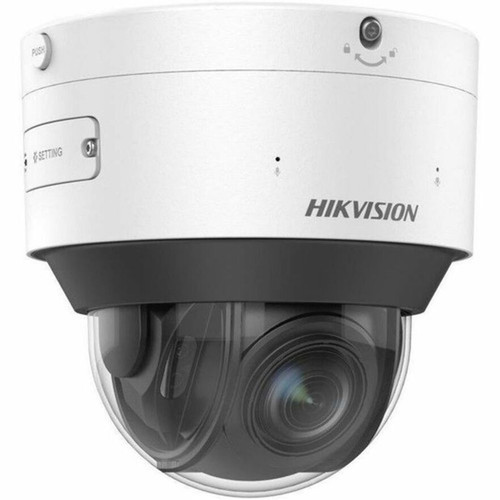

Hikvision IDS-2CD7547G0/P-XZHSY ColorVu 4MP Dome Network Camera - Varifocal Lens - 98ft Night Vision - IP67 IK10 - PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The camera captures video at 4 megapixel resolution (2688 x 1520) with a maximum frame rate of 60 fps, ensuring smooth and detailed real-time surveillance. It uses a 1/1.8" CMOS sensor that enhances low-light performance and reduces power consumption compared to traditional CCD sensors.
Video compression includes H.264, H.265, H.264+, H.265+, and MJPEG formats, with H.265+ offering efficient bandwidth utilization. The varifocal lens provides a 2.8 mm to 12 mm focal length range (4.3x optical zoom), allowing adjustment from wide-angle to telephoto views without sacrificing image quality.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This Hikvision camera combines high-resolution imaging with durable construction and flexible power options, making it a reliable choice for professional surveillance applications.
Enhanced Low-Light Performance
The ColorVu technology and infrared/color night vision provide clear footage in low-light conditions up to 98 feet, ensuring 24/7 monitoring capability.
- Infrared and color night vision modes
- Wide 98.43 ft (30 m) range
- Improved visibility in darkness
Robust Environmental Protection
With IP67 waterproof and dustproof rating and IK10 vandal resistance, this camera withstands harsh conditions and physical impacts.
- IP67 for water and dust ingress
- IK10 for impact resistance
- Operates from -40°F to 140°F
Flexible Deployment Options
Support for AC, DC, and PoE power sources simplifies installation in various locations, while the dome form factor offers discreet monitoring.
- PoE for single-cable setup
- AC/DC power compatibility
- Dome design for subtle placement
Deployment / Use Cases
This camera is ideal for commercial and industrial surveillance where high-resolution monitoring and environmental durability are critical. Its varifocal lens and robust build make it adaptable to diverse settings, from retail stores to manufacturing facilities.
Common applications include perimeter security, parking lot monitoring, warehouse surveillance, and entry-point observation. The PoE support allows integration into networked security systems with reduced cabling complexity, while remote management enables centralized control across multiple sites.
Outdoor Perimeter Security
The IP67 and IK10 ratings protect against weather and vandalism, making it suitable for monitoring building exteriors, fences, and gates in all conditions.
Indoor High-Traffic Areas
With 4MP resolution and 60 fps frame rate, it captures clear details in lobbies, retail floors, or corridors, supporting both live viewing and forensic review.
Physical Profile
The camera features a dome form factor with a diameter of 6.30 inches (160 mm) and weighs approximately 4.63 lb (2100 g). Its compact design facilitates ceiling or wall mounting in discreet locations, while the durable construction ensures long-term reliability in installed environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4.63 lb (2100 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 4.63 lb (2100 g)
- Length
- 2.8 mm (0.11")
Highlights
- 4-megapixel resolution (2688 x 1520) for detailed surveillance footage
- Varifocal lens with 2.8 mm to 12 mm focal length (4.3x optical zoom)
- Infrared/color night vision up to 98.43 ft (30 m) for 24/7 monitoring
- IP67 waterproof and dustproof rating with IK10 vandal resistance
- Power over Ethernet (PoE) support for simplified installation
- H.265+ video compression for efficient bandwidth and storage usage
- Wide operating temperature range from -40°F to 140°F (-40°C to 60°C)
- Remote management capability for centralized control
- Supports up to 256 GB memory card storage for local recording
- Includes features like back light compensation and human detection
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | IDS2CD7547G0PXZHSY |
| Brand Name | Hikvision |
| Product Line | ColorVu |
| Product Model | IDS-2CD7547G0/P-XZHS(Y) |
| Product Name | 4 MP ColorVu DeepinView Varifocal Dome Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared/Color |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/1.8" |
| Color Supported | Color |
| Field of View | Horizontal FOV 104.2° to 44.1°, Vertical FOV 55.3° to 24.8°, Diagonal FOV 126.8° to 51.1° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.264,H.265,H.264+,H.265+,MJPEG |
| Maximum Video Resolution | 2688 x 1520 |
| Maximum Frame Rate | 60 fps |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 2.8 mm (0.11") |
| Maximum Focal Length | 12 mm (0.47") |
| Lens Included | Yes |
| Minimum Aperture | f/1.2 |
| Maximum Aperture | f/1 |
| Optical Zoom | 4.3x |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Solid State Drive Capacity | 256 GB |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC,24 V AC |
| Power Source Type | AC,DC,PoE |
| Physical Characteristics | |
| Form Factor | Dome |
| Durability | Water Resistant,Dust Resistant,Vandal Proof |
| Diameter | 6.30" (160 mm) |
| Weight (Approximate) | 4.63 lb (2100 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Back Light Compensation (BLC),Highlight Compensation (HLC),3D Digital Noise Reduction,Noise Detection,Noise Reduction,Mirror,Cross Line Detection,Video Content Analytics,Video Management System,Region of Interest,Human Detection |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
User Manual
FAQ
What is the resolution and frame rate of this Hikvision camera?
The camera offers 4-megapixel resolution at 2688 x 1520 with a maximum frame rate of 60 frames per second. This combination ensures high-definition video quality and smooth motion capture, suitable for detailed surveillance and real-time monitoring in various environments.
How does the night vision perform on this model?
Night vision uses both infrared and color modes with a range of up to 98.43 feet (30 meters). This allows the camera to capture clear footage in low-light or no-light conditions, providing reliable 24/7 surveillance without requiring additional lighting in many scenarios.
What power options are available for this dome camera?
The camera supports multiple power sources: 12 V DC, 24 V AC, and Power over Ethernet (PoE). PoE enables installation with a single Ethernet cable for both data and power, simplifying setup and reducing wiring complexity in networked security systems.
Is this camera suitable for outdoor use?
Yes, with an IP67 rating for water and dust resistance and an IK10 impact protection rating, it is built for harsh outdoor environments. It operates in temperatures from -40°F to 140°F (-40°C to 60°C) and withstands vandalism, making it ideal for perimeter security and exposed locations.
What type of lens does this camera have?
It features a varifocal lens with a focal length range from 2.8 mm to 12 mm, providing 4.3x optical zoom. This allows adjustment of the field of view from wide-angle to telephoto without moving the camera, offering flexibility in monitoring different areas from a fixed position.
How is video storage handled on this network camera?
Storage is supported via a memory card slot with capacity for up to 256 GB solid-state drives. This enables local recording for backup or standalone operation, while the camera also integrates into network video recorders (NVRs) for centralized storage in larger surveillance systems.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
