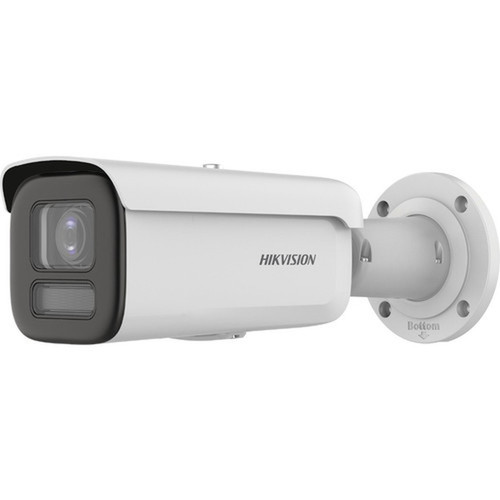

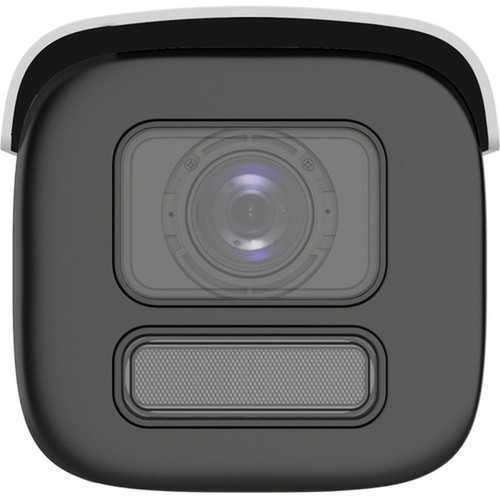

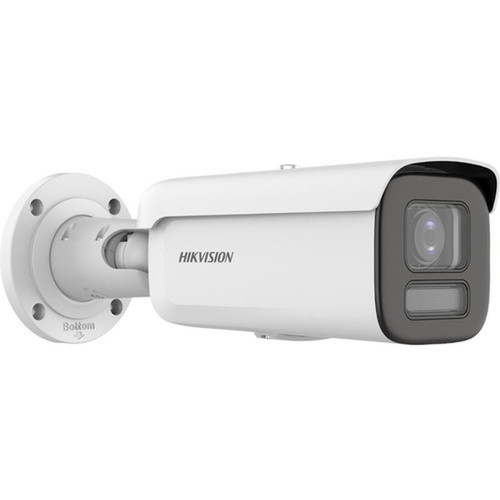

Hikvision DS-2CD2647G2T-LZS ColorVu 4MP Outdoor Bullet Network Camera - Motorized Varifocal Lens - Color Night Vision to 60m - H. 265+ - IP67 - PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a CMOS sensor that captures 4-megapixel imagery with a dynamic field of view ranging from 105.4° to 56.4° horizontally, 53.9° to 31.6° vertically, and 131.8° to 65.1° diagonally. The motorized varifocal lens adjusts between 2.8 mm and 12 mm focal lengths, providing flexibility in monitoring distances and scene composition. Video encoding includes H.265, H.264, H.265+, H.264+, Motion JPEG, and other advanced formats, with support for features like 3D digital noise reduction, wide dynamic range, and backlight compensation.
Network connectivity is wired via RJ-45, with remote management capabilities for centralized control. Storage options include local SD card support, and the camera operates on 12 V DC or Power over Ethernet (PoE), simplifying installation by reducing cable requirements. Exposure control spans from 1/100000 second to 1/3 second, accommodating varying light conditions for optimal image clarity.
Key Product Advantages
The DS-2CD2647G2T-LZS stands out with its ColorVu technology, which enables true color reproduction in near-darkness without switching to monochrome infrared mode. This results in more identifiable footage for security purposes, such as distinguishing clothing colors or vehicle details at night. The motorized varifocal lens allows installers to fine-tune the field of view remotely after mounting, reducing the need for physical adjustments and saving time during setup and maintenance.
Enhanced Low-Light Performance
With an f/1.0 aperture and advanced sensor processing, this camera captures vivid color images in environments as dark as 0.005 lux, outperforming traditional IR cameras that lose color information.
- Color night vision up to 60 meters
- Eliminates need for supplemental lighting
- Improves forensic detail in nighttime footage
Robust Outdoor Durability
Designed for harsh outdoor conditions, the camera features an IP67 rating for complete protection against dust and temporary immersion, along with IK10 impact resistance to withstand deliberate vandalism.
- Withstands temperatures from -30°C to 60°C
- Suitable for coastal or industrial areas
- Reduces maintenance and replacement costs
Deployment / Use Cases
This camera is ideal for perimeter security, parking lots, building entrances, and other outdoor areas where detailed color imaging is critical for identification and monitoring. Its varifocal lens and weatherproof design make it suitable for both fixed and adjustable installations across various environments.
Common applications include commercial properties, educational campuses, retail storefronts, and industrial facilities that require 24/7 surveillance with minimal lighting. The PoE support allows integration into existing network infrastructure, while local SD card storage provides backup recording in case of network interruptions.
Perimeter and Entry Point Monitoring
Deploy at gatehouses, fences, or doorways to capture clear color footage of individuals and vehicles, enhancing security protocols and incident investigation.
- Color identification in low light
- Adjustable field of view for narrow or wide areas
- Vandal-resistant for high-traffic locations
Large-Area Surveillance
Use in parking lots, yards, or open spaces where the 4.3x optical zoom and 60-meter night vision range provide detailed coverage without requiring multiple cameras.
- Reduces total camera count needed
- Remote zoom adjustment for changing needs
- Efficient bandwidth use with H.265+
Physical Profile
The camera features a bullet form factor with dimensions that support vertical, pole, or junction box mounting, offering flexibility in installation angles and positions. Its weight of 3.23 pounds (1465 grams) ensures stability in windy conditions, while the integrated lens mount and durable housing minimize points of failure. The design includes provisions for cable management and environmental sealing to maintain IP67 integrity over long-term outdoor exposure.
- Weight
- 3.23 lb (1465 g)
- Length
- 2.8 mm (0.11")
Highlights
- 4-megapixel resolution for detailed 2688x1520 video recording
- ColorVu technology provides full-color night vision up to 60 meters
- Motorized varifocal lens with 4.3x optical zoom for remote adjustment
- H.265+ compression reduces bandwidth and storage requirements by up to 50%
- IP67 and IK10 ratings for dust, water, and vandal resistance
- Power over Ethernet (PoE) support simplifies installation and reduces wiring
- Wide operating temperature range from -30°C to 60°C
- Includes features like privacy masking, motion detection, and HTTPS encryption
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CD2647G2T-LZS |
| Brand Name | Hikvision |
| Product Line | ColorVu |
| Product Model | DS-2CD2647G2T-LZS |
| Product Name | 4 MP ColorVu Motorized Varifocal Bullet Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 196.85 ft (60 m) |
| Night Vision Type | Color |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | horizontal FOV 105.4° to 56.4°, vertical FOV 53.9° to 31.6°, diagonal FOV 131.8° to 65.1° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.265,H.264,H.265+,H.264+,Motion JPEG,H.264 BP,H.264 (MP),H.264 HP,H.265 (MP) |
| Maximum Video Resolution | 2688 x 1520 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 2.8 mm (0.11") |
| Maximum Focal Length | 12 mm (0.47") |
| Lens Included | Yes |
| Lens Mount Type | Integrated |
| Maximum Aperture | f/1 |
| Optical Zoom | 4.3x |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1/3 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Mount Type | Vertical Mount,Pole Mount,Junction Box Mount |
| Form Factor | Bullet |
| Durability | Dust Resistant,Vandal Resistant,Water Resistant |
| Weight (Approximate) | 3.23 lb (1465 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Wide Dynamic Range,Day/Night,Region of Interest,Password Protection,HTTPS Encryption,Highlight Compensation (HLC),Back Light Compensation (BLC),3D Digital Noise Reduction,Privacy Masking,SD Card Local Storage,Motion Detection |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 36 Month |
User Manual
FAQ
What is the maximum resolution and frame rate of this camera?
The camera records at up to 4 megapixels (2688 x 1520 resolution) with a maximum frame rate of 30 frames per second. This ensures smooth, high-definition video suitable for capturing fast-moving objects or detailed surveillance footage in real-time.
How does the ColorVu night vision work compared to traditional IR cameras?
ColorVu technology uses a large aperture (f/1.0) and advanced sensor processing to capture color images in low-light conditions down to 0.005 lux, without switching to monochrome infrared. This provides identifiable color details like clothing or vehicle colors at night, whereas traditional IR cameras lose color information and produce black-and-white footage.
Can the lens be adjusted remotely after installation?
Yes, the motorized varifocal lens allows remote adjustment of the focal length from 2.8 mm to 12 mm, enabling you to zoom in or out and change the field of view without physical access to the camera. This is useful for fine-tuning surveillance coverage after mounting or adapting to changing security needs.
What power options are available for this camera?
The camera supports both 12 V DC power and Power over Ethernet (PoE). PoE allows you to deliver power and data over a single Ethernet cable, simplifying installation by reducing the need for separate power wiring and outlets near the camera location.
Is this camera suitable for outdoor use in harsh weather?
Yes, with an IP67 rating, it is fully protected against dust and temporary immersion in water, and it operates in temperatures from -22°F to 140°F (-30°C to 60°C). The IK10 impact resistance also guards against vandalism, making it durable for outdoor environments like parking lots, building exteriors, or industrial sites.
What video compression formats does the camera support?
It supports H.265, H.264, H.265+, H.264+, Motion JPEG, and other variants like H.264 BP and HP. H.265+ is particularly efficient, reducing bandwidth and storage usage by up to 50% compared to older formats while maintaining high video quality, which is beneficial for large-scale surveillance systems.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
