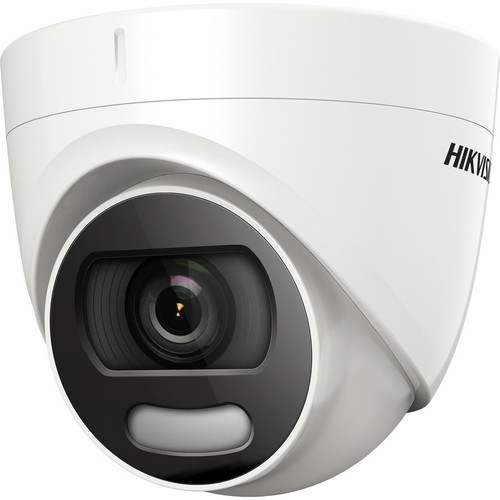

Hikvision DS-2CE72HFT-F28 2. 8MM ColorVu 5MP Outdoor Turret Camera - 65. 62ft IR Night Vision - 2560 x 1944 - IP67
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This surveillance camera captures video at 5-megapixel resolution (2560 x 1944) with a maximum frame rate of 30 frames per second, ensuring smooth, detailed footage for security monitoring. The camera utilizes a CMOS image sensor that provides color imaging in various lighting conditions while maintaining power efficiency.
The fixed 2.8mm lens delivers a wide field of view with horizontal coverage of 99.7 degrees, vertical coverage of 72 degrees, and diagonal coverage of 139.8 degrees. Advanced imaging features include 3D digital noise reduction, automatic white balance, auto gain control, and wide dynamic range to optimize video quality across changing lighting scenarios. The camera supports multiple analog video formats including TVI, AHD, CVI, and CVBS, along with standard NTSC and PAL signal formats for compatibility with various recording systems.
Key Product Advantages
This turret camera delivers practical advantages for security installations through its combination of high-resolution imaging, reliable night vision, and durable construction. The camera's intelligent features including motion detection, mirror function, and digital noise reduction enhance its effectiveness as a surveillance solution while minimizing false alerts and optimizing storage usage.
Enhanced Low-Light Performance
The ColorVu technology combined with infrared illumination provides reliable surveillance in complete darkness up to 65.62 feet, ensuring 24/7 monitoring capability without compromising image quality.
- Infrared night vision to 65.62 ft (20 m)
- Color imaging in low-light conditions
- Day/Night functionality with automatic switching
Robust Environmental Protection
With an IP67 rating, this camera is fully protected against dust ingress and can withstand temporary immersion in water, making it suitable for outdoor installations in challenging weather conditions.
- IP67-rated housing
- Water and dust resistant construction
- Wide temperature range: -40°F to 140°F
Deployment / Use Cases
The Hikvision DS-2CE72HFT-F28 serves effectively in various security scenarios where reliable outdoor monitoring is essential. Its turret form factor provides discreet surveillance while offering vandal resistance, and the multiple mounting options including wall, pole, corner, ceiling, and junction box installations allow for optimal positioning based on specific surveillance needs.
This camera integrates seamlessly into both new and existing security systems through its support for multiple analog video formats, making it a versatile choice for security upgrades or expansions. The camera's 36-month limited warranty provides additional confidence for long-term deployment in security-critical applications.
Perimeter Security Monitoring
Ideal for monitoring building exteriors, entry points, and property boundaries where clear identification of individuals and vehicles is required both day and night.
- 65.62 ft night vision range
- Wide 139.8° diagonal field of view
- Weather-resistant IP67 construction
Small Business Surveillance
Well-suited for retail stores, offices, and commercial facilities requiring reliable surveillance with easy integration into existing analog video systems.
- Multiple video format support (TVI, AHD, CVI, CVBS)
- Flexible mounting options
- 30 fps recording for smooth footage
Physical Profile
The turret-style housing measures 3.37 inches in height and 4.32 inches in diameter, with a weight of approximately 12.35 ounces. This compact form factor allows for discreet installation while providing the durability needed for outdoor environments. The camera features an M16 lens mount and offers flexible installation options including wall, pole, corner, ceiling, and junction box mounting to accommodate various surveillance angles and locations.
- Height
- 3.37" (85.56 mm)
- Weight
- 12.35 oz (350 g)
- Length
- 2.8 mm (0.11")
Highlights
- 5-megapixel resolution (2560 x 1944) for detailed surveillance footage
- 65.62-foot infrared night vision ensures 24/7 monitoring capability
- IP67-rated housing provides protection against dust and water ingress
- Wide 139.8° diagonal field of view covers expansive areas
- Supports multiple analog video formats: TVI, AHD, CVI, CVBS, NTSC, PAL
- Fixed 2.8mm lens with M16 mount for consistent viewing angle
- 30 frames per second recording for smooth video playback
- Operating temperature range from -40°F to 140°F for extreme environments
- Multiple mounting options: wall, pole, corner, ceiling, junction box
- 36-month limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CE72HFT-F28 2.8MM |
| Brand Name | Hikvision |
| Product Line | ColorVu |
| Product Model | DS-2CE72HFT-F28 |
| Product Name | 5 MP ColorVu Fixed Turret Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 65.62 ft (20 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | horizontal FOV: 99.7°, vertical FOV: 72°, diagonal FOV: 139.8 |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Maximum Video Resolution | 2560 x 1944 |
| Maximum Frame Rate | 30 fps |
| Video Signal Format | NTSC,PAL |
| Analog Video Signal Format | TVI,AHD,CVI,CVBS |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Lens Mount Type | M16 |
| Exposure | |
| Shortest Shutter Speed | 1/50000 Second |
| Longest Shutter Speed | 1/25 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC |
| Physical Characteristics | |
| Mount Type | Wall Mount,Pole Mount,Corner Mount,Ceiling Mount,Junction Box Mount |
| Form Factor | Turret |
| Durability | Water Resistant,Dust Resistant |
| Height | 3.37" (85.56 mm) |
| Diameter | 4.32" (109.82 mm) |
| Weight (Approximate) | 12.35 oz (350 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Day/Night,Mirror,3D Digital Noise Reduction,Motion Detection,Automatic White Balance,Auto Gain Control,Wide Dynamic Range |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP67 |
| Warranty | |
| Limited Warranty | 36 Month |
User Manual
FAQ
What is the maximum resolution of this Hikvision camera?
The Hikvision DS-2CE72HFT-F28 captures video at 5-megapixel resolution, specifically 2560 x 1944 pixels. This high resolution provides detailed imagery that allows for clear identification of subjects and enhances digital zoom capabilities during playback, making it suitable for applications where facial recognition or license plate identification may be required.
How far does the night vision reach on this surveillance camera?
This camera features infrared night vision with a maximum range of 65.62 feet (20 meters). The infrared illumination activates automatically in low-light conditions, providing black-and-white imagery in complete darkness while maintaining surveillance coverage throughout the monitored area during nighttime hours.
Is this camera suitable for outdoor installation?
Yes, this camera is designed specifically for outdoor use with an IP67 ingress protection rating. This rating indicates complete protection against dust ingress and protection against temporary immersion in water up to 1 meter for 30 minutes. The camera also operates in temperatures ranging from -40°F to 140°F (-40°C to 60°C), making it suitable for year-round outdoor deployment in various climates.
What video formats does this camera support?
This camera supports multiple analog video formats including TVI (Transport Video Interface), AHD (Analog High Definition), CVI (Composite Video Interface), and CVBS (Composite Video Baseband Signal). It also supports standard NTSC and PAL signal formats, providing compatibility with a wide range of DVRs and video recording systems for flexible integration into existing or new surveillance setups.
What type of lens does this camera have?
The camera features a fixed 2.8mm lens with an M16 mount. This fixed focal length provides a consistent viewing angle with a horizontal field of view of 99.7 degrees, vertical field of view of 72 degrees, and diagonal field of view of 139.8 degrees. The lens is permanently attached and optimized for general surveillance applications where a wide viewing area is preferred.
What power supply does this camera require?
This wired camera operates on 12V DC power. It requires a compatible 12V DC power source for operation, which is standard for many surveillance camera installations. The camera does not support Power over Ethernet (PoE) as it utilizes analog video transmission rather than network connectivity, so separate power wiring is necessary alongside the video cable.
What display size or resolution is listed?
It features a display specification of 5 Megapixel, giving you clear visuals for work and media use.
