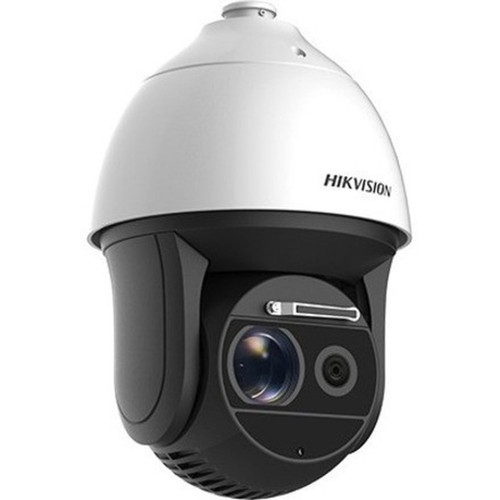

Hikvision DS-2DF8436I5X-AELW Darkfighter Outdoor Dome Camera - 2MP - 36x Zoom - 500m Night Vision - 2560 x 1440 Resolution
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a CMOS image sensor that balances power efficiency with high-definition video performance. It records in multiple video formats including H.265, H.264, H.265+, H.264+, and MJPEG, providing flexibility for storage optimization and bandwidth management. The HD recording capability ensures all footage meets modern surveillance standards.
The optical system features a zoom lens with a focal length range from 5.7mm to 205.2mm, enabling wide-area coverage and detailed close-up views. Night vision extends to 500 meters (1640.42 feet) using infrared technology, maintaining surveillance effectiveness around the clock. The camera processes both color and monochrome video to adapt to varying lighting conditions.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The DS-2DF8436I5X-AELW delivers several distinct advantages for security professionals. Its Darkfighter technology enhances low-light performance, capturing usable video in challenging lighting scenarios where conventional cameras might fail. The 36x optical zoom provides exceptional detail at long distances without digital interpolation that degrades image quality.
Extended Surveillance Range
With 500-meter night vision capability, this camera monitors large outdoor areas such as parking lots, perimeters, and industrial yards effectively after dark.
- Infrared illumination up to 1640.42 feet
- Color and monochrome imaging modes
Flexible Installation Options
Eight different mounting types accommodate various architectural requirements and surveillance angles.
- Wall, corner, pole, and ceiling mounts
- Power box, pendant, roof, and parapet mounting
Efficient Video Compression
Support for H.265+ and H.264+ codecs reduces storage requirements and network bandwidth while maintaining video quality.
- Multiple format compatibility
- Bandwidth optimization for networked systems
Deployment / Use Cases
This camera is specifically designed for outdoor surveillance applications where reliable performance across varying conditions is essential. Its weather-resistant dome housing and extensive mounting options make it suitable for perimeter security, entry point monitoring, and large area observation.
Commercial and industrial facilities benefit from the camera's long-range night vision and optical zoom capabilities. Educational campuses, transportation hubs, and critical infrastructure sites can deploy this camera to monitor expansive outdoor spaces with detailed visibility. The wired network connectivity ensures stable integration with NVR systems and video management platforms for centralized control.
Perimeter Security
Monitor fence lines, gates, and property boundaries with detailed zoom capability and extended night vision range.
Large Area Surveillance
Cover parking facilities, yards, and outdoor storage areas with one camera using the 36x optical zoom to inspect distant activity.
Physical Profile
The dome enclosure measures 16.14 inches (409.96 mm) in height with a diameter of 10.50 inches (266.70 mm), presenting a compact profile for discreet installation. With an approximate weight of 8 kg, the camera maintains stability in various mounting configurations. The outdoor-rated construction ensures durability against environmental factors including moisture, dust, and temperature fluctuations.
- Height
- 16.14" (409.96 mm)
- Weight
- 8 kg
- Length
- 5.7 mm
Highlights
- 2-megapixel CMOS sensor for detailed HD video capture
- 36x optical zoom lens for distant object inspection
- 500-meter (1640.42 ft) night vision range with infrared
- Maximum video resolution of 2560 x 1440 pixels
- Supports H.265, H.264, H.265+, H.264+, and MJPEG video formats
- Wired network connectivity with RJ-45 interface
- Eight different mounting types for installation flexibility
- Outdoor-rated dome housing for environmental protection
- Remote management capability for system integration
- Color and monochrome imaging for varying light conditions
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2DF8436I5X-AELW |
| Brand Name | Hikvision |
| Product Line | Darkfighter |
| Product Model | DS-2DF8436I5X-AELW |
| Product Name | 4 MP Outdoor 36× Network IR Laser Speed Dome |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 1640.42 ft (500 m) |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color,Monochrome |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.265,H.264,H.265+,H.264+,MJPEG |
| Maximum Video Resolution | 2560 x 1440 |
| Lens | |
| Lens Type | Zoom |
| Minimum Focal Length | 5.7 mm |
| Maximum Focal Length | 205.2 mm |
| Optical Zoom | 36x |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mount Type | Wall Mount,Corner Mount,Pole Mount,Power Box Mount,Ceiling Mount,Pendant Mount,Roof Mount,Parapet Mount |
| Form Factor | Dome |
| Height | 16.14" (409.96 mm) |
| Diameter | 10.50" (266.70 mm) |
| Weight (Approximate) | 8 kg |
| Miscellaneous | |
| Indoor/Outdoor | Outdoor |
User Manual
FAQ
What is the effective resolution of this Hikvision camera?
The DS-2DF8436I5X-AELW features a 2-megapixel CMOS sensor that captures video at a maximum resolution of 2560 x 1440 pixels. This resolution provides clear, detailed imagery suitable for identification purposes in surveillance applications, balancing storage requirements with visual clarity.
How far does the night vision capability extend?
This camera provides night vision coverage up to 500 meters (approximately 1640.42 feet) using infrared illumination. This extended range allows for effective monitoring of large outdoor areas during low-light conditions, maintaining surveillance effectiveness throughout nighttime hours.
What zoom capabilities does this camera offer?
The camera includes a 36x optical zoom lens with a focal length range from 5.7mm to 205.2mm. Optical zoom maintains image quality when magnifying distant subjects, unlike digital zoom which reduces clarity. This allows operators to closely inspect areas of interest without physically repositioning the camera.
What video formats does this camera support?
It records in H.265, H.264, H.265+, H.264+, and MJPEG formats. The H.265+ and H.264+ codecs provide enhanced compression efficiency, reducing storage requirements and network bandwidth while maintaining video quality. Format flexibility allows integration with various recording systems and playback requirements.
What mounting options are available for installation?
This dome camera supports eight mounting types: wall, corner, pole, power box, ceiling, pendant, roof, and parapet mounting. This flexibility accommodates diverse architectural environments and surveillance angles, enabling optimal camera placement for coverage area and visibility.
Is this camera suitable for outdoor installation?
Yes, the DS-2DF8436I5X-AELW is designed for outdoor use with weather-resistant construction. Its dome housing protects internal components from environmental factors, making it suitable for perimeter security, parking areas, and other exterior surveillance applications requiring reliable performance in varying conditions.
What connectivity or interface options are available?
Connectivity options include Wired, helping the product integrate into common office or home setups.
