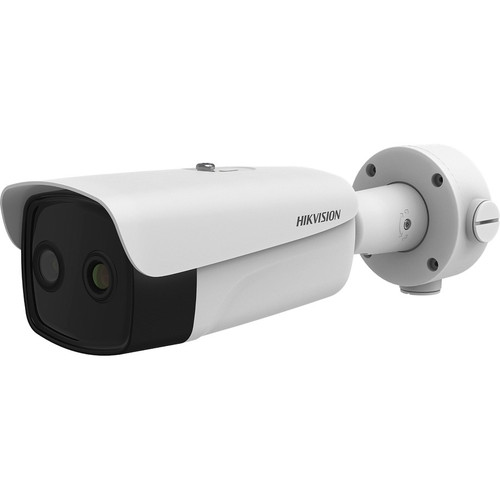

Hikvision DS-2TD2637-10/P DeepinView 4MP Thermal & Optical Network Bullet Camera - 40m Night Vision - H. 265/H. 264/MJPEG - 2688 x 1520
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera employs a CMOS sensor for visible light capture and a vanadium oxide uncooled focal plane array for thermal imaging, providing dual-spectrum monitoring. Video encoding supports H.265, H.264, and MJPEG formats, optimizing bandwidth and storage efficiency while maintaining high-quality footage.
The fixed lens system includes a 4mm focal length for optical imaging and a 9.70mm focal length for thermal imaging, ensuring consistent field of view across both sensors. Network connectivity is via wired RJ-45, facilitating stable integration into IP surveillance systems with full remote management support for configuration and monitoring.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The DS-2TD2637-10/P offers distinct advantages for demanding surveillance scenarios by merging optical and thermal technologies into a single bullet camera form factor.
Dual-Sensor Detection
Combines 4MP visible imaging with thermal sensing to detect heat signatures, enhancing reliability in low-light, fog, or complete darkness where traditional cameras may struggle.
- Visible light for detail
- Thermal for presence detection
- Works in total darkness
Efficient Video Encoding
Supports H.265 compression alongside H.264 and MJPEG, reducing bandwidth and storage requirements without compromising on video clarity, ideal for continuous recording setups.
- H.265 for efficiency
- Bandwidth optimization
- Storage savings
Versatile Mounting
Designed for conduit, corner, and pole mounting, offering flexible installation options to adapt to various architectural and environmental conditions.
- Multiple mount types
- Easy integration
- Durable bullet housing
Deployment / Use Cases
This camera is engineered for scenarios where both visual detail and thermal detection are critical. Its 40-meter night vision and thermal capabilities make it effective for perimeter security, allowing operators to monitor fence lines, gates, and restricted areas around the clock.
In industrial settings, it can oversee equipment yards, loading docks, or storage facilities, providing visibility in low-light conditions and detecting heat anomalies that might indicate machinery issues or unauthorized activity. For critical infrastructure like utilities or transportation hubs, the dual-sensor approach ensures monitoring continuity despite weather changes or lighting challenges.
Perimeter Security
Ideal for fencing, gates, and boundary monitoring where thermal imaging enhances intrusion detection beyond visible light limitations.
Industrial Monitoring
Suitable for yards, docks, and facilities requiring reliable surveillance in variable lighting and the ability to spot heat-related incidents.
Physical Profile
The bullet form factor provides a durable, weather-resistant housing suitable for outdoor installations. With a weight of approximately 1.82 kg, it offers stability in mounted positions. The design supports conduit, corner, and pole mounting, giving installers flexibility to position the camera optimally for coverage angles and environmental protection.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.82 kg. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.82 kg
- Length
- 4 mm
What's in the Box
The package includes the thermal and optical network bullet camera along with a junction box for secure electrical connections, ensuring a complete setup for professional installation.
Highlights
- 4-megapixel resolution for detailed 2688x1520 video surveillance
- Thermal imaging at 384x288 resolution for heat-based detection
- Night vision effective up to 40 meters (131.23 feet)
- Supports H.265, H.264, and MJPEG video encoding formats
- CMOS optical sensor and vanadium oxide thermal sensor
- Wired network connectivity with RJ-45 port
- Remote management capability for easy configuration
- Bullet form factor with conduit, corner, and pole mounting options
- Includes junction box for installation
- Backed by a 36-month limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2TD2637-10/P |
| Brand Name | Hikvision |
| Product Line | DeepinView |
| Product Model | DS-2TD2637-10/P |
| Product Name | Thermal and Optical Network Bullet Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 131.23 ft (40 m) |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Thermal Image Sensor Type | Vanadium Oxide Uncooled Focal Plane Arrays |
| Color Supported | Color,Monochrome |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | MJPEG,H.265,H.264 |
| Maximum Video Resolution | 2688 x 1520 |
| Thermal Video Resolution | 384 x 288 |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 4 mm |
| Maximum Thermal Focal Length | 0.38" (9.70 mm) |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mount Type | Conduit Mount,Corner Mount,Pole Mount |
| Form Factor | Bullet |
| Weight (Approximate) | 1.82 kg |
| Miscellaneous | |
| Package Contents | Thermal and Optical Network Bullet Camera Junction Box |
| Warranty | |
| Limited Warranty | 36 Month |
User Manual
FAQ
What is the resolution of this Hikvision camera?
The camera offers 4-megapixel resolution for optical imaging, delivering video at up to 2688x1520. Additionally, it includes thermal imaging at 384x288 resolution, providing dual-spectrum monitoring for both visible detail and heat detection.
How far does the night vision reach?
Night vision is effective up to 40 meters (approximately 131.23 feet). This range allows for clear monitoring in low-light or dark conditions, enhanced by the thermal sensor which operates independently of visible light.
What video formats does the camera support?
It supports MJPEG, H.265, and H.264 video formats. H.265 encoding is particularly efficient, reducing bandwidth and storage needs while maintaining high video quality, making it suitable for continuous recording environments.
Can this camera be used outdoors?
Yes, the bullet form factor is designed for outdoor use, with mounting options for conduit, corner, and pole installations. Its durable housing and thermal capabilities make it reliable in various weather conditions, including complete darkness.
What type of network connectivity does it have?
The camera uses wired connectivity via an RJ-45 port, ensuring stable integration into IP networks. It supports remote management, allowing administrators to configure and monitor the camera over the network.
What is included in the package?
The package contains the thermal and optical network bullet camera and a junction box. The junction box facilitates secure electrical connections during installation, providing a complete setup for professional deployment.
What connectivity or interface options are available?
Connectivity options include Wired, helping the product integrate into common office or home setups.
