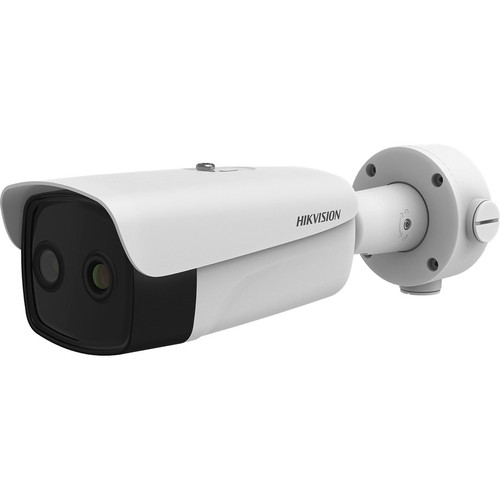

Hikvision DS-2TD2637-15/P DeepinView 4MP Network Bullet Camera - 2688 x 1520 Resolution - 50m Night Vision - H. 265/H. 264/MJPEG - Thermal Imaging
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera features a CMOS optical sensor that captures 4MP video at 2688x1520 resolution, ensuring detailed imagery for identification and monitoring. The thermal sensor uses vanadium oxide uncooled focal plane arrays to detect heat signatures, providing an additional layer of security beyond visible light.
With a fixed 6mm optical lens and 15mm thermal lens, it offers consistent field of view without adjustment needs. The wired connectivity via RJ-45 ensures reliable network integration, while remote management capabilities allow for centralized control and monitoring.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The DS-2TD2637-15/P stands out with its dual-sensor design, combining optical and thermal imaging for comprehensive surveillance. This approach enhances detection accuracy in challenging environments like fog, smoke, or total darkness where traditional cameras may fail.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Enhanced Night Vision, Efficient Video Compression.
Enhanced Night Vision
Delivers up to 50 meters of night vision capability, leveraging both optical and thermal sensors to maintain visibility in low-light or no-light conditions.
- 50m range
- Dual-sensor support
- Color and monochrome modes
Efficient Video Compression
Supports H.265 and H.264 codecs to reduce bandwidth and storage requirements without compromising video quality, ideal for continuous recording scenarios.
- H.265/H.264/MJPEG
- Bandwidth optimization
- Storage efficiency
Deployment / Use Cases
This camera is designed for perimeter security, critical infrastructure protection, and outdoor surveillance where reliable detection in all lighting conditions is essential. Its thermal imaging capability makes it particularly effective for applications requiring heat-based detection.
Common deployments include warehouse perimeters, parking lots, industrial facilities, and remote sites where vandalism or intrusion risks exist. The multiple mounting options facilitate installation on walls, poles, or corners to cover blind spots effectively.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Perimeter Security
Ideal for monitoring fences, gates, and property boundaries with its long-range night vision and thermal detection capabilities.
Critical Infrastructure
Suitable for power plants, transportation hubs, and communication facilities where 24/7 surveillance with dual-sensor reliability is required.
Physical Profile
The bullet-style housing provides weather resistance and durability for outdoor installations. With a weight of 1.82 kg, it maintains stability in various mounting configurations. The design supports conduit, corner, and pole mounting, offering flexibility for different installation scenarios without requiring additional brackets in most cases.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.82 kg. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.82 kg
- Length
- 6 mm
What's in the Box
The package includes all necessary components for immediate deployment.
Package contents include Thermal and Optical Network Bullet Camera Junction Box, Thermal and Optical Network Bullet Camera. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 4-megapixel resolution at 2688x1520 for detailed video capture
- Dual-sensor design with optical CMOS and thermal imaging capabilities
- Up to 50 meters of night vision range for low-light surveillance
- Supports H.265, H.264, and MJPEG video compression formats
- Fixed 6mm optical lens and 15mm thermal lens configuration
- Wired connectivity with RJ-45 port for reliable network integration
- Multiple mounting options: conduit, corner, and pole mount
- Remote management enabled for centralized control
- Bullet form factor designed for outdoor durability
- 36-month limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2TD2637-15/P |
| Brand Name | Hikvision |
| Product Line | DeepinView |
| Product Model | DS-2TD2637-15/P |
| Product Name | Thermal and Optical Network Bullet Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 164.04 ft (50 m) |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Thermal Image Sensor Type | Vanadium Oxide Uncooled Focal Plane Arrays |
| Color Supported | Color,Monochrome |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | MJPEG,H.265,H.264 |
| Maximum Video Resolution | 2688 x 1520 |
| Thermal Video Resolution | 384 x 288 |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 6 mm |
| Maximum Thermal Focal Length | 0.59" (15 mm) |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mount Type | Conduit Mount,Corner Mount,Pole Mount |
| Form Factor | Bullet |
| Weight (Approximate) | 1.82 kg |
| Miscellaneous | |
| Package Contents | Thermal and Optical Network Bullet Camera Junction Box |
| Warranty | |
| Limited Warranty | 36 Month |
User Manual
FAQ
What is the resolution of this Hikvision camera?
The DS-2TD2637-15/P offers 4-megapixel resolution with a maximum video resolution of 2688x1520 pixels for the optical sensor. The thermal sensor provides 384x288 resolution for heat-based imaging. This combination ensures detailed visual capture and thermal detection capabilities.
How far does the night vision reach on this camera?
This camera provides night vision up to 50 meters (164.04 feet). It utilizes both optical and thermal sensors to maintain visibility in low-light or complete darkness, making it effective for perimeter security and outdoor surveillance applications.
What video formats does this camera support?
The camera supports MJPEG, H.265, and H.264 video formats. H.265 and H.264 compression help reduce bandwidth and storage requirements while maintaining video quality, which is particularly beneficial for continuous recording and network transmission.
Can this camera be used for thermal imaging?
Yes, this is a dual-sensor camera that includes both optical and thermal imaging. The thermal sensor uses vanadium oxide uncooled focal plane arrays to detect heat signatures, providing surveillance capability in conditions where traditional optical cameras may be limited.
What mounting options are available for this bullet camera?
The DS-2TD2637-15/P supports conduit mount, corner mount, and pole mount installations. This flexibility allows deployment in various outdoor scenarios, including walls, corners, and freestanding poles, without requiring additional mounting brackets in most cases.
What is included in the package with this camera?
The package includes the thermal and optical network bullet camera and a junction box. These components provide everything needed for basic installation and connectivity in typical surveillance deployments.
What connectivity or interface options are available?
Connectivity options include Wired, helping the product integrate into common office or home setups.
