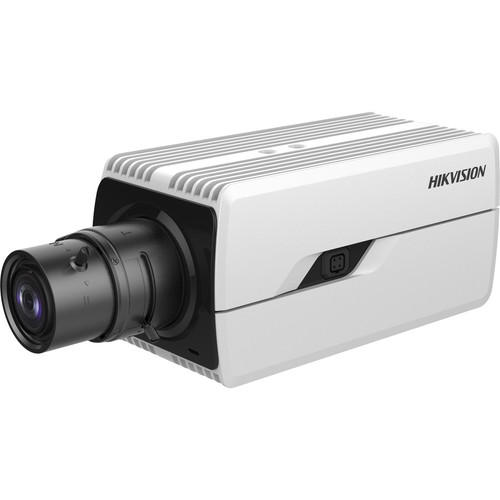

Hikvision IDS-2CD7046G0-AP DeepinView 4MP Indoor Box Network Camera - 2680 x 1520 - H. 265+ - CS-Mount - 30 fps - Motion Detection
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This section brings together practical product details such as HD Recording, Image Sensor Type, Color Supported, Effective Camera Resolution, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Video Compression & Formats
Supports H.264, H.264+, H.265, H.265+, and MJPEG compression, allowing efficient bandwidth and storage management. H.265+ technology reduces file sizes while maintaining quality, ideal for extended recording periods.
- H.264/H.265 standard and plus variants
- MJPEG for compatibility
- Optimized for network efficiency
Imaging & Sensor Details
Uses a CMOS sensor that provides 4-megapixel resolution with color output. The sensor supports day/night operation and includes backlight compensation (BLC) and electronic image stabilization for consistent video quality.
- 4MP CMOS sensor
- Color imaging
- Day/night capability
Key Product Advantages
This camera combines high-resolution imaging with intelligent analytics and durable construction, offering distinct benefits for surveillance deployments.
Smart Video Analytics
Includes motion detection, cross-line detection, audio detection, face detection, and tampering alarm features. These analytics enhance security by triggering alerts for specific events, reducing false alarms and manual monitoring effort.
- Motion and audio detection
- Face and cross-line detection
- Tampering alarm
Enhanced Image Quality
Features 3D digital noise reduction, defog, and built-in HLC (Highlight Compensation) to improve clarity in various conditions. These technologies ensure usable footage in low light, fog, or high-contrast scenes.
- 3D noise reduction
- Defog function
- Highlight compensation
Deployment / Use Cases
Designed for indoor surveillance, the IDS-2CD7046G0-AP is suitable for retail stores, offices, schools, and healthcare facilities where detailed monitoring is required. Its box form factor and multiple mount options allow installation on walls, ceilings, columns, or poles.
The camera's support for SD card storage and remote management enables standalone or networked setups. It integrates smoothly with Hikvision and third-party VMS platforms, providing flexibility for small-scale or expanding security systems.
Commercial Security
Ideal for monitoring entrances, lobbies, and high-traffic areas with its 4MP resolution and analytics. The wired connectivity ensures stable footage for evidence and real-time oversight.
- Retail and office environments
- Entrance and lobby monitoring
- Evidence-grade video
Institutional Monitoring
Suits schools, hospitals, and government buildings where reliability and clear imaging are critical. The indoor rating and robust temperature range support consistent operation in controlled environments.
- Educational and healthcare settings
- Temperature-resistant operation
- Secure HTTPS streaming
Physical Profile
The camera features a compact box design measuring 5.61 inches in height and weighing approximately 730 grams. Its construction supports pendant, wall, column, and pole mounting, offering installation versatility for different ceiling heights and angles.
A CS-mount lens interface allows for lens customization if needed, though it comes with a fixed lens. The unit operates reliably in temperatures from -22°F to 140°F and up to 95% humidity, ensuring performance in varied indoor climates.
- Height
- 5.61" (142.50 mm)
- Weight
- 730 g
Highlights
- 4-megapixel resolution (2680 x 1520) for detailed surveillance footage
- H.265+ and H.264+ compression for efficient bandwidth and storage use
- CS-mount lens system with f/1.2 aperture for low-light performance
- Smart analytics including motion, audio, and face detection
- Supports SD card local storage and built-in microphone for audio recording
- Flexible mounting: pendant, wall, column, and pole options
- Wired connectivity with remote management capabilities
- Operates in temperatures from -22°F to 140°F (-30°C to 60°C)
- Includes 3D digital noise reduction, defog, and highlight compensation
- Indoor use with HTTPS encryption and password protection for security
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | IDS-2CD7046G0-AP |
| Brand Name | Hikvision |
| Product Line | DeepinView |
| Product Model | iDS-2CD7046G0-AP |
| Product Name | 4 MP Box Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.264,H.264+,H.265,H.265+,MJPEG |
| Maximum Video Resolution | 2680 x 1520 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Fixed |
| Lens Mount Type | CS-Mount |
| Maximum Aperture | f/1.2 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC,24 V AC |
| Physical Characteristics | |
| Mount Type | Pendant Mount,Wall Mount,Column Mount,Pole Mount |
| Form Factor | Box |
| Height | 5.61" (142.50 mm) |
| Weight (Approximate) | 730 g |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | 3D Digital Noise Reduction,Motion Detection,Cross Line Detection,Audio Detection,Face Detection,Back Light Compensation (BLC),Electronic Image Stabilization,Day/Night,HTTPS Encryption,Tampering Alarm,Region of Interest,Defog,Password Protection,SD Card Local Storage,Built-in Microphone,Audio Compression,Built-in Card Reader,Built-in HLC,Alarm Triggering |
| Indoor/Outdoor | Indoor |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
User Manual
FAQ
What is the resolution and frame rate of this Hikvision camera?
The camera provides 4-megapixel resolution at 2680 x 1520 pixels and records video at up to 30 frames per second. This combination delivers clear, smooth footage suitable for identifying details in surveillance scenarios.
Does this camera support H.265 compression?
Yes, it supports H.265, H.265+, H.264, H.264+, and MJPEG video formats. H.265+ technology offers advanced compression to reduce file sizes and bandwidth usage while maintaining high video quality, ideal for longer recording periods.
What mounting options are available for this box camera?
It supports pendant, wall, column, and pole mounting, providing flexibility for installation in various indoor locations. This versatility allows it to be mounted on ceilings, walls, or structural columns to achieve optimal viewing angles.
What smart analytics features does the camera include?
Analytics include motion detection, cross-line detection, audio detection, face detection, and tampering alarm. These features enable automated alerting for specific events, enhancing security monitoring without constant manual oversight.
Can this camera operate in low-light conditions?
Yes, it features a wide f/1.2 aperture, day/night functionality, and 3D digital noise reduction to improve performance in low light. Additionally, built-in HLC (Highlight Compensation) helps manage bright areas for balanced exposure.
What are the power requirements for this network camera?
It accepts 12 V DC or 24 V AC input, offering compatibility with common power supplies. This dual-voltage support provides flexibility for integration into existing electrical setups in commercial or institutional buildings.
What display size or resolution is listed?
It features a display specification of 4 Megapixel, giving you clear visuals for work and media use.
