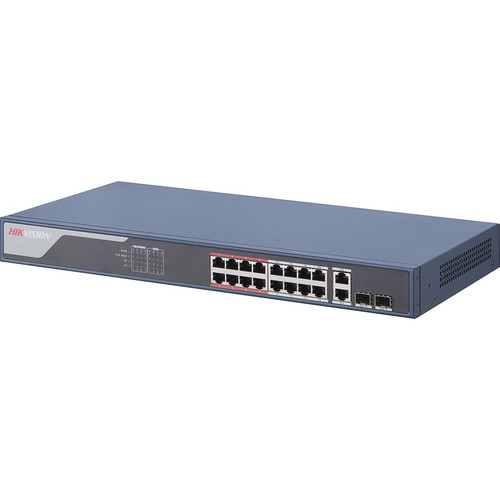

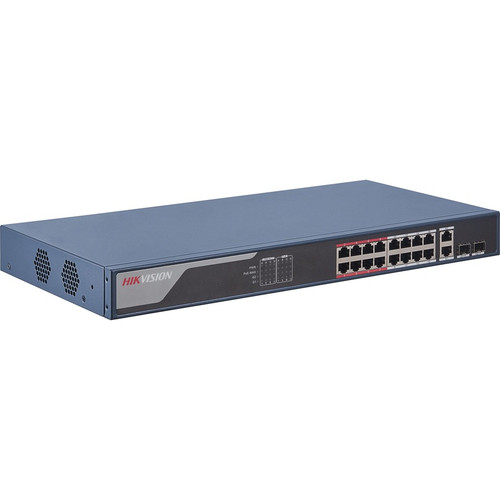

Hikvision DS-3E1318P-EI 16-Port Managed PoE Switch - 230W Budget - Dual SFP Slots - Layer 2 - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates with Fast Ethernet and Gigabit Ethernet technologies, supporting network standards including 100Base-T, 1000Base-X, and 1000Base-T across twisted pair and optical fiber media. The 16 PoE-capable RJ-45 ports provide up to 230W of total power budget, managed through an integrated power supply with 250W power consumption.
The dual Gigabit Ethernet TP/SFP combo ports serve as shared uplinks, allowing flexible connectivity via standard twisted pair cables or SFP modules for fiber optic links. Layer 2 support enables advanced switching features such as VLANs, QoS, and spanning tree protocols, while the manageable interface offers configuration, monitoring, and troubleshooting capabilities for network administrators.
Relevant factors for this section include Total Number of Network Ports, Modular, Port/Expansion Slot Details, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The DS-3E1318P-EI delivers reliable network foundation with integrated PoE, flexible uplinks, and professional rack-mount deployment. Its combination of high PoE budget and managed Layer 2 features ensures stable power delivery and network control for demanding business environments.
High PoE Capacity
With 230W total PoE budget, this switch can power multiple PoE devices simultaneously, reducing the need for separate power injectors and simplifying cable management.
- Supports up to 16 PoE devices
- Integrated power supply
- Accurate voltage delivery
Flexible Uplink Options
Dual Gigabit Ethernet TP/SFP combo ports provide adaptable uplink connectivity, allowing network expansion via standard copper cables or SFP modules for fiber optic links.
- Two shared SFP slots
- Gigabit Ethernet support
- Fiber and copper media compatibility
Professional Deployment
Rack-mountable 1U form factor with standard dimensions enables clean installation in server racks or network cabinets, with organized cable routing and secure mounting.
- Standard rack mounting
- Compact 1U height
- Sturdy construction
Deployment / Use Cases
This switch is ideal for small to medium business networks, surveillance systems, and office environments requiring managed switching with PoE capabilities. Its 16-port configuration with PoE support makes it suitable for connecting and powering multiple network devices in centralized locations.
Common deployment scenarios include office network backbones where the switch connects workstations, printers, and wireless access points while providing PoE to security cameras and VoIP phones. The dual SFP uplinks enable connection to core switches or routers via fiber for longer distance links or electrical isolation, while the manageable Layer 2 features support network segmentation and traffic prioritization.
IP Surveillance Systems
Power and connect multiple IP cameras from a central location, with managed switching for video traffic isolation and reliable PoE delivery.
Office Network Expansion
Extend network connections to conference rooms, department workgroups, and lobby areas with Fast Ethernet ports and Gigabit uplinks.
Physical Profile
The DS-3E1318P-EI features a standard 1U rack-mountable form factor measuring 1.73 inches in height, 17.32 inches in length, and 8.69 inches in depth. This compact design fits most 19-inch server racks while providing adequate ventilation and cable management space. The switch weighs approximately 5.71 pounds, making it manageable for installation in various rack configurations without requiring additional support hardware.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (44 mm), 8.69" (220.80 mm), 5.71 lb (2590 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Depth
- 8.69" (220.80 mm)
- Height
- 1.73" (44 mm)
- Weight
- 5.71 lb (2590 g)
- Length
- 17.32" (440 mm)
Highlights
- 16-port managed Ethernet switch with 230W PoE budget
- Dual Gigabit Ethernet TP/SFP combo ports for flexible uplinks
- Layer 2 switching support with manageable interface
- Modular design with two SFP expansion slots
- Rack-mountable 1U form factor for professional installation
- Supports Fast Ethernet and Gigabit Ethernet technologies
- Compatible with twisted pair and optical fiber media
- Integrated power supply with 250W power consumption
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-3E1318P-EI |
| Brand Name | Hikvision |
| Product Series | Pro |
| Product Model | DS-3E1318P-EI |
| Product Name | DS-3E1318P-EI Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 16 |
| Modular | Yes |
| Port/Expansion Slot Details | 16 x Fast Ethernet PoE,2 x Gigabit Ethernet TP/SFP Combo |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Fast Ethernet,Gigabit Ethernet |
| Network Technology | 100Base-T,1000Base-X,1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Shared SFP Slot | Yes |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 230 W |
| Power Source | Power Supply |
| Power Consumption | 250 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Depth | 8.69" (220.80 mm) |
| Length | 17.32" (440 mm) |
| Weight (Approximate) | 5.71 lb (2590 g) |
FAQ
How many PoE devices can this switch power simultaneously?
The Hikvision DS-3E1318P-EI provides a total PoE budget of 230W across its 16 Fast Ethernet PoE ports. This allows simultaneous power delivery to multiple PoE devices such as IP cameras, wireless access points, or VoIP phones, with the exact number depending on each device's power requirements. The switch manages power allocation to ensure stable operation within its 230W capacity.
What types of uplink connections does this switch support?
This switch includes two Gigabit Ethernet TP/SFP combo ports that support both standard twisted pair copper connections and SFP module connections for fiber optic links. These shared ports allow flexible uplink configuration based on your network infrastructure, enabling connections to core switches or routers via Cat5e/Cat6 cables or various SFP transceivers for longer distance fiber links.
Is this switch manageable, and what features does it support?
Yes, the DS-3E1318P-EI is a fully manageable Layer 2 switch. It supports advanced switching features including VLANs for network segmentation, QoS for traffic prioritization, spanning tree protocols for loop prevention, and port configuration options. The manageable interface allows network administrators to monitor performance, configure settings, and troubleshoot connectivity issues through standard management protocols.
What are the physical dimensions and mounting options?
This switch measures 1.73 inches in height, 17.32 inches in length, and 8.69 inches in depth, with a weight of approximately 5.71 pounds. It features a standard 1U rack-mountable form factor designed for installation in 19-inch server racks or network cabinets. The compact design includes mounting ears and adequate ventilation for reliable operation in rack environments.
What network technologies and media types are supported?
The switch supports Fast Ethernet (100Base-T) and Gigabit Ethernet (1000Base-T, 1000Base-X) technologies across both twisted pair copper and optical fiber media. The 16 Fast Ethernet ports operate at 100Mbps, while the two Gigabit combo ports provide 1000Mbps connectivity. This dual-media support allows integration with existing copper cabling or fiber optic infrastructure as needed for different network segments.
What is the power consumption and electrical requirements?
The DS-3E1318P-EI has a maximum power consumption of 250W with an integrated power supply. It provides 230W of PoE budget for connected devices while consuming approximately 20W for its own switching operations. The switch operates on standard AC power and includes built-in power management to ensure accurate voltage delivery to all PoE ports while maintaining efficient overall power usage.
