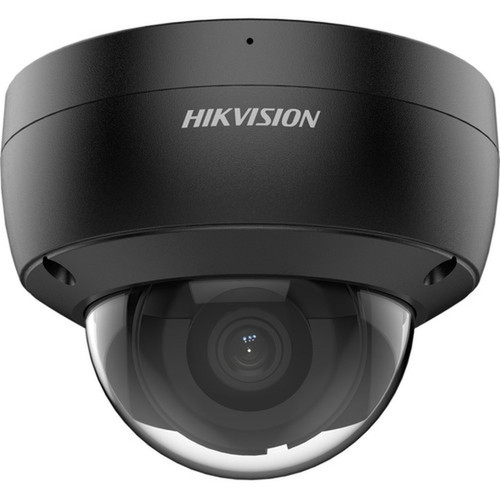

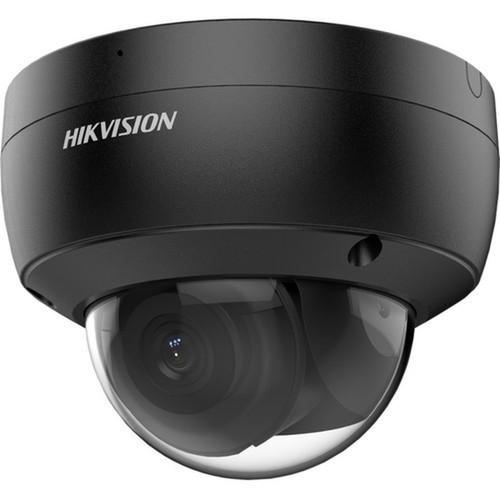

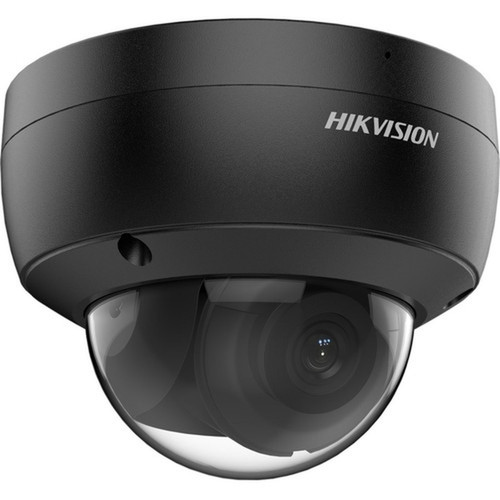

Hikvision DS-2CD2143G2-IU 2. 8MM EasyIP Pro 4MP Dome Network Camera - 30m Night Vision - H. 265+ - IP67 - IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera supports advanced video compression formats including H.265+, H.265, H.264+, H.264, and MJPEG, optimizing bandwidth and storage efficiency without compromising image clarity. The 1/100000 second to 1/3 second shutter speed range allows precise exposure control in varying lighting conditions.
Integrated features such as 3D digital noise reduction, back light compensation (BLC), and highlight compensation (HLC) enhance video quality in challenging environments. The camera operates reliably across a temperature range of -22°F to 140°F (-30°C to 60°C) and up to 95% humidity.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The DS-2CD2143G2-IU combines robust construction with intelligent surveillance features to deliver reliable performance in diverse settings. Its IP67 and IK10 ratings ensure resistance to water, dust, and vandalism, making it suitable for harsh environments.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Enhanced Security Features, Audio and Data Protection.
Enhanced Security Features
Advanced detection capabilities including motion detection, face detection, cross line detection, and tampering alarm provide proactive security monitoring.
- Motion Detection
- Face Detection
- Tampering Alarm
- Region of Interest
Audio and Data Protection
Built-in audio detection and compression support two-way audio, while HTTPS encryption and password protection secure data transmission and access.
- Audio Detection
- HTTPS Encryption
- Password Protection
Deployment / Use Cases
This dome camera is ideal for commercial, industrial, and institutional surveillance applications where durability and high-resolution monitoring are essential. Its multiple mounting options—including junction box, wall, corner, pendant, and pole mounts—offer flexible installation for ceilings, corridors, entrances, and perimeter security.
The 30-meter night vision capability ensures continuous operation in low-light conditions, while the wide field of view covers large areas such as retail floors, parking lots, warehouses, and school campuses. Integration with SD card local storage allows for standalone recording or backup in network video recorder (NVR) systems.
Retail and Commercial Security
Monitor sales floors, entry points, and storage areas with clear 4MP video and vandal-resistant design.
Industrial and Outdoor Monitoring
Withstand extreme temperatures and harsh weather using IP67 sealing for factories, construction sites, and parking facilities.
Physical Profile
The dome form factor measures 4.78 inches (121.40 mm) in diameter and weighs 1.26 pounds (570 grams), offering a compact and discreet profile. The vandal-resistant construction and multiple mounting types support secure installation in high-traffic or exposed locations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.26 lb (570 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.26 lb (570 g)
- Length
- 2.8 mm (0.11")
Highlights
- 4MP resolution (2688 x 1520) for detailed surveillance video
- 30-meter night vision with infrared illumination
- Wide 122° diagonal field of view for extensive coverage
- H.265+ and H.264+ video compression for efficient bandwidth use
- IP67 and IK10 ratings for water, dust, and impact resistance
- Multiple mounting options: wall, corner, pendant, pole, and junction box
- Built-in SD card slot for local storage backup
- Advanced features: motion detection, face detection, tampering alarm
- Operates in temperatures from -22°F to 140°F (-30°C to 60°C)
- Wired connectivity with remote management support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CD2143G2-IU 2.8MM |
| Brand Name | Hikvision |
| Product Line | EasyIP |
| Product Series | Pro |
| Product Model | DS-2CD2143G2-IU |
| Product Name | 4 MP AcuSenseFixed Dome Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.264+,H.264,MJPEG,H.265,H.265+ |
| Maximum Video Resolution | 2688 x 1520 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1/3 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mount Type | Junction Box Mount,Wall Mount,Corner Mount,Pendant Mount,Pole Mount |
| Form Factor | Dome |
| Durability | Water Resistant,Dust Resistant,Vandal Resistant |
| Diameter | 4.78" (121.40 mm) |
| Weight (Approximate) | 1.26 lb (570 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Ingress Protection,Highlight Compensation (HLC),3D Digital Noise Reduction,Motion Detection,Cross Line Detection,Face Detection,Back Light Compensation (BLC),Day/Night,Tampering Alarm,Region of Interest,Password Protection,SD Card Local Storage,Built-in Card Reader,Audio Detection,Audio Compression,HTTPS Encryption,Alarm Triggering |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
User Manual
FAQ
What is the resolution and field of view of this Hikvision camera?
The camera delivers 4MP resolution at 2688 x 1520 pixels with a wide 122° diagonal field of view. This combination provides detailed video coverage across large areas, making it effective for monitoring entrances, hallways, or open spaces.
How far does the night vision reach on this model?
Night vision extends up to 98.43 feet (30 meters), ensuring reliable monitoring in low-light or complete darkness. This range supports 24/7 surveillance for outdoor perimeters, parking lots, or dimly lit interiors.
What video compression formats does the camera support?
It supports H.265+, H.265, H.264+, H.264, and MJPEG formats. H.265+ offers advanced compression to reduce bandwidth and storage needs while maintaining high video quality, ideal for network efficiency.
Is this camera suitable for outdoor use?
Yes, with an IP67 rating for water and dust resistance and an IK10 impact protection rating, it is built for harsh outdoor environments. It operates in temperatures from -22°F to 140°F (-30°C to 60°C) and withstands vandalism.
What mounting options are available?
The camera supports junction box, wall, corner, pendant, and pole mounts. This flexibility allows installation on ceilings, walls, corners, or poles to adapt to various surveillance layouts and architectural requirements.
Does it include local storage capabilities?
Yes, it features a built-in SD card slot for local storage, providing backup recording or standalone operation without a network video recorder. This adds redundancy and simplifies deployment in smaller setups.
What display size or resolution is listed?
It features a display specification of 4 Megapixel, giving you clear visuals for work and media use.
