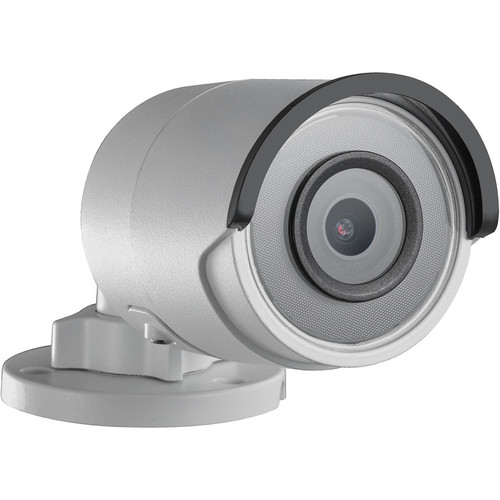

Hikvision DS-2CD2043G0-I 2. 8MM EasyIP 4MP Outdoor Bullet Camera - White - Infrared Night Vision - 2. 8mm Lens - PoE - IP67
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera utilizes a CMOS image sensor for efficient power consumption and high-definition video output. It records in multiple video formats including H.265, H.264+, and MJPEG, offering compression flexibility for storage optimization. The lens system includes an M12-mount with a maximum aperture of f/1.6, enhancing low-light performance.
Exposure control ranges from 1/100000 second to 1/3 second, accommodating various lighting scenarios. The camera supports remote management via its wired Ethernet connection and includes an RJ-45 port for network integration. Local storage is available through a memory card slot, providing on-device recording capability.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This camera combines high-resolution imaging with robust outdoor durability, making it a practical choice for continuous surveillance. Its infrared night vision and wide dynamic range features ensure consistent performance across day and night cycles.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Advanced Video Intelligence, Enhanced Image Quality.
Advanced Video Intelligence
Includes motion detection, face detection, and cross-line detection for automated alerting and reduced false alarms.
- Region of Interest
- Alarm Triggering
- 3D Digital Noise Reduction
Enhanced Image Quality
Back light compensation and highlight compensation technologies optimize video clarity in challenging lighting conditions.
- HTTPS Encryption
- Password Protection
- Color Supported
Deployment / Use Cases
Ideal for perimeter security, parking lots, and building exteriors where reliable outdoor monitoring is required. The conduit and junction box mounting options facilitate secure installation on walls or ceilings.
Suitable for small to medium business environments, retail stores, and industrial sites needing cost-effective surveillance with PoE support. Its IP67 rating ensures operation in rainy or dusty conditions, extending deployment flexibility.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Outdoor Perimeter Monitoring
The bullet design and infrared night vision provide 24/7 coverage for fences, gates, and entry points.
Business Security Integration
Easily integrates into existing network video systems using standard protocols and remote management tools.
Physical Profile
The camera measures 6.10 inches in height and length, with a width of 2.76 inches, presenting a compact bullet form factor. Weighing approximately 14.82 ounces, it is lightweight yet durable with water and dust resistance. The white finish blends with exterior surfaces, and the design supports both conduit and junction box mounting for secure outdoor placement.
- Width
- 2.76" (70 mm)
- Height
- 6.10" (155.03 mm)
- Weight
- 14.82 oz (420 g)
- Length
- 2.8 mm (0.11")
Highlights
- 4-megapixel resolution for detailed 2688x1520 video surveillance
- Infrared night vision effective up to 98 feet (30 meters)
- Fixed 2.8mm lens with wide 103° horizontal field of view
- Power over Ethernet (PoE) and 12V DC dual power options
- IP67-rated for dust and water resistance in outdoor environments
- Supports H.265, H.264+, and MJPEG video compression formats
- Includes motion detection, face detection, and cross-line detection features
- Remote management capability via wired network connection
- Memory card slot for local storage backup
- 3-year limited warranty for reliable long-term use
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CD2043G0-I 2.8MM |
| Brand Name | Hikvision |
| Product Line | EasyIP 2.0plus |
| Product Model | DS-2CD2043G0-I |
| Product Name | 4 MP Outdoor IR Fixed Bullet Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123°,4 mm, |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.265,MJPEG,H.264+,H.264,H.265+,H.264 (MP),H.264 HP,H.265 (MP) |
| Maximum Video Resolution | 2688 x 1520 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1/3 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Conduit Mount,Junction Box Mount |
| Form Factor | Bullet |
| Durability | Water Resistant,Dust Resistant |
| Height | 6.10" (155.03 mm) |
| Width | 2.76" (70 mm) |
| Length | 6.10" (155.03 mm) |
| Diameter | 2.76" (70 mm) |
| Weight (Approximate) | 14.82 oz (420 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 86°F (30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Region of Interest,Cross Line Detection,Face Detection,Motion Detection,Alarm Triggering,SD Card Local Storage,Back Light Compensation (BLC),3D Digital Noise Reduction,Highlight Compensation (HLC),HTTPS Encryption,Password Protection |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP67 |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum resolution of this Hikvision camera?
The camera delivers 4-megapixel resolution with a maximum video resolution of 2688 x 1520 pixels at 30 frames per second. This provides clear, detailed imagery suitable for identifying faces and license plates in surveillance footage.
How far does the night vision reach on this model?
The infrared night vision is effective up to 98.43 feet (30 meters). This allows the camera to maintain visibility in complete darkness, making it reliable for 24/7 outdoor monitoring applications.
Can this camera be powered using Power over Ethernet?
Yes, the camera supports both 12V DC power and Power over Ethernet (PoE). This dual power flexibility simplifies installation by allowing power and data transmission over a single Ethernet cable where PoE switches or injectors are available.
Is this camera suitable for outdoor use in harsh weather?
Yes, with an IP67 ingress protection rating, the camera is dust-tight and can withstand temporary immersion in water. It operates in temperatures from 86°F to 140°F and up to 95% humidity, making it durable for outdoor environments.
What mounting options are available for this bullet camera?
The camera supports conduit mount and junction box mount installations. This allows secure attachment to walls, ceilings, or poles, providing flexibility for various outdoor surveillance setups.
Does this camera include video analytics features?
Yes, it includes several intelligent video features such as motion detection, face detection, cross-line detection, and region of interest. These analytics help reduce false alarms and focus recording on important events.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
