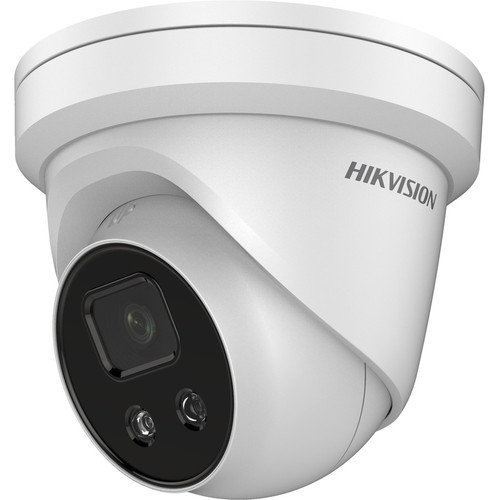

Hikvision DS-2CD2386G2-I 4MM EasyIP Pro 8MP Outdoor Turret Network Camera - 4K - 30m Night Vision - Fixed 4mm Lens
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera features an 8-megapixel CMOS sensor that provides superior image quality with efficient power consumption compared to traditional CCD sensors. The fixed 4mm lens offers a consistent field of view, ideal for focused monitoring areas without the need for adjustment. Video output supports multiple formats including H.264, H.265, MJPEG, and their enhanced variants, ensuring compatibility with various recording and playback systems.
Network connectivity is handled through a wired RJ-45 interface, enabling stable data transmission and remote management capabilities. The camera's physical design includes a 138.30 mm diameter turret housing that supports junction box, pendant, and wall mounts, offering flexibility in placement. With a weight of 740 grams, it is built to withstand outdoor conditions while maintaining a compact footprint.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The DS-2CD2386G2-I 4MM combines high-resolution imaging with practical features that enhance surveillance effectiveness. Its 4K video capability captures fine details, crucial for identifying subjects or incidents in recorded footage. The extended night vision range ensures reliable performance in darkness, supported by infrared technology that does not require visible light.
Efficient Video Compression
Support for H.265+ and H.264+ reduces bandwidth and storage demands without compromising video quality, making it cost-effective for large-scale deployments.
- Bandwidth optimization
- Storage savings
- Compatibility with modern NVRs
Versatile Mounting Options
Multiple mount types allow for easy installation in diverse environments, from ceilings to walls, adapting to specific surveillance needs.
- Junction box compatibility
- Pendant and wall mounts
- Outdoor durability
Deployment / Use Cases
This camera is designed for outdoor surveillance applications where high-definition monitoring and reliability are paramount. It excels in environments such as retail storefronts, parking lots, building perimeters, and industrial sites, providing clear video evidence for security and operational oversight. The turret design deters tampering and blends into architectural settings, making it less obtrusive than traditional bullet cameras.
In networked security systems, it integrates seamlessly with Hikvision NVRs and third-party video management software, supporting remote access and management. Use cases include 24/7 monitoring for loss prevention, traffic observation, and perimeter protection, leveraging its night vision and weather-resistant construction. For businesses requiring scalable surveillance, this camera offers a balance of performance and practicality.
Physical Profile
The camera features a turret form factor with a diameter of 138.30 mm (5.44 inches), designed for discreet installation and resistance to environmental factors. Its compact size and 740-gram weight facilitate easy mounting on various surfaces without requiring extensive support structures. The housing is built to endure outdoor exposure, ensuring long-term durability in surveillance deployments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 740 g. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 740 g
- Length
- 4 mm
Highlights
- 8-megapixel resolution for 4K Ultra HD video at 3840 x 2160
- 30-meter infrared night vision for clear monitoring in low-light conditions
- Fixed 4mm lens provides a consistent field of view without adjustment
- CMOS sensor offers efficient power use and high-quality imaging
- Supports H.264, H.265, MJPEG, and enhanced compression formats
- Wired RJ-45 connectivity for stable network integration
- Multiple mounting options: junction box, pendant, and wall mounts
- Turret design enhances durability and deters tampering
- Remote management capability for easy system oversight
- Ideal for outdoor surveillance in commercial and industrial settings
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CD2386G2-I 4MM |
| Brand Name | Hikvision |
| Product Line | EasyIP |
| Product Series | Pro |
| Product Model | DS-2CD2386G2-I |
| Product Name | 4K AcuSense Fixed Turret Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 98.43 ft (30 m) |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | H.264+,MJPEG,H.264,H.265,H.265+ |
| Maximum Video Resolution | 3840 x 2160 |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 4 mm |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mount Type | Junction Box Mount,Pendant Mount,Wall Mount |
| Form Factor | Turret |
| Diameter | 5.44" (138.30 mm) |
| Weight (Approximate) | 740 g |
User Manual
FAQ
What is the video resolution of this Hikvision camera?
This camera delivers 8-megapixel video at a maximum resolution of 3840 x 2160, which is 4K Ultra HD. This high resolution ensures detailed imagery for identifying subjects and incidents in surveillance footage, making it suitable for applications where clarity is critical.
How far does the night vision reach on this model?
The night vision range is 98.43 feet (30 meters), allowing for reliable monitoring in low-light or dark conditions. This extended range is achieved through infrared technology, enabling the camera to capture clear video without visible light, which is essential for 24/7 security operations.
What type of lens does this camera have?
It features a fixed 4mm lens, which provides a consistent field of view without the need for manual adjustment. This lens type is ideal for focused monitoring areas, such as entry points or specific zones, where a stable perspective is required for effective surveillance.
Can this camera be used outdoors?
Yes, this is an outdoor turret network camera designed to withstand environmental conditions. Its robust construction and multiple mounting options make it suitable for exterior installations, such as on building exteriors, parking lots, or perimeters, ensuring durability in various weather scenarios.
What video formats are supported by this camera?
It supports multiple video formats including H.264, H.265, MJPEG, and their enhanced variants like H.264+ and H.265+. These formats offer efficient compression to reduce bandwidth and storage usage while maintaining video quality, compatible with most network video recorders and management systems.
How is this camera mounted and installed?
The camera supports junction box, pendant, and wall mounts, providing flexibility for different installation needs. Its turret form factor and 138.30 mm diameter allow for discreet placement, and the wired RJ-45 connectivity ensures a stable network connection, simplifying setup in surveillance networks.
What connectivity or interface options are available?
Connectivity options include Wired, helping the product integrate into common office or home setups.
