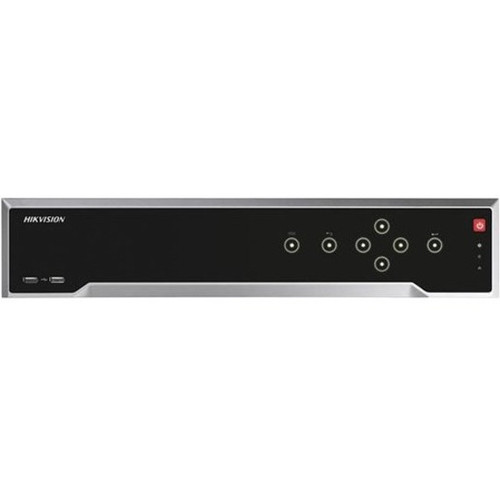

Hikvision DS-7716NI-I4/16P-16TB 16-Channel 4K NVR with 16 TB HDD - 1080p HD Recording - HDMI - Remote Management
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This NVR features 16 channels for connecting IP cameras, each capable of recording in HD quality. The 16 TB installed hard drive offers ample space for extended video retention, reducing the need for frequent archiving. Video compression leverages H.265 efficiency to optimize storage usage without compromising clarity.
Network communication is handled through a dedicated Ethernet port, enabling remote access and management via Hikvision's software platforms. The recorder supports simultaneous output through HDMI and VGA, catering to different display setups. Audio connectivity includes one input and one output port for integrating microphone and speaker systems.
This section brings together practical product details such as Total Number of Channels, Connectivity Technology, Recording Formats, Hard Drive Capacity, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The DS-7716NI-I4/16P-16TB simplifies surveillance deployment with its embedded design and pre-installed storage. Users benefit from immediate operation without additional hard drive installation or complex configuration. The remote management capability allows monitoring and control from any internet-connected device, enhancing operational flexibility.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include High-Capacity Recording, Multi-Format Compatibility.
High-Capacity Recording
The 16 TB hard drive supports extensive video archives, ideal for environments requiring long retention periods or high-resolution footage.
- Reduces storage maintenance
- Enables continuous recording
Multi-Format Compatibility
Support for MPEG-4, H.264, and H.265 ensures compatibility with a wide range of IP cameras and optimizes bandwidth usage.
- Future-proof compression
- Efficient network utilization
Deployment / Use Cases
This NVR is tailored for small-to-mid range surveillance applications such as retail stores, office buildings, and educational facilities. Its 16-channel capacity handles multiple camera feeds, providing comprehensive coverage of entrances, corridors, and common areas. The plug-and-play setup minimizes installation time, making it suitable for quick deployments or system upgrades.
Remote management enables centralized monitoring for multi-site operations, allowing security personnel to oversee locations from a single interface. The low power consumption and compact size facilitate integration into existing IT racks or discreet desktop placements. Use cases include loss prevention monitoring, access control verification, and general security surveillance where reliable recording and easy access are priorities.
Retail Security
Monitor sales floors, stock rooms, and entrances with multiple camera feeds, using the 16 TB storage for extended incident review.
Office Surveillance
Secure lobbies, parking lots, and internal corridors while enabling remote access for off-site management teams.
Physical Profile
The recorder measures 2.80 inches in height, 17.50 inches in width, and 15.40 inches in depth, with a weight of approximately 5 kg. This compact form factor fits standard 19-inch rack mounts or desktop placements, and the low-profile design conserves space in server rooms or security closets. The sturdy construction ensures durability in continuous operation environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.80" (71.12 mm), 17.50" (444.50 mm), 15.40" (391.16 mm), 5 kg. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.50" (444.50 mm)
- Depth
- 15.40" (391.16 mm)
- Height
- 2.80" (71.12 mm)
- Weight
- 5 kg
Highlights
- 16 channels for small-to-mid range surveillance requirements
- 16 TB pre-installed hard drive for substantial recording capacity
- 1080p HD recording with MPEG-4, H.264, and H.265 video formats
- Remote management over Ethernet for control from anywhere
- HDMI and VGA outputs for flexible display connectivity
- USB port for easy data transfer and peripheral connectivity
- Low 20 W power consumption for energy-efficient operation
- 3-year limited warranty for reliable long-term use
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-7716NI-I4/16P-16TB |
| Brand Name | Hikvision |
| Product Series | 7700 |
| Product Model | DS-7716NI-I4/16P |
| Product Name | Embedded Plug & Play 4K NVR |
| Product Type | Video Surveillance Station |
| Technical Information | |
| Total Number of Channels | 16 |
| Connectivity Technology | Wired |
| Recording Formats | HD |
| HD Recording | Yes |
| System Components | Network Video Recorder |
| Storage | |
| Hard Drive Capacity | 16 TB |
| Video | |
| Video Formats | MPEG-4,H.264,H.265 |
| Maximum Resolution | 1920 x 1080 |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Composite Video In | Yes |
| Total Number of Audio In Ports | 1 |
| Total Number of Audio Out Ports | 1 |
| Number of VGA Out | 1 |
| HDMI | Yes |
| Power Description | |
| Power Consumption | 20 W |
| Physical Characteristics | |
| Height | 2.80" (71.12 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 15.40" (391.16 mm) |
| Weight (Approximate) | 5 kg |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many cameras can I connect to this NVR?
The Hikvision DS-7716NI-I4/16P-16TB supports up to 16 channels, allowing connection of 16 IP cameras. This capacity is suitable for small-to-mid range surveillance setups covering multiple areas like entrances, hallways, or parking lots.
What is the maximum recording resolution supported?
This NVR records video at a maximum resolution of 1920 x 1080 (1080p HD). It handles HD recording with support for MPEG-4, H.264, and H.265 video formats, ensuring clear footage for security monitoring.
How much storage capacity does it have installed?
The recorder comes with a 16 TB hard drive pre-installed. This provides ample local storage for extended video archives, reducing the need for external storage solutions or frequent data management.
Can I manage this NVR remotely?
Yes, the NVR features remote management over Ethernet. You can access and control connected IP cameras from different locations via an internet connection, using Hikvision's software platforms for centralized surveillance.
What video output options are available?
Output options include HDMI and VGA ports, allowing connection to monitors or displays for local viewing. This flexibility supports various display setups in control rooms or security stations.
What is the power consumption of this recorder?
Power consumption is 20 W, making it an energy-efficient choice for continuous operation. The low power draw helps reduce operational costs and supports integration into environments with power constraints.
What storage is included?
The system includes 16 TB of storage for applications, files, and everyday business data.
