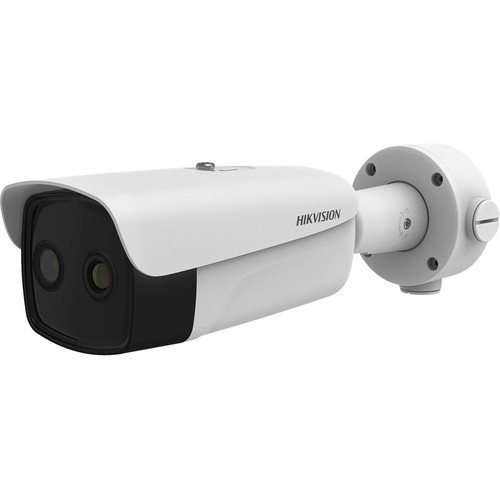

Hikvision DS-2TD2637T-15/P Thermographic Thermal & Optical Bi-Spectrum Network Bullet Camera - 2688 x 1520 Resolution - 131 ft Night Vision - IP66
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The camera utilizes a CMOS image sensor for optical video and a vanadium oxide uncooled focal plane array for thermal imaging, providing dual-spectrum detection. Video is encoded in H.265, H.264, and MJPEG formats to balance quality with bandwidth efficiency.
Network connectivity is wired via RJ-45, supporting remote management for configuration and monitoring. The unit includes features like cross-line detection, 3D digital noise reduction, and surge protection to enhance operational reliability in surveillance networks.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The fixed 6 mm lens and f/1.6 aperture provide consistent field of view and light capture, while features like auto gain control and audio compression enhance video clarity and functionality. Local storage via SD card adds flexibility for data retention without continuous network dependency.
Dual-Spectrum Detection
Combines optical and thermal imaging to improve detection accuracy in low-light or adverse weather conditions where traditional cameras may struggle.
- Optical resolution: 2688 x 1520
- Thermal resolution: 1280 x 720
- Color-supported optical imaging
Outdoor Durability
Built with an IP66 rating and wide operating temperature range for resilience in harsh environments, from freezing winters to hot summers.
- IP66 dust/water resistance
- Operates from -40°F to 149°F
- 95% max humidity tolerance
Deployment / Use Cases
This camera fits scenarios requiring reliable 24/7 surveillance with minimal maintenance. Its bi-spectrum approach reduces false alarms by correlating optical and thermal data, making it effective for critical infrastructure or high-security areas.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Perimeter Security
Ideal for monitoring fences, gates, and building exteriors where long-range night vision up to 131 ft and multiple mounting options ensure comprehensive coverage.
- Vehicle, pole, and corner mounts
- 131 ft night vision range
- Cross-line detection for intrusion alerts
Industrial & Transportation Monitoring
Suited for warehouses, parking lots, or ports where thermal imaging helps detect activity in low-visibility conditions and the rugged design withstands environmental stressors.
- Thermal imaging for fog/rain
- Wide temperature tolerance
- Surge protection for electrical stability
Physical Profile
The bullet form factor measures with a maximum focal length of 6 mm for optical imaging and 0.59" (15 mm) for thermal. Weighing approximately 1.82 kg, it is designed for stable installation on various surfaces including vehicles, junction boxes, poles, and corners. The robust construction ensures durability against physical impacts and environmental exposure.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.82 kg. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.82 kg
- Length
- 6 mm
What's in the Box
The package includes the thermographic thermal and optical bi-spectrum network bullet camera and a junction box for secure mounting and cable management.
Package contents include Thermographic Thermal & Optical Bi-Spectrum Network Bullet Camera Junction Box, Thermographic Thermal & Optical Bi-Spectrum Network Bullet Camera. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Thermographic thermal and optical bi-spectrum network bullet camera for dual detection
- 2688 x 1520 maximum video resolution at 30 fps for detailed HD recording
- 131.23 ft (40 m) night vision distance with CMOS and thermal sensors
- IP66-rated outdoor housing resistant to dust and water ingress
- Multiple mounting options: vehicle, junction box, vertical, pole, and corner
- Wired connectivity with RJ-45 and remote management support
- 24 V AC input voltage for reliable power in surveillance setups
- Features include cross-line detection, 3D noise reduction, and SD card local storage
- Wide operating temperature range from -40°F to 149°F (-40°C to 65°C)
- Includes junction box in package for straightforward installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2TD2637T-15/P |
| Brand Name | Hikvision |
| Product Model | DS-2TD2637T-15/P |
| Product Name | Thermographic Thermal & Optical Bi-Spectrum Network Bullet Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 131.23 ft (40 m) |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Thermal Image Sensor Type | Vanadium Oxide Uncooled Focal Plane Arrays |
| Color Supported | Color |
| Video | |
| Video Formats | H.265,H.264,MJPEG |
| Maximum Video Resolution | 2688 x 1520 |
| Thermal Video Resolution | 1280 x 720 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 6 mm |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Maximum Thermal Focal Length | 0.59" (15 mm) |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 24 V AC |
| Physical Characteristics | |
| Mount Type | Vehicle Mount,Junction Box Mount,Vertical Mount,Pole Mount,Corner Mount |
| Form Factor | Bullet |
| Weight (Approximate) | 1.82 kg |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 149°F (65°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Cross Line Detection,Auto Gain Control,3D Digital Noise Reduction,Audio Compression,HTTPS Encryption,SD Card Local Storage,Surge Protection |
| Indoor/Outdoor | Outdoor |
| Package Contents | Thermographic Thermal & Optical Bi-Spectrum Network Bullet Camera Junction Box |
| Ingress Protection Rating | IP66 |
User Manual
FAQ
What is the resolution of this Hikvision camera?
The Hikvision DS-2TD2637T-15/P offers a maximum video resolution of 2688 x 1520 for optical imaging and a thermal video resolution of 1280 x 720. This high resolution ensures clear, detailed footage suitable for identifying objects and activities in surveillance applications.
How far does the night vision reach?
This camera provides night vision up to 131.23 feet (40 meters). It uses a combination of CMOS optical imaging and vanadium oxide uncooled focal plane arrays for thermal detection, enabling reliable monitoring in low-light or complete darkness.
Is this camera suitable for outdoor use?
Yes, the camera is designed for outdoor use with an IP66 ingress protection rating, making it dust-tight and resistant to powerful water jets. It operates in temperatures from -40°F to 149°F (-40°C to 65°C) and up to 95% humidity, ensuring durability in harsh environments.
What mounting options are available?
The camera supports multiple mounting types including vehicle mount, junction box mount, vertical mount, pole mount, and corner mount. This flexibility allows installation on various surfaces like walls, poles, or vehicles to achieve optimal viewing angles for surveillance.
What power supply does the camera require?
The camera requires a 24 V AC input voltage. This standard power specification is common in surveillance systems, providing stable operation for continuous recording and network connectivity in professional installations.
Does the camera support local storage?
Yes, the camera includes SD card local storage as a feature. This allows for on-device video recording without relying solely on network storage, adding redundancy and flexibility in data management for surveillance setups.
What display size or resolution is listed?
It features a display specification of 2688 x 1520, giving you clear visuals for work and media use.
