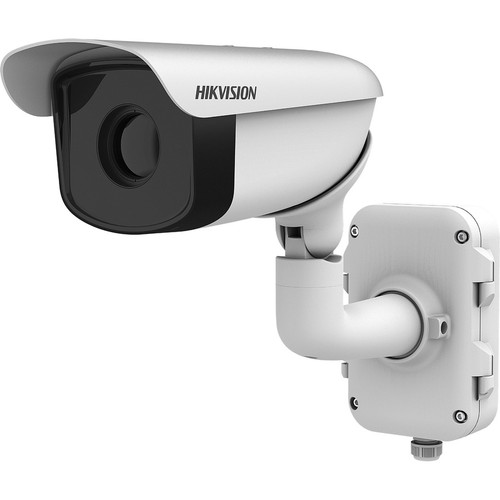

Hikvision DS-2TD2367-75/P Thermal Network Bullet Camera - 1280 x 720 HD - H. 265/H. 264/MJPEG - 25 fps - Fixed Lens - IP66
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This thermal camera captures video at 1280 x 720 HD resolution using a Vanadium Oxide Uncooled Focal Plane Arrays sensor, which enables effective thermal imaging without requiring active cooling. The fixed lens has a maximum aperture of f/1 and a thermal focal length of 2.95 inches (75 mm), providing a field of view of 8.3° horizontally by 6.6° vertically. Video is encoded in H.265, H.264, and MJPEG formats, balancing compression efficiency with quality, and supports a maximum frame rate of 25 fps for smooth playback.
Network connectivity is handled through a wired RJ-45 port, allowing for remote management and integration into existing IP surveillance systems. The camera operates on 24 V AC power and includes surge protection to safeguard against electrical disturbances. Additional technical features include auto gain control, 3D digital noise reduction, and HTTPS encryption for secure data transmission.
Key Product Advantages
The DS-2TD2367-75/P combines advanced thermal imaging with rugged construction to deliver a surveillance solution that excels in low-light and harsh conditions. Its thermal sensor provides reliable detection regardless of lighting, while the IP66 rating ensures protection against dust and water ingress, making it ideal for outdoor installations.
Enhanced Video Quality
Supports H.265 and H.264 compression for efficient bandwidth use without sacrificing detail, alongside MJPEG for compatibility.
- 1280 x 720 HD resolution
- 25 fps smooth video
- Color thermal imaging
Robust Security Features
Includes cross-line detection for intrusion alerts, audio compression for sound recording, and HTTPS encryption for secure data transfer.
- SD card local storage
- Surge protection
- Remote management capability
Deployment / Use Cases
This camera is tailored for scenarios where traditional visible-light cameras may fall short, such as in complete darkness or adverse weather. Its thermal imaging capability allows it to detect heat signatures, making it effective for perimeter security, border monitoring, and critical infrastructure protection where visibility is limited.
Common deployments include industrial facilities, warehouses, and remote outdoor sites where 24/7 surveillance is necessary. The bullet form factor and mounting options facilitate easy installation on walls or poles, while the wide operating temperature range from -40°F to 149°F ensures reliability in extreme climates. Integration with network video recorders (NVRs) and security management software enables centralized monitoring and alerting.
Perimeter Security
Ideal for monitoring fences, gates, and boundaries with thermal detection that works day and night.
Industrial Monitoring
Suitable for factories and plants where heat-based anomaly detection can prevent equipment failures or safety incidents.
Physical Profile
The camera features a bullet-style housing that is both durable and discreet, weighing approximately 14.11 pounds (6400 grams). This design supports straightforward mounting on various surfaces, and the included fixed lens eliminates the need for adjustments after installation. The robust construction, combined with an IP66 ingress protection rating, ensures long-term performance in outdoor environments exposed to rain, dust, and temperature fluctuations.
- Weight
- 14.11 lb (6400 g)
- Length
- 2.95" (75 mm)
Highlights
- Thermal imaging with Vanadium Oxide Uncooled Focal Plane Arrays sensor
- 1280 x 720 HD resolution at 25 fps maximum frame rate
- Supports H.265, H.264, and MJPEG video formats
- Fixed lens with 2.95" (75 mm) focal length and f/1 aperture
- Wired RJ-45 connectivity for stable network integration
- IP66 rating for dust and water resistance
- Operates from -40°F to 149°F (-40°C to 65°C)
- Includes SD card local storage and surge protection
- Features cross-line detection and HTTPS encryption
- Remote management capability for easy oversight
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2TD2367-75/P |
| Brand Name | Hikvision |
| Product Model | DS-2TD2367-75/P |
| Product Name | Thermal Network Bullet Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Display & Graphics | |
| Thermal Image Sensor Type | Vanadium Oxide Uncooled Focal Plane Arrays |
| Color Supported | Color |
| Field of View | 8.3° × 6.6° (H × V) |
| Video | |
| Video Formats | H.265,H.264,MJPEG |
| Thermal Video Resolution | 1280 x 720 |
| Maximum Frame Rate | 25 fps |
| Lens | |
| Lens Type | Fixed |
| Lens Included | Yes |
| Maximum Aperture | f/1 |
| Maximum Thermal Focal Length | 2.95" (75 mm) |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 24 V AC |
| Physical Characteristics | |
| Form Factor | Bullet |
| Weight (Approximate) | 14.11 lb (6400 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 149°F (65°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Cross Line Detection,Auto Gain Control,3D Digital Noise Reduction,Audio Compression,HTTPS Encryption,SD Card Local Storage,Surge Protection |
| Ingress Protection Rating | IP66 |
User Manual
FAQ
What type of sensor does this camera use for imaging?
The camera uses a Vanadium Oxide Uncooled Focal Plane Arrays thermal sensor. This sensor detects heat signatures to produce thermal images, allowing it to operate effectively in complete darkness or low-light conditions without requiring active cooling, making it suitable for 24/7 surveillance applications.
What is the video resolution and frame rate?
It records thermal video at 1280 x 720 HD resolution with a maximum frame rate of 25 frames per second. This combination provides clear, smooth video footage that is suitable for monitoring and playback, ensuring detailed imaging for security analysis.
Which video formats are supported?
The camera supports H.265, H.264, and MJPEG video formats. H.265 and H.264 offer efficient compression to save bandwidth and storage, while MJPEG provides compatibility with various systems, giving flexibility in recording and playback options.
Is this camera suitable for outdoor use?
Yes, it is designed for outdoor use with an IP66 ingress protection rating, which means it is dust-tight and protected against powerful water jets. It also operates in temperatures from -40°F to 149°F (-40°C to 65°C), making it durable in harsh weather conditions.
What power supply does the camera require?
The camera requires a 24 V AC input voltage. This standard power specification ensures compatibility with common surveillance system power supplies, and it includes surge protection to guard against electrical spikes in outdoor installations.
Does it support local storage?
Yes, it supports SD card local storage, allowing for on-device recording without always relying on network storage. This feature provides redundancy and flexibility in data management, useful in scenarios where network connectivity might be intermittent.
What display size or resolution is listed?
It features a display specification of 1280 x 720, giving you clear visuals for work and media use.
