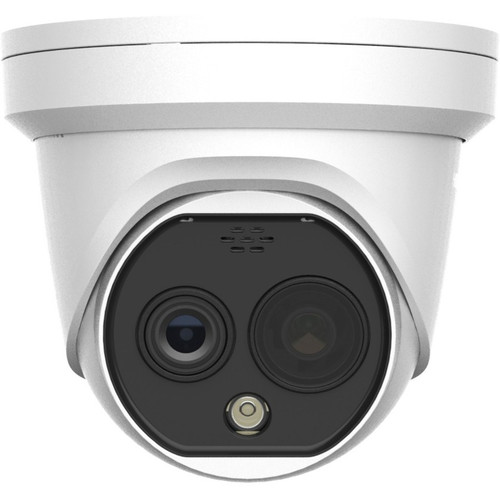

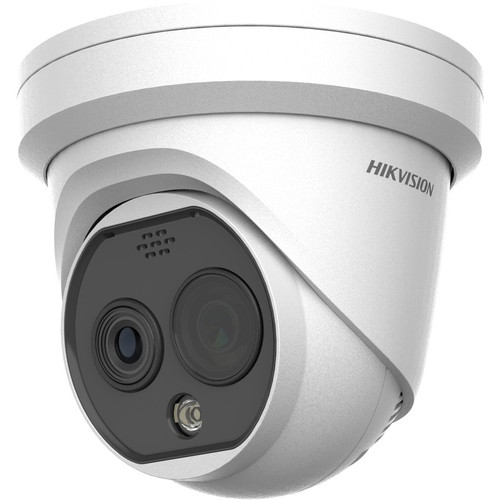

Hikvision DS-2TD1228T-3/QA HeatPro Bi-spectrum Thermography Network Turret Camera - 2688 x 1520 - Infrared Night Vision 49. 21 ft - IP66 - PoE/DC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera captures video at a maximum resolution of 2688 x 1520 with support for H.265, H.264, and MJPEG compression formats, optimizing bandwidth usage without compromising image quality. The thermal imaging component operates at 1280 x 720 resolution, enabling heat signature detection for enhanced security monitoring.
The fixed lens system includes a 4.3 mm focal length with an f/1.6 maximum aperture for visible light imaging, while the thermal lens features a 3.60 mm focal length. Exposure control ranges from 1/100,000 second to 1 second, allowing for precise image capture in varying lighting scenarios.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The HeatPro camera's dual-sensor architecture provides unmatched surveillance capabilities by combining traditional video monitoring with thermal imaging technology. This approach eliminates blind spots that conventional cameras might experience in low-light or adverse weather conditions, ensuring continuous security coverage.
Enhanced Night Vision
Infrared illumination extends visibility up to 49.21 feet (15 meters) in complete darkness, while the thermal sensor detects heat signatures beyond the range of traditional night vision.
- Infrared night vision
- Thermal imaging capability
- 15-meter detection range
Robust Environmental Protection
With an IP66 rating, this camera withstands dust ingress and powerful water jets, making it suitable for outdoor installations in harsh weather conditions.
- IP66 certified
- Wide temperature range
- 95% humidity tolerance
Flexible Power Options
The camera supports both 12V DC and Power over Ethernet (PoE) connectivity, simplifying installation by reducing cable requirements and enabling placement in locations without direct power access.
- PoE compatible
- 12V DC input
- Reduced wiring complexity
Deployment / Use Cases
This bi-spectrum thermography camera excels in perimeter security applications where traditional cameras may struggle with lighting challenges. The thermal imaging capability detects intruders based on heat signatures rather than visible light, making it effective for fence lines, parking lots, and remote facilities that require 24/7 monitoring.
Industrial environments benefit from the camera's rugged construction and wide operating temperature range. Manufacturing facilities, warehouses, and utility sites can deploy this camera for both security monitoring and process observation, with the thermal imaging helping to identify equipment overheating or energy inefficiencies before they become critical issues.
Critical Infrastructure Protection
Government facilities, power plants, and communication hubs utilize the camera's thermal detection to identify potential security threats in low-visibility conditions while maintaining visible light recording for forensic analysis.
Commercial Security Integration
Retail centers, office complexes, and educational institutions implement this camera as part of comprehensive security systems, leveraging SD card local storage for backup recording and remote management capabilities for centralized monitoring.
Physical Profile
The turret design provides 360-degree rotation capability for optimal positioning while maintaining a low-profile appearance that blends with architectural elements. Weighing approximately 2.07 pounds (940 grams), the camera offers substantial construction without excessive bulk, supporting secure mounting on walls, ceilings, or poles. The compact form factor accommodates both indoor and outdoor installations while providing access to adjustment points for field of view optimization.
- Weight
- 2.07 lb (940 g)
- Length
- 4.3 mm (0.17")
Highlights
- Bi-spectrum thermography combining visible light and thermal imaging
- 2688 x 1520 maximum video resolution with H.265/H.264/MJPEG support
- Infrared night vision extending to 49.21 feet (15 meters)
- IP66-rated weatherproof construction for outdoor deployment
- Power over Ethernet (PoE) and 12V DC power options
- Wide operating temperature range from -40°F to 149°F (-40°C to 65°C)
- SD card local storage for backup recording capability
- Remote management support for centralized surveillance control
- Fixed lens system with 4.3 mm focal length and f/1.6 aperture
- 84.0° × 43.1° and 50.0° × 37.3° dual field of view options
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2TD1228T-3/QA |
| Brand Name | Hikvision |
| Product Line | HeatPro |
| Product Model | DS-2TD1228T-3/QA |
| Product Name | Bi-spectrum Thermography Network Turret Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 49.21 ft (15 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Thermal Image Sensor Type | Vanadium Oxide Uncooled Focal Plane Arrays |
| Color Supported | Color |
| Field of View | 84.0° × 43.1° (H × V) , 50.0° × 37.3° (H × V) |
| Video | |
| Video Formats | H.265,H.264,MJPEG |
| Maximum Video Resolution | 2688 x 1520 |
| Thermal Video Resolution | 1280 x 720 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 4.3 mm (0.17") |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Maximum Thermal Focal Length | 0.14" (3.60 mm) |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Form Factor | Turret |
| Weight (Approximate) | 2.07 lb (940 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 149°F (65°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | SD Card Local Storage,Audio Compression,Wide Dynamic Range,Day/Night,White Balance,Auto Gain Control,3D Digital Noise Reduction,Cross Line Detection,Surge Protection |
| Ingress Protection Rating | IP66 |
User Manual
FAQ
What is the difference between this bi-spectrum camera and traditional security cameras?
This Hikvision HeatPro camera combines both visible light (CMOS sensor) and thermal imaging (vanadium oxide uncooled focal plane array) technologies in a single unit. Traditional cameras rely solely on visible light, which can be limited in complete darkness or adverse weather. The thermal imaging component detects heat signatures, allowing the camera to identify subjects based on temperature differences rather than visible light, providing reliable monitoring in challenging conditions where conventional cameras might fail.
How far does the night vision capability extend?
The infrared night vision illuminates subjects up to 49.21 feet (15 meters) in complete darkness. This measurement represents the effective range for the visible light imaging with infrared illumination. The thermal imaging component operates independently of visible light and can detect heat signatures beyond this range, though specific detection distances for thermal imaging depend on environmental factors and target characteristics.
What video resolutions does this camera support?
The camera captures visible light video at up to 2688 x 1520 resolution, which exceeds standard 1080p HD. The thermal imaging component operates at 1280 x 720 resolution. Both imaging systems support H.265, H.264, and MJPEG compression formats, with the camera capable of recording at 30 frames per second for smooth motion capture in surveillance applications.
Can this camera be used outdoors in extreme weather?
Yes, with an IP66 ingress protection rating, this camera is designed for outdoor deployment. The IP66 certification indicates complete protection against dust ingress and resistance to powerful water jets from any direction. The operating temperature range spans from -40°F to 149°F (-40°C to 65°C), and it tolerates up to 95% humidity, making it suitable for installation in harsh environmental conditions including extreme cold, heat, and high moisture environments.
What power options are available for this network camera?
The camera supports both 12V DC direct power and IEEE 802.3af Power over Ethernet (PoE). The PoE capability allows the camera to receive both data connectivity and electrical power through a single Ethernet cable, simplifying installation by eliminating the need for separate power wiring. This flexibility enables deployment in locations where direct power access might be challenging or where cable management is a priority.
What storage options does this camera support for video recording?
The camera includes local storage capability through a memory card slot, typically supporting SD cards for on-device recording. This provides backup storage in case of network interruptions or as supplementary storage to network video recorder systems. The camera also supports remote management, allowing integration with centralized surveillance systems that may include network-attached storage, cloud storage, or dedicated network video recorders for comprehensive video management.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
