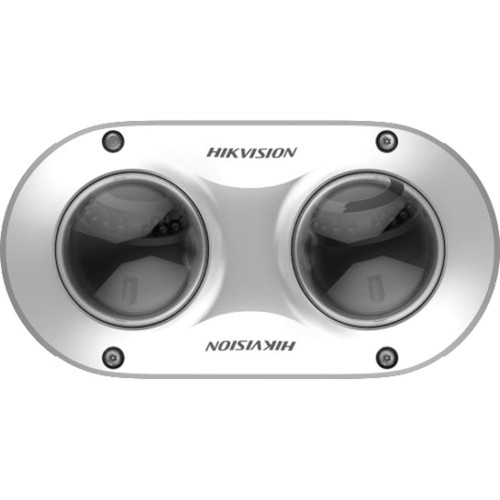

Hikvision DS-2CD6D82G0-IHS 2. 8MM Panoramic Network Camera - 8MP Outdoor - 10m IR Night Vision - 3840 x 2160 - IP67 - White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera utilizes two CMOS sensors to achieve panoramic imaging with an effective resolution of 8 megapixels. The camera records video at up to 3840x2160 resolution with a maximum frame rate of 24 fps, supporting modern compression formats like H.265+ for optimized storage. The lens system features a fixed 2.8mm focal length with an M12 mount and f/2 maximum aperture.
Technical capabilities include a wide dynamic range for challenging lighting, electronic image stabilization, and 3D digital noise reduction. The camera operates across an extensive temperature range from -40°F to 140°F and handles up to 95% humidity. Network connectivity is provided through wired RJ-45 with remote management support.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This camera delivers several distinct advantages for surveillance deployments. The panoramic dual-sensor design provides comprehensive coverage without blind spots, while the 8-megapixel resolution ensures detailed imagery for identification purposes. Advanced video processing features enhance performance in various conditions.
Enhanced Low-Light Performance
Infrared night vision with 10-meter reach combined with a removable IR cut-off filter enables clear monitoring around the clock. The camera automatically switches between day and night modes for optimal image quality.
- 10m infrared illumination
- Removable IR cut-off filter
- Automatic day/night switching
Intelligent Video Analytics
Built-in motion detection, tampering alarm, and privacy masking capabilities provide proactive security monitoring. The camera supports region of interest focusing and highlight compensation for challenging lighting scenarios.
- Motion detection
- Tampering alarm
- Privacy masking zones
Deployment / Use Cases
The DS-2CD6D82G0-IHS 2.8MM is designed for outdoor surveillance applications requiring wide-area coverage and high-resolution imaging. Its rugged construction and environmental ratings make it suitable for perimeter security, parking lots, and building exteriors where weather resistance is essential.
This camera integrates effectively with existing security systems through standard network protocols. The junction box and pendant mount options provide flexible installation choices for different architectural requirements. Local storage via memory card offers recording redundancy alongside network video recorder integration.
Perimeter Security
Ideal for monitoring property boundaries with its wide 124° diagonal field of view and 10-meter night vision capability. The IK10 impact rating provides vandal resistance for exposed installations.
Commercial Outdoor Monitoring
Suited for retail parking, loading docks, and building entrances where detailed identification and 24/7 operation are required. The white finish blends with architectural elements while maintaining visibility.
Physical Profile
The camera features a white housing designed for outdoor durability with IP67 protection against dust and water ingress. Weighing approximately 1.70 pounds, it supports both junction box and pendant mounting configurations for installation flexibility. The compact design accommodates the dual-sensor panoramic imaging system within a protective enclosure.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.70 lb (770 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.70 lb (770 g)
- Length
- 2.8 mm (0.11")
Highlights
- 8-megapixel resolution for detailed surveillance imagery
- 10-meter infrared night vision with automatic switching
- IP67 weatherproof rating for outdoor deployment
- Dual-sensor panoramic design with 124° diagonal field of view
- Supports H.265 and H.264 video compression formats
- Wide dynamic range and 3D digital noise reduction
- Motion detection and tampering alarm capabilities
- Operates from -40°F to 140°F temperature range
- Local storage support via memory card
- IK10 impact resistance for vandal protection
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CD6D82G0-IHS 2.8MM |
| Brand Name | Hikvision |
| Product Line | Panoramic |
| Product Model | DS-2CD6D82G0-IHS |
| Product Name | Multi-Sensor Dual-Directional PanoVu Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 32.81 ft (10 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | horizontal FOV 103°, vertical FOV 53°, diagonal FOV 124° |
| Effective Camera Resolution | 8 Megapixel |
| Number of Sensors | 2 |
| Video | |
| Video Formats | H.265,H.264,MJPEG,H.265+,H.264+,H.264 BP,H.264 (MP),H.264 HP,H.265 (MP) |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 24 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/2 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Junction Box Mount,Pendant Mount |
| Weight (Approximate) | 1.70 lb (770 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | SD Card Local Storage,Wide Dynamic Range,Day/Night,Removable IR Cut-off Filter,Region of Interest,Audio Compression,Password Protection,HTTPS Encryption,Alarm Triggering,Highlight Compensation (HLC),Defog,Electronic Image Stabilization,3D Digital Noise Reduction,Heater,Motion Detection,Tampering Alarm,Privacy Masking |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
User Manual
FAQ
What is the maximum video resolution of this Hikvision camera?
The DS-2CD6D82G0-IHS 2.8MM captures video at up to 3840 x 2160 resolution, which is 8-megapixel quality. This 4K UHD resolution provides exceptional detail for identification purposes in surveillance applications. The camera maintains this resolution while supporting efficient compression formats like H.265+ to optimize bandwidth and storage usage.
How far does the night vision reach on this outdoor camera?
This camera features infrared night vision that extends to 32.81 feet (10 meters). The infrared illumination works with the camera's CMOS sensors to provide clear monochrome imagery in complete darkness. Automatic switching between day and night modes ensures optimal performance without manual intervention as lighting conditions change.
What environmental protection does this camera offer for outdoor installation?
The camera carries an IP67 rating, meaning it's completely protected against dust ingress and can withstand temporary immersion in water up to 1 meter deep. Additionally, it features an IK10 impact resistance rating for vandal protection. The operating temperature range spans from -40°F to 140°F, with humidity tolerance up to 95%, making it suitable for harsh outdoor environments.
What type of lens does this panoramic camera use?
This model utilizes a fixed 2.8mm lens with an M12 mount, providing a wide field of view ideal for panoramic coverage. The lens offers a maximum aperture of f/2 for improved low-light performance. With horizontal coverage of 103°, vertical coverage of 53°, and diagonal coverage of 124°, the dual-sensor design captures comprehensive area monitoring.
What video compression formats does this network camera support?
The camera supports multiple modern compression formats including H.265, H.264, MJPEG, and their enhanced variants like H.265+ and H.264+. These formats balance video quality with efficient bandwidth and storage usage. The camera can automatically select the optimal compression method based on network conditions and recording requirements.
What mounting options are available for this outdoor surveillance camera?
This camera supports both junction box mounting and pendant mounting configurations, providing flexibility for different installation scenarios. The approximately 1.70-pound weight makes it manageable for various mounting positions. The white finish helps the camera blend with architectural elements while maintaining a professional surveillance presence.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
