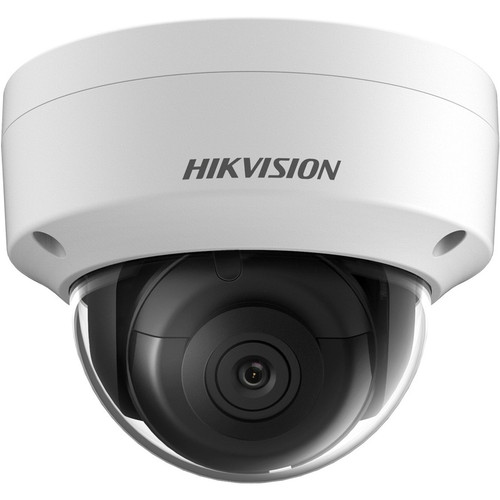

Hikvision DS-2CD2145FWD-IS 2. 8MM 4MP Outdoor Dome Network Camera - 2688 x 1520 Resolution - 30m Night Vision - Fixed Lens
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera features a CMOS image sensor that provides 4-megapixel resolution with color support. The fixed 2.8mm lens offers a consistent field of view, optimized for general surveillance scenarios without requiring manual adjustments.
Video compression includes H.264+, H.264, H.265, H.265+, and MJPEG formats, balancing quality and bandwidth efficiency. The camera supports HD recording and remote management via its wired RJ-45 connection, enabling integration into networked security systems.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The DS-2CD2145FWD-IS 2.8MM combines high-resolution imaging with practical deployment features. Its 4-megapixel sensor captures detailed footage, while the 30-meter night vision extends monitoring capability into low-light conditions.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Enhanced Image Clarity, Versatile Installation.
Enhanced Image Clarity
4MP resolution provides clearer details compared to lower-resolution cameras, improving identification accuracy in surveillance footage.
- 2688 x 1520 resolution
- Color imaging in daylight
- CMOS efficiency
Versatile Installation
Multiple mount types allow flexible placement in various outdoor settings, from building exteriors to poles and corners.
- Five mounting options
- Outdoor durability
- Dome design for discreet monitoring
Deployment / Use Cases
This camera is ideal for outdoor surveillance where clear video and reliable performance are critical. Its fixed lens and dome design make it a straightforward choice for consistent monitoring without frequent adjustments.
Common applications include retail storefronts, warehouse perimeters, school campuses, and residential complexes. The 30-meter night vision supports security during overnight hours, while the wired connectivity ensures stable network integration for continuous recording.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Perimeter Security
Monitor fences, gates, and property boundaries with the outdoor-rated construction and long-range night vision.
Entry Point Surveillance
Install above doors or driveways to capture detailed footage of individuals and vehicles entering secured areas.
Physical Profile
The dome camera measures 3.24 inches in height and 4.37 inches in diameter, with a weight of approximately 500 grams. Its compact size facilitates discreet installation while the durable housing protects internal components from environmental factors.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.24" (82.40 mm), 500 g. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 3.24" (82.40 mm)
- Weight
- 500 g
- Length
- 2.8 mm
Highlights
- 4-megapixel resolution for detailed 2688 x 1520 video
- 30-meter night vision range for low-light monitoring
- Fixed 2.8mm lens with consistent field of view
- CMOS sensor for efficient power use and HD video
- Multiple mounting options: wall, pendant, conduit, corner, pole
- Outdoor-rated construction for weather resistance
- Wired RJ-45 connectivity with remote management
- Supports H.264+, H.264, H.265, H.265+, and MJPEG video formats
- HD recording capability for clear footage
- 36-month limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CD2145FWD-IS 2.8MM |
| Brand Name | Hikvision |
| Product Line | Performance |
| Product Model | DS-2CD2145FWD-IS |
| Product Name | 4 MP Outdoor IR Fixed Network Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 98.43 ft (30 m) |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.264+,H.264,H.265,H.265+,MJPEG |
| Maximum Video Resolution | 2688 x 1520 |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mount Type | Wall Mount,Pendant Mount,Conduit Mount,Corner Mount,Pole Mount |
| Form Factor | Dome |
| Height | 3.24" (82.40 mm) |
| Diameter | 4.37" (111 mm) |
| Weight (Approximate) | 500 g |
| Miscellaneous | |
| Indoor/Outdoor | Outdoor |
| Warranty | |
| Limited Warranty | 36 Month |
User Manual
FAQ
What is the resolution of this Hikvision camera?
The camera provides 4-megapixel resolution, which translates to a maximum video resolution of 2688 x 1520. This higher resolution offers clearer and more detailed images compared to standard HD cameras, improving the ability to identify subjects in surveillance footage.
How far does the night vision reach?
The night vision distance is 98.43 feet (30 meters). This range allows the camera to capture usable video in low-light or dark conditions, extending monitoring capability during nighttime hours for outdoor security applications.
What type of lens does this camera have?
It features a fixed 2.8mm lens. A fixed lens maintains a consistent field of view without adjustment, making it suitable for general surveillance where the viewing area does not require zoom or focus changes after installation.
Can this camera be used outdoors?
Yes, this camera is rated for outdoor use. Its construction is designed to withstand environmental factors like rain and temperature variations, making it appropriate for perimeter security, parking areas, and other external monitoring locations.
What mounting options are available?
The camera supports wall mount, pendant mount, conduit mount, corner mount, and pole mount installations. This versatility allows flexible placement in various outdoor settings to achieve optimal viewing angles and coverage.
What video formats does the camera support?
It supports H.264+, H.264, H.265, H.265+, and MJPEG video formats. These compression options help balance video quality with bandwidth and storage efficiency, allowing integration into different recording systems and network environments.
What connectivity or interface options are available?
Connectivity options include Wired, helping the product integrate into common office or home setups.
