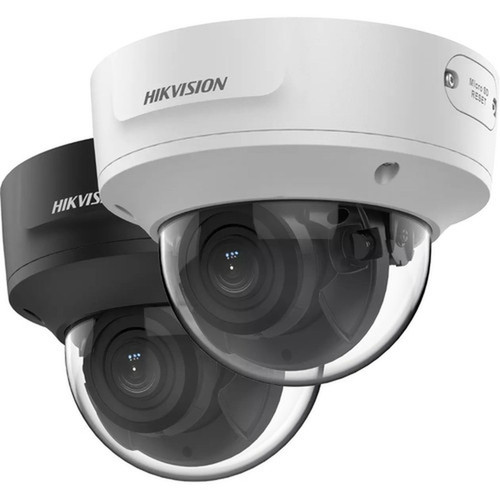

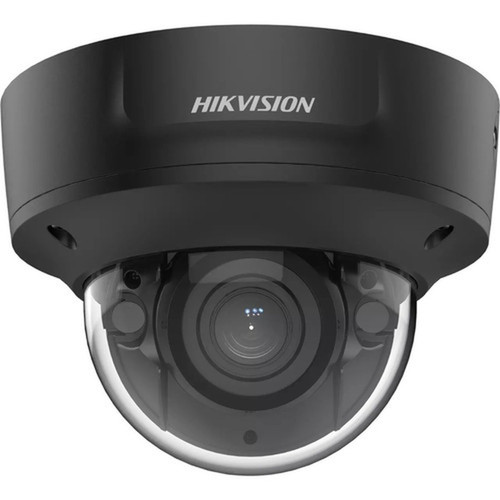

Hikvision DS-2CD2743G2-IZSB Pro 4MP Outdoor Dome Camera - 40m IR Night Vision - Varifocal Lens - IP67 IK10 - PoE/DC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera captures video at 4-megapixel resolution (2688 x 1520) with a maximum frame rate of 30 fps, ensuring smooth, detailed surveillance footage. It utilizes a CMOS image sensor that balances power efficiency with high-definition video quality, supporting modern compression formats like H.265+ and H.264+ for optimized bandwidth and storage usage.
The motorized varifocal lens offers a focal length range from 2.8 mm to 12 mm, providing 4x optical zoom and adjustable field of view. This flexibility allows precise framing during installation without physical lens changes. The lens includes a maximum aperture of f/1.6 for improved low-light performance, and exposure control spans from 1/100000 second to 1/3 second to handle varying lighting conditions.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This camera delivers practical advantages for surveillance professionals through its combination of imaging clarity, environmental resilience, and intelligent features. The 4-megapixel resolution provides finer detail than standard 1080p cameras, enhancing identification capabilities in both wide-area and zoomed views.
Enhanced Low-Light Performance
Infrared night vision extends monitoring to 40 meters in total darkness, while features like 3D Digital Noise Reduction and Back Light Compensation maintain image quality in challenging lighting.
- 40 m IR illumination
- 3D DNR for clear night video
- BLC for high-contrast scenes
Robust Outdoor Design
Rated IP67 for dust and water resistance and IK10 for impact protection, the dome housing withstands harsh weather and physical tampering, ensuring continuous operation.
- IP67 sealed against elements
- IK10 vandal resistance
- Wide temperature range (-30°C to 60°C)
Smart Detection & Storage
Built-in AcuSense technology includes human detection, face detection, and motion detection to reduce false alarms. Local storage via SD card offers backup recording without network dependency.
- Human and face detection
- Motion-triggered alerts
- SD card slot for local storage
Deployment / Use Cases
This camera is suited for perimeter security, entry points, parking lots, and other outdoor areas where reliable, high-resolution monitoring is required. Its varifocal lens allows adjustment during installation to cover broad areas or focus on specific zones, making it versatile for different site layouts.
Common applications include retail storefronts, school campuses, warehouse exteriors, and corporate building perimeters. The PoE support enables single-cable installation for both power and data, reducing wiring complexity. Integration with Hikvision NVRs and VMS platforms supports centralized management and recording scalability.
Perimeter & Entry Surveillance
Monitor gates, fences, and doors with clear 4MP video and 40m night vision. The dome design deters tampering while providing discreet monitoring.
- Wide to narrow field of view adjustment
- Tamper-resistant dome housing
- Continuous recording in all weather
Parking & Lot Security
Cover vehicle areas with detailed imaging for license plate recognition and incident documentation. The camera's environmental ratings ensure performance in open settings.
- High resolution for detail capture
- Dust and water resistance
- Low-light optimization
Physical Profile
The camera features a compact dome form factor with a diameter of 6.04 inches (153.30 mm) and a weight of 1.94 pounds (880 g). The black finish blends with building exteriors, and the dome shape provides a low-profile appearance. Mounting options include standard ceiling or wall mounts, with the housing designed for easy adjustment during installation. The robust construction meets IK10 impact resistance, protecting against deliberate damage in public or high-traffic areas.
- Weight
- 1.94 lb (880 g)
- Length
- 2.8 mm (0.11")
Highlights
- 4-megapixel resolution (2688 x 1520) for detailed surveillance video
- 40-meter infrared night vision for 24/7 monitoring in darkness
- Varifocal lens with 2.8-12mm focal length and 4x optical zoom
- IP67 and IK10 ratings for water, dust, and vandal resistance
- Power over Ethernet (PoE) and DC 12V power options
- H.265+ and H.264+ video compression for efficient bandwidth use
- AcuSense features: human detection, face detection, motion detection
- Local storage support via SD card slot
- Wide operating temperature range: -30°C to 60°C
- Remote management capability for centralized control
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CD2743G2-IZSB |
| Brand Name | Hikvision |
| Product Line | Pro |
| Product Model | DS-2CD2743G2-IZS |
| Product Name | 4 MP AcuSense Motorized Varifocal Dome Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 131.23 ft (40 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | horizontal FOV 95.8° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.6° to 33.4° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.265+,H.265,H.264+,H.264,MJPEG,H.264M,H.264H,H.264B,H.265M |
| Maximum Video Resolution | 2688 x 1520 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 2.8 mm (0.11") |
| Maximum Focal Length | 12 mm (0.47") |
| Lens Included | Yes |
| Lens Mount Type | Φ14 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 4x |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1/3 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Dome |
| Durability | Water Resistant,Dust Resistant,Vandal Proof |
| Diameter | 6.04" (153.30 mm) |
| Weight (Approximate) | 1.94 lb (880 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Back Light Compensation (BLC),3D Digital Noise Reduction,Day/Night,Face Detection,Motion Detection,Human Detection,Password Protection,Privacy Masking,HTTPS Encryption,Ingress Protection,Region of Interest,SD Card Local Storage,Built-in Card Reader,Audio Detection,Audio Compression,Highlight Compensation (HLC) |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What is the resolution and video quality of this camera?
The camera provides 4-megapixel resolution at 2688 x 1520 pixels, delivering higher detail than standard 1080p cameras. It records at up to 30 frames per second for smooth video and supports advanced compression formats like H.265+ and H.264+ to optimize bandwidth and storage without sacrificing clarity.
How far does the night vision reach, and what type is it?
Night vision extends to 40 meters (approximately 131 feet) using infrared illumination. This allows the camera to capture clear monochrome video in complete darkness, ensuring continuous surveillance around the clock regardless of lighting conditions.
Can the lens be adjusted after installation?
Yes, the motorized varifocal lens allows remote adjustment of the focal length from 2.8 mm to 12 mm, offering 4x optical zoom. This enables you to fine-tune the field of view during or after installation without physically accessing the camera, providing flexibility for covering wide areas or zooming in on specific points.
Is this camera suitable for outdoor use in harsh weather?
Absolutely. With an IP67 rating, the camera is sealed against dust and water ingress, and it operates in temperatures from -30°C to 60°C. The IK10 impact resistance also protects against vandalism, making it durable for outdoor environments like parking lots, building perimeters, and industrial sites.
What power options are available for this camera?
The camera supports both 12V DC power and Power over Ethernet (PoE). PoE allows a single Ethernet cable to provide both data connectivity and power, simplifying installation and reducing wiring costs, especially in networked surveillance systems.
Does this camera support local storage, and what features enhance security?
Yes, it includes a built-in SD card slot for local storage, providing backup recording independent of network recorders. Security features include password protection, HTTPS encryption, privacy masking, and intelligent detection like human and face recognition to reduce false alarms and focus on relevant events.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
