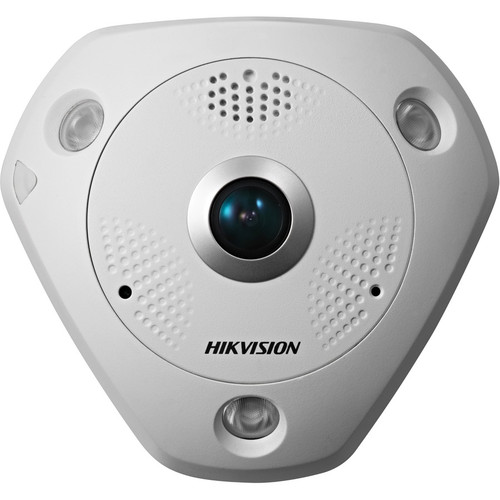

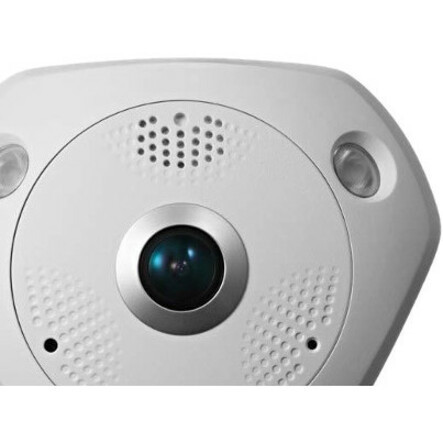

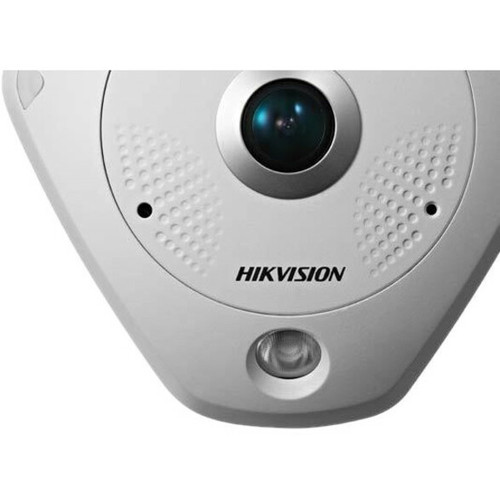

Hikvision DS-2CD63C5G0E-IVS 2MM Smart 12MP Outdoor Fisheye Network Camera - Infrared Night Vision 50ft - IP67 - PoE/DC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera utilizes a fixed 2mm M12-mount lens with f/2.8 maximum aperture, providing a wide-angle perspective ideal for fisheye applications. The camera records video at up to 30 frames per second in multiple formats including H.265+, H.265, H.264+, H.264, and MJPEG, offering efficient compression options for different storage and bandwidth requirements.
Advanced imaging features include auto gain control, automatic white balance, back light compensation, day/night operation, defog functionality, and motion detection. The camera supports local storage via memory card and enables remote management through its wired network connection. Exposure control ranges from 1/100,000 second to 1 second, accommodating various lighting conditions.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The DS-2CD63C5G0E-IVS 2MM combines high-resolution imaging with versatile mounting options and robust environmental protection. Its fisheye design reduces the need for multiple cameras in many surveillance applications, while the comprehensive feature set ensures reliable performance in demanding outdoor conditions.
Comprehensive Mounting Flexibility
Supports ceiling, wall, table, junction box, and pendant mounting configurations with different field of view options for each installation type.
- 180° horizontal field of view (wall mount)
- 360° horizontal field of view (ceiling mount)
- 360° horizontal field of view (table mount)
Advanced Video Processing
Features multiple video compression formats including efficient H.265+ and H.264+ codecs that reduce bandwidth and storage requirements while maintaining image quality.
- H.265+, H.265, H.264+, H.264 support
- MJPEG compatibility
- Efficient bandwidth utilization
Deployment / Use Cases
This fisheye camera is designed for comprehensive area monitoring in outdoor environments where wide coverage and high-resolution detail are required. The 12-megapixel resolution provides sufficient detail for identifying subjects and objects across the entire field of view, making it suitable for perimeter security, parking lot surveillance, and large outdoor facility monitoring.
The camera's IP67 rating and extended temperature range (-40°F to 140°F) enable deployment in challenging weather conditions, from freezing winters to hot summers. Multiple mounting options allow installation in various architectural settings, while PoE support simplifies deployment by combining power and data over a single Ethernet cable. The vandal-resistant construction makes it appropriate for locations where tampering or physical damage may be a concern.
Outdoor Perimeter Security
Monitor building exteriors, fences, and property boundaries with the camera's weatherproof design and infrared night vision capabilities.
Large Area Surveillance
Cover expansive spaces like parking lots, courtyards, or warehouse yards with the fisheye lens and 360° field of view options.
Physical Profile
The camera features a compact fisheye form factor measuring 2.20 inches (55.88 mm) in height and 6.60 inches (167.64 mm) in diameter. This design supports multiple mounting orientations while maintaining a discreet profile. The durable construction includes weather-resistant and vandal-resistant materials rated IP67 and IK8/IK10 respectively, ensuring physical protection against environmental elements and intentional damage.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.20" (55.88 mm), 3.09 lb (1400 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 2.20" (55.88 mm)
- Weight
- 3.09 lb (1400 g)
- Length
- 2 mm (0.08")
Highlights
- 12-megapixel CMOS sensor for high-resolution imaging
- 4000x3000 maximum video resolution at 30 fps
- Infrared night vision up to 50 feet (15.24 meters)
- IP67 weatherproof and IK8/IK10 vandal-resistant construction
- Power over Ethernet (PoE) and 12V DC power options
- Multiple mounting types: ceiling, wall, table, junction box, pendant
- Fisheye lens with up to 360° horizontal field of view
- Supports H.265+, H.265, H.264+, H.264 video formats
- Local storage via memory card
- Remote management capability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CD63C5G0E-IVS 2MM |
| Brand Name | Hikvision |
| Product Line | Smart |
| Product Model | DS-2CD63C5G0E-IVS |
| Product Name | 12 MP Network Fisheye Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 50 ft (15.24 m) |
| Night Vision Type | Infrared |
| Number of IR LEDs | 3 |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | horizontal field of view: 180° (wall mount), 360° (ceiling mount), 360° (table mount) |
| Effective Camera Resolution | 12 Megapixel |
| Video | |
| Video Formats | H.265+,H.265,H.264+,H.264,MJPEG,H.264 HP,H.264 (MP),H.264 BP,H.265 (MP) |
| Maximum Video Resolution | 4000 x 3000 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2 mm (0.08") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/2.8 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Mount Type | Ceiling Mount,Wall Mount,Table Mount,Junction Box Mount,Pendant Mount |
| Form Factor | Fisheye |
| Durability | Weather Resistant,Vandal Resistant |
| Height | 2.20" (55.88 mm) |
| Diameter | 6.60" (167.64 mm) |
| Weight (Approximate) | 3.09 lb (1400 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Auto Gain Control,Automatic White Balance,Back Light Compensation (BLC),Day/Night,Defog,SD Card Local Storage,Motion Detection |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK8,IK10 |
| Ingress Protection Rating | IP67 |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 36 Year |
User Manual
FAQ
What is the maximum resolution of this Hikvision fisheye camera?
The DS-2CD63C5G0E-IVS 2MM captures video at up to 4000x3000 resolution, which corresponds to its 12-megapixel CMOS sensor. This high resolution provides detailed imagery suitable for identifying subjects and objects across the camera's wide field of view, making it effective for surveillance applications requiring clear visual information.
How far does the night vision extend on this outdoor camera?
The camera's infrared night vision illuminates objects up to 50 feet (15.24 meters) away using three IR LEDs. This infrared illumination works in complete darkness without visible light, providing reliable nighttime monitoring for outdoor security applications where lighting may be limited or unavailable.
What mounting options are available for this fisheye camera?
This camera supports five mounting configurations: ceiling mount, wall mount, table mount, junction box mount, and pendant mount. Each mounting type offers different field of view characteristics, with wall mounting providing 180° horizontal coverage while ceiling and table mounting deliver 360° horizontal coverage for complete area monitoring.
What power options does this network camera support?
The camera accepts both Power over Ethernet (PoE) and 12V DC power inputs. PoE allows installation using a single Ethernet cable that carries both data and power, simplifying deployment in locations without convenient power outlets. The 12V DC option provides flexibility for installations where PoE switches or injectors are not available.
What environmental protection ratings does this outdoor camera have?
This camera carries an IP67 ingress protection rating, making it dust-tight and protected against temporary immersion in water. It also has IK8 and IK10 impact protection ratings, providing resistance against vandalism and physical impacts. These ratings ensure reliable operation in harsh outdoor environments and locations prone to tampering.
What video formats does this camera support for recording?
The camera records in multiple video formats including H.265+, H.265, H.264+, H.264, MJPEG, H.264 HP, H.264 (MP), H.264 BP, and H.265 (MP). The H.265+ and H.264+ formats offer advanced compression that reduces bandwidth and storage requirements while maintaining image quality, making them efficient choices for surveillance systems with limited resources.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
