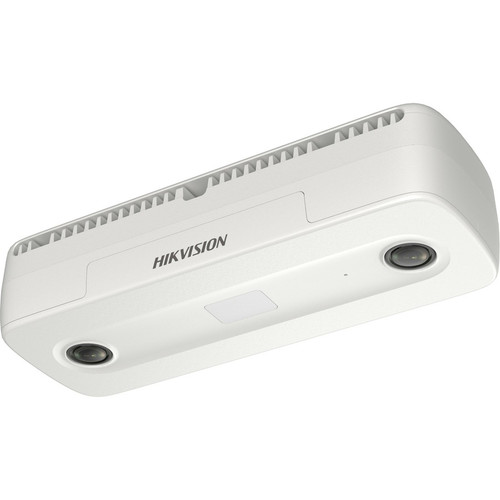

Hikvision DS-2CD6825G0/C-IS Smart Indoor Dual-Lens People Counting Density Camera - Full HD 1080p - Infrared Night Vision 20 ft - CMOS Sensor - Wired
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera features a fixed 2 mm lens with an M12-mount, providing a wide 112° diagonal field of view that covers expansive indoor areas. The lens includes a removable IR cut-off filter for accurate color reproduction during daytime and seamless transition to infrared night vision. Exposure control ranges from 1/100000 second to 1/25 second, allowing the camera to adapt to varying lighting conditions and reduce motion blur.
Video encoding supports modern standards like H.265+ and H.264+, which enhance compression efficiency for longer recording retention on memory card storage. The camera integrates a suite of imaging technologies including Wide Dynamic Range (WDR), 3D Digital Noise Reduction, and defog to maintain video quality in challenging environments. Connectivity is wired via RJ-45, ensuring stable network performance, and remote management capabilities allow for centralized configuration and monitoring.
Key Product Advantages
The DS-2CD6825G0/C-IS combines advanced people counting functionality with robust surveillance features, offering a dual-purpose solution for security and business intelligence. Its infrared night vision extends up to 20 feet, ensuring reliable monitoring in low-light conditions, while the wide field of view minimizes blind spots in indoor spaces.
Dual-Lens People Counting
The dual-lens design enables accurate people counting and density estimation, providing valuable data for occupancy management, queue monitoring, and space optimization in commercial settings.
- Supports occupancy analytics
- Ideal for retail and office environments
- Enhances operational efficiency
Enhanced Video Quality
With features like Wide Dynamic Range, Highlight Compensation, and 3D Digital Noise Reduction, the camera delivers clear video even in high-contrast or noisy scenes, ensuring critical details are captured.
- WDR balances bright and dark areas
- Reduces visual noise for sharper images
- Maintains clarity in varying lighting
Secure and Manageable
Built-in security features such as password protection, HTTPS encryption, and tampering alarm help protect your surveillance system from unauthorized access and physical interference.
- HTTPS encryption for data security
- Tampering alarm alerts to disruptions
- Remote management for easy control
Deployment / Use Cases
This camera is tailored for indoor environments where both security monitoring and people analytics are required. Its people counting capabilities make it particularly effective in retail stores for tracking customer traffic patterns, optimizing staff allocation, and analyzing peak hours. In corporate offices, it can monitor occupancy in meeting rooms, lobbies, or workspaces to support space management and social distancing compliance.
For general surveillance, the camera's Full HD resolution and night vision ensure reliable security coverage in warehouses, schools, hospitals, and small businesses. The wired network connection provides a stable link to NVRs or cloud platforms, while the compact size allows for discreet ceiling or wall mounting. With an operating temperature range of -22°F to 113°F, it performs consistently in climate-controlled indoor settings.
Retail Traffic Analysis
Deploy in retail environments to count customers, measure dwell times, and generate heat maps for layout optimization and sales strategy.
- Tracks customer entry and exit
- Provides data for marketing insights
- Helps manage crowd density
Office Occupancy Monitoring
Use in corporate offices to monitor meeting room usage, desk occupancy, and common areas for efficient space utilization and safety compliance.
- Supports hybrid work models
- Enables real-time space availability
- Aids in facility planning
Physical Profile
The camera measures 6.60" wide, 2.40" high, and 1.40" deep, with a weight of approximately 1 pound, making it lightweight and easy to install in various indoor locations. The white finish offers a neutral appearance that blends with most ceilings and walls. Its compact dimensions support flexible mounting options, and the built-in IR LEDs are discreetly integrated for effective night vision without protruding hardware.
- Width
- 6.60" (167.64 mm)
- Depth
- 1.40" (35.56 mm)
- Height
- 2.40" (60.96 mm)
- Weight
- 1 lb (453.59 g)
- Length
- 2 mm (0.08")
Highlights
- Full HD 1080p resolution at 30 fps for clear surveillance video
- Infrared night vision up to 20 feet for reliable low-light monitoring
- Dual-lens design enables accurate people counting and density estimation
- Wide 112° diagonal field of view covers expansive indoor areas
- CMOS sensor delivers high-quality video with efficient power use
- Supports H.265, H.264, and MJPEG video compression for bandwidth optimization
- Wired connectivity via RJ-45 ensures stable network performance
- Includes security features like password protection and HTTPS encryption
- Built-in microphone for audio capture alongside video
- Compact white housing for discreet indoor installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CD6825G0/C-IS |
| Brand Name | Hikvision |
| Product Line | Smart |
| Product Model | DS-2CD6825G0/C-IS |
| Product Name | Indoor Dual-Lens People Counting Density Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 20 ft (6.10 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | Horizontal FOV: 104.5°, vertical FOV: 70.5°, diagonal FOV: 112° |
| Video | |
| Video Formats | H.265,H.264,H.265+,H.264+,MJPEG,H.264 BP,H.264 (MP),H.264 HP,H.265 (MP) |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2 mm (0.08") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/2.25 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1/25 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Height | 2.40" (60.96 mm) |
| Width | 6.60" (167.64 mm) |
| Depth | 1.40" (35.56 mm) |
| Weight (Approximate) | 1 lb (453.59 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Motion Detection,Tampering Alarm,Day/Night,Removable IR Cut-off Filter,Wide Dynamic Range,Built-in IR LED,Audio Compression,Highlight Compensation (HLC),Back Light Compensation (BLC),3D Digital Noise Reduction,Defog,Password Protection,HTTPS Encryption,Built-in Microphone |
| Indoor/Outdoor | Indoor |
| Warranty | |
| Limited Warranty | 36 Month |
User Manual
FAQ
What is the maximum video resolution of this Hikvision camera?
The Hikvision DS-2CD6825G0/C-IS captures video at a maximum resolution of 1920 x 1080, which is Full HD 1080p. This resolution provides clear, detailed footage suitable for identifying individuals and objects in indoor surveillance applications, and it operates at up to 30 frames per second for smooth real-time monitoring.
How far does the night vision reach on this camera?
This camera features infrared night vision with a range of up to 20 feet (6.10 meters). The built-in IR LEDs enable monitoring in complete darkness, ensuring reliable surveillance around the clock, and the removable IR cut-off filter allows for accurate color reproduction during daytime.
What is the field of view for this indoor camera?
The camera offers a wide field of view with a diagonal measurement of 112°, horizontal of 104.5°, and vertical of 70.5°. This expansive coverage minimizes blind spots in indoor spaces like retail stores or offices, making it effective for monitoring large areas with a single unit.
Does this camera support people counting functionality?
Yes, as a dual-lens people counting density camera, it is specifically designed for accurate people counting and density estimation. This functionality is ideal for applications such as retail traffic analysis, occupancy monitoring in offices, and crowd management in facilities where tracking foot traffic is important.
What type of connectivity does this network camera use?
This camera uses wired connectivity technology with an RJ-45 network port, providing a stable and reliable connection to your network for video streaming and remote management. It requires a 12 V DC power input, and it supports remote configuration and monitoring over the network.
What video compression formats are supported by this camera?
The camera supports multiple video compression formats including H.265, H.264, H.265+, H.264+, and MJPEG. These formats help optimize bandwidth usage and storage efficiency, with advanced options like H.265+ offering improved compression for longer recording times on memory card storage.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
