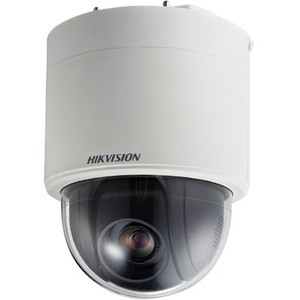

Hikvision DS-2AE5232T-A3 Turbo HD 2MP Indoor PTZ Speed Dome Camera - 32x Optical Zoom - 1920 x 1080 Full HD - Varifocal 4. 8-120mm Lens
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera features a 2-megapixel CMOS image sensor that captures color video in various lighting conditions. The varifocal lens offers a focal length range from 4.8 mm to 120 mm, providing an optical zoom of 32x for detailed close-ups and wide-area coverage. The field of view adjusts from 55.6° horizontal at the widest setting to 2.04° at maximum telephoto, allowing precise framing of surveillance areas.
Video output is compatible with NTSC signal format and analog formats including TVI, AHD, CVI, and CVBS, ensuring integration with existing surveillance infrastructure. Exposure control ranges from a shortest shutter speed of 1/10000 second to a longest of 1/1 second, supporting clear imaging in dynamic lighting environments.
This section brings together practical product details such as HD Recording, Recording Formats, Image Sensor Type, Color Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The DS-2AE5232T-A3 delivers a balance of high-resolution imaging, flexible lens adjustment, and durable construction for indoor surveillance. Its 32x optical zoom and varifocal lens enable operators to monitor both broad spaces and specific details without sacrificing image clarity, while the dome form factor provides a discreet and tamper-resistant installation.
Enhanced Image Processing
Features like automatic white balance, auto gain control, 3D digital noise reduction, and wide dynamic range improve video quality in challenging lighting, reducing noise and maintaining color accuracy across different scenes.
- Automatic White Balance
- 3D Digital Noise Reduction
- Wide Dynamic Range
Reliable Operation
With an operating temperature range of 14°F to 122°F and up to 90% humidity tolerance, this camera maintains performance in varied indoor environments, backed by a 36-month limited warranty for long-term peace of mind.
- Wide Temperature Range
- 90% Humidity Tolerance
- 36-Month Warranty
Deployment / Use Cases
This camera is ideal for indoor surveillance applications where adjustable zoom and high-definition video are critical. Its dome design and PTZ capabilities make it suitable for monitoring retail stores, office lobbies, warehouses, and educational facilities, providing operators with the flexibility to pan, tilt, and zoom to cover large areas or focus on specific points of interest.
The wired connectivity and 24 V AC power input ensure stable operation in fixed installations, while compatibility with multiple analog video formats allows seamless integration into both new and legacy surveillance systems. TAA compliance supports use in government and institutional projects requiring adherence to trade agreements.
Retail Security
Monitor cash registers, entrances, and aisles with the 32x zoom to identify details like facial features or product interactions, enhancing loss prevention and customer safety.
- High Zoom for Detail
- Discreet Dome Housing
- Color Video Capture
Corporate Monitoring
Deploy in office buildings to oversee common areas, server rooms, or parking garages, leveraging the wide dynamic range to handle mixed lighting from windows and artificial sources.
- Indoor Environmental Tolerance
- Full HD Recording
- Analog Format Support
Physical Profile
The camera measures 9.57 inches in height and 6.14 inches in diameter, with an approximate weight of 6.61 pounds, providing a substantial yet manageable footprint for ceiling or wall mounting. The dome form factor offers a low-profile appearance that blends into indoor settings while protecting the lens and internal components from dust and tampering.
- Height
- 9.57" (243.08 mm)
- Weight
- 6.61 lb (2998.25 g)
- Length
- 4.8 mm (0.19")
Highlights
- 2-megapixel CMOS sensor for Full HD 1920x1080 video at 30 fps
- 32x optical zoom with varifocal lens from 4.8 mm to 120 mm focal length
- Dome form factor for discreet indoor surveillance installation
- Supports analog video formats: TVI, AHD, CVI, and CVBS
- Operating temperature range of 14°F to 122°F (-10°C to 50°C)
- Features include automatic white balance and 3D digital noise reduction
- 24 V AC power input for wired connectivity
- TAA compliant and backed by a 36-month limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2AE5232T-A3 |
| Brand Name | Hikvision |
| Product Line | Turbo HD |
| Product Model | DS-2AE5232T-A3 |
| Product Name | 2 MP 32× Indoor TurboHD PTZ Speed Dome |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | Horizontal field of view: 55.6° to 2.04° (wide to tele), vertical field of view: 32.4° to 1.14° (wide to tele), diagonal field of view: 63° to 2.34° (wide to tele) |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Video Signal Format | NTSC |
| Analog Video Signal Format | TVI,AHD,CVI,CVBS |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 4.8 mm (0.19") |
| Maximum Focal Length | 120 mm (4.72") |
| Lens Included | Yes |
| Minimum Aperture | f/4.4 |
| Maximum Aperture | f/1.2 |
| Optical Zoom | 32x |
| Exposure | |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1/1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | No |
| Power Description | |
| Input Voltage | 24 V AC |
| Physical Characteristics | |
| Form Factor | Dome |
| Height | 9.57" (243.08 mm) |
| Diameter | 6.14" (155.96 mm) |
| Weight (Approximate) | 6.61 lb (2998.25 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Automatic White Balance,Auto Gain Control,3D Digital Noise Reduction,Wide Dynamic Range |
| Indoor/Outdoor | Indoor |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 36 Month |
User Manual
FAQ
What is the resolution and video quality of this Hikvision camera?
The DS-2AE5232T-A3 offers a 2-megapixel effective resolution, capturing Full HD video at 1920x1080 with a maximum frame rate of 30 fps. This ensures clear, smooth footage suitable for identifying details in surveillance recordings, supported by a CMOS sensor that enhances HD video production with lower power consumption compared to CCD alternatives.
How does the optical zoom and lens flexibility work?
This camera features a varifocal lens with a 32x optical zoom, allowing the focal length to adjust from 4.8 mm for wide-angle views to 120 mm for telephoto close-ups. This range provides a horizontal field of view from 55.6° down to 2.04°, enabling operators to zoom in on specific areas without losing image clarity, ideal for monitoring both large spaces and fine details.
Is this camera suitable for indoor use only?
Yes, the DS-2AE5232T-A3 is rated for indoor use. It operates within a temperature range of 14°F to 122°F and tolerates up to 90% humidity, making it reliable for various indoor environments like offices, schools, or retail stores, but it is not designed for outdoor exposure to elements like rain or extreme weather.
What video signal formats does it support?
This camera supports NTSC video signal format and is compatible with analog formats including TVI, AHD, CVI, and CVBS. This compatibility allows integration into a wide range of surveillance systems, whether modern or legacy, ensuring flexible deployment without requiring complete infrastructure upgrades.
What are the power requirements and connectivity options?
The camera requires a 24 V AC input for power and uses wired connectivity technology. It does not support remote management, making it a straightforward, reliable choice for fixed installations where stable power and direct connections are prioritized over network-based control features.
What warranty and compliance features are included?
Hikvision provides a 36-month limited warranty for this model, covering defects in materials and workmanship. Additionally, the camera is TAA compliant, meeting Trade Agreements Act requirements, which is beneficial for government and institutional purchases that mandate adherence to these standards.
What display size or resolution is listed?
It features a display specification of 2 Megapixel, giving you clear visuals for work and media use.
