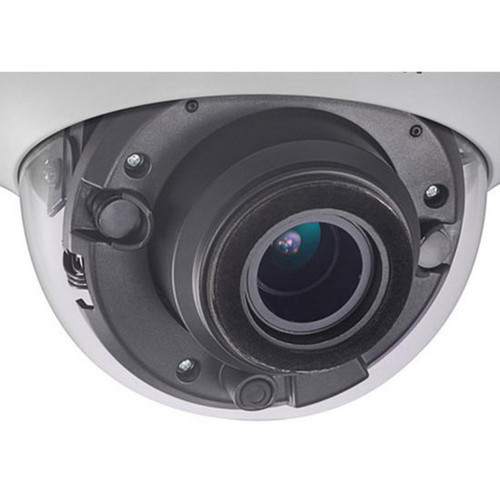

Hikvision DS-2CC52D9T-AITZE Turbo HD 2MP Indoor Dome Camera - 1080p Full HD - 131ft Night Vision - 4. 3x Zoom - Water & Dust Resistant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera captures video at 1920 x 1080 resolution with a maximum frame rate of 30 frames per second, ensuring smooth motion representation. The CMOS image sensor supports both monochrome and color imaging, automatically switching based on lighting conditions to maintain image quality throughout day and night cycles.
The integrated 4.3x optical zoom lens offers focal length adjustment from 2.8mm to 12mm, providing a field of view ranging from 32.1° to 98°. This flexibility allows security personnel to adjust the viewing area without physically repositioning the camera, optimizing coverage for specific monitoring needs.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The DS-2CC52D9T-AITZE delivers several advantages for surveillance applications, starting with its extended infrared night vision capability that provides clear monitoring up to 131 feet in complete darkness. This makes it suitable for low-light areas where traditional cameras might struggle to capture usable footage.
Enhanced Image Processing
Advanced features including defog, wide dynamic range, back light compensation, and highlight compensation work together to maintain image clarity in challenging lighting conditions with high contrast or backlighting.
- Defog reduces haze in humid conditions
- Wide Dynamic Range balances bright and dark areas
- Back Light Compensation prevents silhouette effects
Operational Reliability
With water and dust resistance plus a broad operating temperature range from -40°F to 140°F, this camera maintains performance in demanding indoor environments where environmental factors might affect less robust equipment.
- Water resistant construction
- Dust resistant design
- Wide temperature tolerance
Deployment / Use Cases
This indoor dome camera is particularly well-suited for retail environments where discreet monitoring of customer areas, cash registers, and inventory storage is required. The adjustable field of view and zoom capability allow security teams to focus on specific areas of interest without requiring multiple fixed cameras.
In office buildings and educational facilities, the camera supports monitoring of entryways, hallways, and common areas. The privacy masking feature enables administrators to block out specific areas within the camera's view to respect privacy in break rooms or other sensitive locations while maintaining security coverage elsewhere.
Retail Security
Monitor point-of-sale areas, inventory storage, and customer traffic with clear 1080p video that supports identification and incident documentation.
Institutional Monitoring
Provide coverage in schools, hospitals, and government buildings where both security and privacy considerations must be balanced through features like privacy masking.
Physical Profile
The dome enclosure measures 4.01 inches in height with a 5.35-inch diameter, presenting a compact footprint that integrates discreetly into various architectural environments. Weighing approximately 1.76 pounds, the camera maintains stability across all supported mounting configurations while remaining lightweight enough for straightforward installation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4.01" (101.90 mm), 1.76 lb (800 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 4.01" (101.90 mm)
- Weight
- 1.76 lb (800 g)
- Length
- 2.8 mm (0.11")
Highlights
- 2-megapixel CMOS sensor delivers 1920 x 1080 Full HD video
- Infrared night vision extends up to 131.23 feet (40 meters)
- 4.3x optical zoom with 2.8mm to 12mm focal length range
- Supports multiple mounting options: pendant, wall, ceiling, and pole
- Water and dust resistant construction for reliable indoor operation
- Wide operating temperature range from -40°F to 140°F (-40°C to 60°C)
- Advanced image features including defog and wide dynamic range
- Privacy masking capability for sensitive area protection
- Dual voltage support: 24V AC and 12V DC power input
- Compatible with PAL and NTSC video signal formats
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CC52D9T-AITZE |
| Brand Name | Hikvision |
| Product Line | Turbo HD |
| Product Model | DS-2CC52D9T-AITZE |
| Product Name | 2MP Ultra Low-Light PoC Dome Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 131.23 ft (40 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Monochrome,Color |
| Field of View | 32.1° to 98° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Video Signal Format | PAL,NTSC |
| Lens | |
| Lens Type | Zoom |
| Minimum Focal Length | 2.8 mm (0.11") |
| Maximum Focal Length | 12 mm (0.47") |
| Lens Included | Yes |
| Optical Zoom | 4.3x |
| Exposure | |
| Shortest Shutter Speed | 1/50000 Second |
| Longest Shutter Speed | 1/25 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Power Description | |
| Input Voltage | 24 V AC,12 V DC |
| Power Source Type | AC,DC |
| Physical Characteristics | |
| Mount Type | Pendant Mount,Wall Mount,Ceiling Mount,Pole Mount |
| Form Factor | Dome |
| Durability | Water Resistant,Dust Resistant |
| Height | 4.01" (101.90 mm) |
| Diameter | 5.35" (136 mm) |
| Weight (Approximate) | 1.76 lb (800 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Defog,Wide Dynamic Range,Back Light Compensation (BLC),Highlight Compensation (HLC),Privacy Masking,Day/Night,Auto Gain Control |
| Indoor/Outdoor | Indoor |
User Manual
FAQ
What is the maximum video resolution of this Hikvision camera?
The DS-2CC52D9T-AITZE captures video at 1920 x 1080 resolution, which is Full HD quality. This provides clear, detailed footage suitable for identifying individuals and objects in surveillance applications. The camera records at up to 30 frames per second for smooth motion representation.
How far does the night vision reach on this indoor dome camera?
The infrared night vision extends up to 131.23 feet (40 meters) in complete darkness. This substantial range allows for effective monitoring in low-light indoor areas such as warehouses, parking garages, or storage facilities where adequate lighting may not be available during nighttime hours.
What mounting options are supported by this surveillance camera?
This dome camera supports four mounting configurations: pendant, wall, ceiling, and pole mounting. This versatility enables installation in various indoor environments including retail stores, offices, schools, and industrial facilities. The mounting flexibility allows security teams to position the camera optimally for specific monitoring needs.
Is this camera suitable for environments with challenging lighting conditions?
Yes, the camera includes several advanced image processing features designed for challenging lighting. Wide dynamic range balances bright and dark areas in high-contrast scenes, while back light compensation prevents silhouette effects. Defog technology reduces haze in humid conditions, and highlight compensation manages overly bright light sources.
What power requirements does this Hikvision camera have?
The camera accepts both 24V AC and 12V DC power input, providing flexibility for integration with existing power systems. This dual-voltage support simplifies installation in various environments where different power standards might be present, from traditional AC wiring to DC power over coaxial cable systems.
Can this camera operate in extreme temperature conditions?
With an operating temperature range of -40°F to 140°F (-40°C to 60°C), this camera maintains performance in demanding indoor environments. This broad tolerance makes it suitable for locations without climate control, such as warehouses, loading docks, or storage facilities that experience significant temperature variations.
What display size or resolution is listed?
It features a display specification of 2 Megapixel, giving you clear visuals for work and media use.
