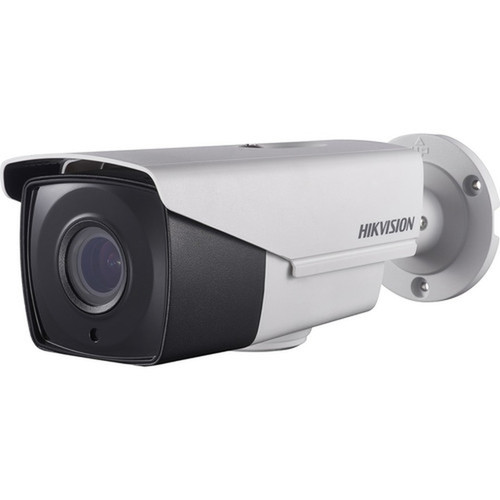

Hikvision DS-2CC12D9T-AIT3ZE Turbo HD 2MP Outdoor Bullet Camera - 1080p Full HD - 40m IR Night Vision - Weatherproof IP67 - Zoom Lens
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera captures video at a maximum resolution of 1920 x 1080 (2 Megapixel) using a CMOS image sensor, which offers efficient power consumption and cost-effectiveness compared to CCD alternatives. The video signal format is NTSC with CVBS analog output, compatible with standard surveillance systems. Exposure control ranges from a fast 1/50000 second shutter speed to 1/30 second, accommodating both bright and low-light scenarios.
The lens system features a Φ14 mount with a zoom mechanism providing 4.3x optical magnification. This allows operators to adjust the focal length precisely without sacrificing image quality. The camera supports both 12V DC and 24V AC power inputs, offering installation flexibility. Wired connectivity ensures stable data transmission without wireless interference.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This Hikvision bullet camera combines high-definition imaging with rugged outdoor durability, providing a cost-effective surveillance solution for businesses and institutions. Its extended infrared night vision range ensures continuous monitoring capability regardless of lighting conditions, while the optical zoom lens allows for detailed observation of specific areas without physical camera repositioning.
Enhanced Low-Light Performance
Infrared illumination reaches up to 40 meters, enabling clear monochrome video in total darkness. The camera automatically switches between color daytime mode and infrared night mode based on ambient light levels.
- 40m IR night vision distance
- Day/Night operation
- Automatic mode switching
Environmental Resilience
IP67 rating protects against dust ingress and temporary immersion in water, while the operating temperature range from -40°F to 140°F ensures functionality in extreme climates. The weather-resistant construction withstands rain, snow, and humidity up to 90%.
- IP67 certified
- -40°F to 140°F operating range
- Weather resistant housing
Deployment / Use Cases
This camera is designed for perimeter security, parking lot monitoring, building exteriors, and other outdoor areas requiring continuous surveillance. The conduit mount facilitates secure attachment to walls, poles, or eaves, while the bullet form factor provides a visible deterrent. Its compatibility with both DC and AC power sources simplifies integration with existing electrical infrastructure.
Ideal applications include retail storefronts, warehouse perimeters, school campuses, office building entrances, and residential property boundaries. The camera's privacy masking feature allows specific areas within the field of view to be obscured in recorded footage, addressing privacy concerns in sensitive locations. The wide dynamic range capability balances exposure in scenes with both bright and dark areas, such as entrances with backlighting.
Commercial Perimeter Security
Monitor building exteriors, loading docks, and parking areas with clear 1080p video. The 40m night vision covers large outdoor spaces after dark.
Institutional Campus Monitoring
Deploy along fence lines, entry gates, and walkways. The weatherproof construction ensures year-round operation in educational or government facilities.
Physical Profile
The camera measures 10.61" in length, 3.60" in width, and 3.50" in height (269.49mm x 91.44mm x 88.90mm), with a weight of approximately 1.54 pounds (700 grams). Its bullet-shaped housing is constructed from durable materials resistant to impact and environmental factors. The conduit mount provides a secure attachment point while allowing for cable management through the mounting base. The compact dimensions facilitate installation in spaces with limited clearance.
- Width
- 3.60" (91.44 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 1.54 lb (700 g)
- Length
- 2.8 mm (0.11")
What's in the Box
The package includes all necessary components for immediate deployment.
Package contents include 2MP Ultra Low-Light PoC Bullet Camera 24 VAC to 12 VDC Converter/Filter, 2MP Ultra Low-Light PoC Bullet Camera. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 2MP resolution delivers 1080p Full HD video at 30 fps
- Infrared night vision extends to 40 meters (131.23 feet)
- IP67 weatherproof rating for outdoor durability
- 4.3x optical zoom lens with adjustable focal length
- Wide Dynamic Range balances bright and dark areas
- Operates in temperatures from -40°F to 140°F (-40°C to 60°C)
- Supports both 12V DC and 24V AC power inputs
- Includes privacy masking and automatic white balance
- 3-year limited warranty for long-term reliability
- Conduit mount for secure outdoor installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CC12D9T-AIT3ZE |
| Brand Name | Hikvision |
| Product Line | Turbo HD |
| Product Model | DS-2CC12D9T-AIT3ZE |
| Product Name | 2MP Ultra Low-Light PoC Bullet Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 131.23 ft (40 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 32.1° to 98° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Video Signal Format | NTSC |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Zoom |
| Minimum Focal Length | 2.8 mm (0.11") |
| Maximum Focal Length | 12 mm (0.47") |
| Lens Included | Yes |
| Lens Mount Type | Φ14 |
| Optical Zoom | 4.3x |
| Exposure | |
| Shortest Shutter Speed | 1/50000 Second |
| Longest Shutter Speed | 1/30 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Power Description | |
| Input Voltage | 12 V DC,24 V AC |
| Power Source Type | DC,AC |
| Physical Characteristics | |
| Mount Type | Conduit Mount |
| Form Factor | Bullet |
| Durability | Weather Resistant |
| Height | 3.50" (88.90 mm) |
| Width | 3.60" (91.44 mm) |
| Length | 10.61" (269.49 mm) |
| Weight (Approximate) | 1.54 lb (700 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Day/Night,Wide Dynamic Range,Privacy Masking,Automatic White Balance |
| Indoor/Outdoor | Outdoor |
| Package Contents | 2MP Ultra Low-Light PoC Bullet Camera 24 VAC to 12 VDC Converter/Filter |
| Ingress Protection Rating | IP67 |
| Warranty | |
| Limited Warranty | 36 Month |
User Manual
FAQ
What is the maximum video resolution of this Hikvision camera?
The camera captures video at 2 Megapixel resolution, which equates to 1920 x 1080 pixels (Full HD). This provides clear, detailed footage suitable for identifying faces, license plates, and other important details in surveillance scenarios. The 30 frames per second frame rate ensures smooth video playback without motion blur.
How far does the night vision reach on this outdoor bullet camera?
The infrared night vision effectively illuminates up to 40 meters (approximately 131.23 feet). This allows the camera to monitor large outdoor areas in complete darkness. The camera automatically switches to infrared mode when ambient light drops below a certain threshold, ensuring continuous 24/7 surveillance capability.
Is this camera suitable for outdoor installation in harsh weather conditions?
Yes, this camera is designed for outdoor use with an IP67 ingress protection rating. This means it is dust-tight and can withstand temporary immersion in water up to 1 meter for 30 minutes. It operates reliably in temperatures ranging from -40°F to 140°F (-40°C to 60°C) and humidity up to 90%, making it suitable for extreme climates.
What type of lens does this surveillance camera include?
The camera comes with a zoom lens that provides 4.3x optical magnification. The focal length adjusts from 2.8mm (wide 98° field of view) to 12mm (narrower 32.1° field of view), allowing you to customize the viewing area without moving the camera physically. The lens uses a Φ14 mount and is included with the camera.
What power sources are compatible with this Hikvision bullet camera?
This camera accepts both 12V DC and 24V AC power inputs, providing flexibility for different installation scenarios. The included 24 VAC to 12 VDC converter/filter allows connection to standard AC power sources. This dual-voltage capability simplifies integration with existing security system power supplies or standalone power adapters.
What mounting options are available for this outdoor camera?
The camera features a conduit mount designed for secure attachment to walls, poles, or other outdoor surfaces. This mount provides a stable base while allowing for neat cable management through the mounting hardware. The bullet form factor is specifically engineered for visible deterrent placement in perimeter security applications.
What display size or resolution is listed?
It features a display specification of 2 Megapixel, giving you clear visuals for work and media use.
