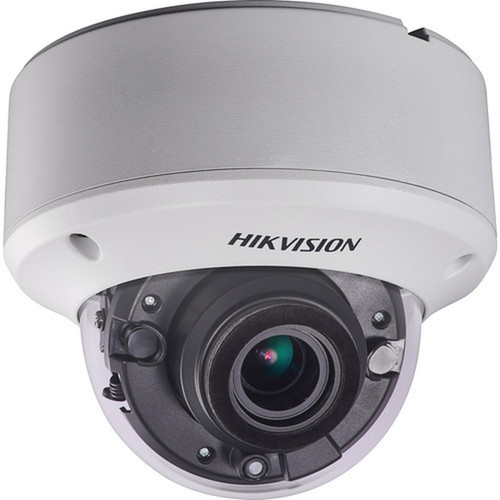

Hikvision DS-2CC52D9T-AVPIT3ZE Turbo HD 2MP Outdoor Dome Camera - 131. 23 ft Night Vision - Varifocal Lens - IP67 IK10 Vandal-Proof
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera captures video at a maximum resolution of 1920 x 1080 pixels with an effective 2-megapixel sensor. The NTSC video signal format ensures compatibility with standard surveillance systems. Advanced imaging features include 3D and 2D digital noise reduction, wide dynamic range, backlight compensation, and defog functionality to maintain image clarity in challenging lighting conditions.
The varifocal lens provides a 4.3x optical zoom range from 2.8 mm to 12 mm, giving installers precise control over the viewing angle. Shutter speeds range from 1/50000 second to 1/30 second, accommodating both bright daylight and low-light scenarios. Motion detection capability enables efficient recording and alert triggering based on activity in the monitored area.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This camera combines high-resolution imaging with exceptional durability for reliable outdoor surveillance. The IP67 rating guarantees protection against dust ingress and temporary immersion in water, while the IK10 impact resistance ensures the housing withstands deliberate vandalism attempts. These certifications make it suitable for high-risk environments where equipment protection is critical.
Extended Night Vision
Infrared illumination provides clear monochrome imaging up to 131.23 feet (40 meters) in complete darkness, ensuring 24/7 monitoring capability without additional lighting.
- Infrared night vision type
- Automatic day/night switching
- Consistent image quality in darkness
Environmental Resilience
Operating temperature range from -40°F to 140°F (-40°C to 60°C) allows deployment in extreme climates, from freezing winters to hot summer conditions.
- Wide temperature tolerance
- Weather-resistant construction
- Reliable performance in harsh conditions
Deployment / Use Cases
This dome camera is ideal for perimeter security, entry points, parking areas, and commercial facilities requiring tamper-resistant surveillance. The vandal-proof design makes it particularly suitable for high-traffic public spaces, retail environments, and industrial sites where equipment protection is a concern. Multiple mounting options provide installation flexibility for various architectural requirements.
Small and medium businesses can deploy this camera for comprehensive security coverage with minimal maintenance. The wired connectivity ensures stable video transmission without wireless interference concerns. Residential applications include driveway monitoring, backyard security, and property perimeter protection where weather resistance and night vision are essential.
Commercial Security
Protect retail stores, office buildings, and warehouses with clear 1080p video evidence and tamper-resistant housing that deters vandalism.
- Vandal-proof dome design
- Clear identification footage
- Low maintenance requirements
Perimeter Monitoring
Monitor property boundaries, gates, and fences with the extended 131-foot night vision range and wide temperature operating capability.
- Long-distance night coverage
- All-weather operation
- Flexible field of view adjustment
Physical Profile
The dome housing measures 4.89 inches in height and 5.72 inches in diameter, presenting a compact profile that blends with architectural elements. Weighing approximately 4.41 pounds, the camera maintains stability once mounted while remaining manageable during installation. The ivory color provides a neutral appearance suitable for various building exteriors without drawing unnecessary attention.
- Height
- 4.89" (124.10 mm)
- Weight
- 4.41 lb (2000 g)
- Length
- 2.8 mm (0.11")
Highlights
- 2-megapixel CMOS sensor delivers Full HD 1080p video at 30 fps
- Infrared night vision covers distances up to 131.23 feet (40 meters)
- Varifocal lens with 4.3x optical zoom (2.8–12 mm) for adjustable field of view
- IP67 waterproof and dustproof rating with IK10 vandal resistance
- Operates in extreme temperatures from -40°F to 140°F (-40°C to 60°C)
- Multiple mounting options: wall, pendant, or ceiling installation
- Dual voltage input: 24 V AC or 12 V DC power compatibility
- Advanced imaging features: defog, motion detection, and wide dynamic range
- Built-in OSD function for on-screen configuration and adjustment
- 3-year limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2CC52D9T-AVPIT3ZE |
| Brand Name | Hikvision |
| Product Line | Turbo HD |
| Product Model | DS-2CC52D9T-AVPIT3ZE |
| Product Name | 2MP Ultra Low-Light PoC Dome Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 131.23 ft (40 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Monochrome,Color |
| Field of View | 32.1° to 98° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Video Signal Format | NTSC |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 2.8 mm (0.11") |
| Maximum Focal Length | 12 mm (0.47") |
| Lens Included | Yes |
| Optical Zoom | 4.3x |
| Exposure | |
| Shortest Shutter Speed | 1/50000 Second |
| Longest Shutter Speed | 1/30 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Power Description | |
| Input Voltage | 24 V AC,12 V DC |
| Power Source Type | AC,DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | Ivory |
| Mount Type | Wall Mount,Pendant Mount,Ceiling Mount |
| Form Factor | Dome |
| Durability | Water Resistant,Dust Resistant,Vandal Proof |
| Height | 4.89" (124.10 mm) |
| Diameter | 5.72" (145.20 mm) |
| Weight (Approximate) | 4.41 lb (2000 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Defog,Motion Detection,Wide Dynamic Range,Back Light Compensation (BLC),Day/Night,Built-in OSD Function,3D Digital Noise Reduction,2D Digital Noise Reduction (2DNR) |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum video resolution of this Hikvision camera?
This camera captures video at a maximum resolution of 1920 x 1080 pixels, which is Full HD quality. It records at 30 frames per second for smooth motion representation, using an effective 2-megapixel CMOS sensor that provides clear, detailed footage suitable for identification purposes in security applications.
How far does the night vision reach on this outdoor dome camera?
The infrared night vision illuminates subjects up to 131.23 feet (40 meters) in complete darkness. This extended range ensures reliable 24/7 monitoring capability for perimeter security, parking areas, and other outdoor spaces where lighting may be limited or unavailable during nighttime hours.
What environmental protections does this camera offer for outdoor installation?
This camera carries an IP67 rating for complete protection against dust ingress and temporary immersion in water up to 1 meter deep. It also features IK10 impact resistance, meaning the housing can withstand impacts of 20 joules, equivalent to a 5 kg mass dropped from 40 cm. These ratings ensure reliable operation in harsh weather conditions and vandal-prone environments.
Can I adjust the field of view after installing this surveillance camera?
Yes, the varifocal lens provides adjustable focal length from 2.8 mm to 12 mm, offering a 4.3x optical zoom range. This allows you to modify the field of view between 32.1° and 98° after installation without changing hardware, providing flexibility to optimize coverage for specific monitoring areas during setup or if surveillance needs change.
What power options are available for this Hikvision dome camera?
The camera accepts dual voltage input: 24 volts alternating current (V AC) or 12 volts direct current (V DC). This flexibility allows integration with various power supplies commonly used in surveillance systems, including standard AC adapters or centralized DC power distribution systems often found in professional security installations.
Where can I mount this dome surveillance camera?
This camera supports wall mounting, pendant mounting, and ceiling mounting, providing installation flexibility for different architectural requirements. The dome form factor offers discreet surveillance with a 360° rotation capability for optimal positioning. The included mounting hardware accommodates various surfaces while maintaining the camera's weather-resistant and vandal-proof integrity.
What display size or resolution is listed?
It features a display specification of 2 Megapixel, giving you clear visuals for work and media use.
