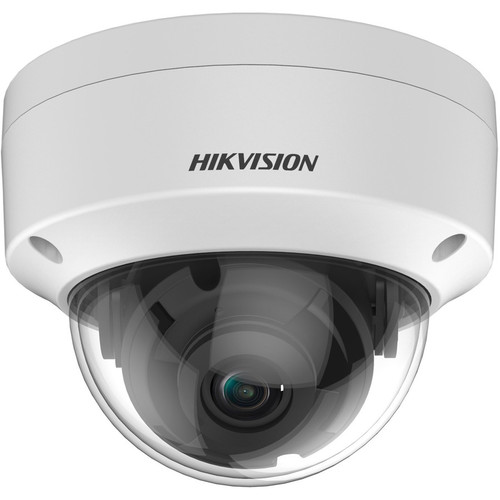

Hikvision DS-2CE57H0T-VPITF 3. 6MM Turbo HD 5MP Outdoor Dome Camera - 2560 x 1944 Resolution - 20m Night Vision - IP67 IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera employs a CMOS sensor that balances power efficiency with high-definition video quality, supporting both color and monochrome output. The Digital Wide Dynamic Range (DWDR) technology compensates for challenging lighting conditions, preserving detail in high-contrast scenes where bright and dark areas coexist.
Video compatibility spans multiple analog HD formats including TVI, AHD, and CVI, alongside standard CVBS, NTSC, and PAL signals. This multi-format support simplifies integration with diverse recording systems and existing infrastructure.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The DS-2CE57H0T-VPITF 3.6MM combines robust environmental protection with flexible deployment options, making it a practical choice for demanding outdoor installations.
Turbo HD Coaxial Efficiency
Leverage existing coaxial cable runs for 5MP HD video transmission, reducing installation time and material costs while upgrading surveillance clarity.
- Eliminates new cable pulls
- Backward compatible with coax infrastructure
EXIR 2.0 Night Performance
Hikvision's proprietary infrared illumination delivers consistent 20-meter night vision coverage, with optimized LED distribution to minimize hotspots and ensure even scene lighting.
- 20m (66 ft) illumination range
- Even lighting distribution
Environmental Durability
IP67 sealing protects against dust and water immersion, while IK10 impact resistance withstands deliberate vandalism attempts, ensuring reliable operation in exposed locations.
- Full dust and water protection
- Vandal-resistant construction
Deployment / Use Cases
This dome camera suits perimeter security, parking lot monitoring, building entry points, and retail exterior surveillance where weather resistance and night vision are critical. Its low-profile dome housing deters tampering and blends with architectural aesthetics.
Multiple mounting options—including wall, ceiling, pendant, pole, and corner installations—provide flexibility for covering corners, overhangs, or elevated vantage points. The fixed 3.6 mm lens offers a balanced field of view for mid-range observation areas like driveways, alleyways, or courtyard spaces.
Retail & Commercial Exteriors
Monitor storefronts, loading docks, and parking areas with 5MP clarity and robust environmental ratings that endure seasonal weather changes.
- License plate capture capable
- Vandal-resistant for public areas
Industrial Perimeter Security
Secure fence lines, gatehouses, and storage yards with extended temperature tolerance and consistent night vision across wide outdoor spaces.
- -40°C to 60°C operation
- 20m IR for large areas
Physical Profile
The compact 4-inch dome housing minimizes visual intrusion while providing full 360-degree mounting flexibility. Weighing just 362.9 grams, it places minimal load on mounting surfaces and simplifies installation on soffits, eaves, or light poles. The fixed lens configuration ensures consistent focus without adjustment, reducing maintenance needs over long deployments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 362.9 g. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 362.9 g
- Length
- 3.6 mm
Highlights
- 5-megapixel CMOS sensor delivers 2560 x 1944 resolution video
- Turbo HD analog transmission over existing coaxial cable
- EXIR 2.0 infrared night vision up to 20 meters (65.62 ft)
- IP67 and IK10 ratings for dust, water, and impact resistance
- Supports TVI, AHD, CVI, CVBS, NTSC, and PAL video formats
- Fixed 3.6 mm lens with balanced field of view
- Digital Wide Dynamic Range (DWDR) for high-contrast scenes
- Operating temperature range from -40°F to 140°F (-40°C to 60°C)
- Wall, ceiling, pendant, pole, and corner mounting options
- 36-month manufacturer limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS2CE57H0TVPITF3.6MM |
| Brand Name | Hikvision |
| Product Line | Turbo HD |
| Product Model | DS-2CE57H0T-VPITF |
| Product Name | 5 MP Outdoor Analog Dome Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 65.62 ft (20 m) |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color,Monochrome |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Maximum Video Resolution | 2560 x 1944 |
| Video Signal Format | NTSC,PAL |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 3.6 mm |
| Network & Communication | |
| Connectivity Technology | Wired |
| Physical Characteristics | |
| Mount Type | Wall Mount,Ceiling Mount,Pendant Mount,Pole Mount,Corner Mount |
| Form Factor | Dome |
| Diameter | 4" (101.60 mm) |
| Weight (Approximate) | 362.9 g |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Indoor/Outdoor | Outdoor |
| Warranty | |
| Limited Warranty | 36 Month |
User Manual
FAQ
What resolution does this Hikvision dome camera provide?
The DS-2CE57H0T-VPITF 3.6MM captures 5-megapixel video at a maximum resolution of 2560 x 1944 pixels. This high-definition output delivers detailed imagery suitable for identifying faces, license plates, and other critical details in surveillance footage.
How does Turbo HD technology work with existing cabling?
Turbo HD transmits high-definition analog video signals over standard coaxial cables already installed in many buildings. This allows you to upgrade to 5MP resolution without replacing existing coaxial runs, saving significant time and material costs during system expansions or retrofits.
What is the night vision range and technology used?
This camera features Hikvision's EXIR 2.0 infrared technology, providing clear monochrome imaging up to 20 meters (approximately 65.62 feet) in total darkness. The optimized LED array ensures even illumination across the scene without hot spots, maintaining consistent image quality throughout the night vision range.
Is this camera suitable for outdoor installation?
Yes, it is designed for outdoor use with an IP67 rating for complete dust protection and water immersion resistance up to 1 meter for 30 minutes. The IK10 impact rating also withstands vandalism attempts, making it reliable for exposed locations like building exteriors, parking lots, and perimeter fences.
What video formats are compatible with this camera?
It supports multiple analog HD formats including TVI, AHD, and CVI, along with standard CVBS, NTSC, and PAL signals. This broad compatibility ensures integration with most existing DVRs and recording systems without requiring format converters or specialized equipment.
What mounting options are available for this dome camera?
The camera supports wall, ceiling, pendant, pole, and corner mounting configurations. This flexibility allows installation on various surfaces and structures to achieve optimal viewing angles for monitoring driveways, entry points, courtyards, or other surveillance areas.
What environmental conditions can this camera withstand?
It operates in temperatures from -40°F to 140°F (-40°C to 60°C) and up to 90% humidity, making it suitable for extreme climates. The robust construction ensures reliable performance in freezing winters, hot summers, and humid conditions without requiring protective enclosures.
